CI: de-flake master (perf gate, fidelity backfill, NetworkManager race, macOS goldens) by shai-almog · Pull Request #6068 · codenameone/CodenameOne

shai-almog · 2026-10-21T05:03:52Z

Master has been red mostly on the ParparVM performance gate, plus a few deterministic or racy failures.

Performance gate

A ratio past the tolerance below the baseline no longer fails a PR. It is reported along with the rebaseline command.
A nightly job now tightens baselines so a win cannot be given back unnoticed. Each gate uploads perf-results-<platform>. The perf-baseline.yml fold job runs vm/selfhost/tighten-perf-baseline.py over master's last seven days of results. A row that at least three runs judged against its current value all beat, by more than half its tolerance (and by the RAM floor), is lowered to the worst of those runs.
A per-row tolerance can only widen the global one. The global tolerance is now 20% for time and 25% for RAM.

Other fixes

NetworkManager: a retry() from a response-code listener could run the same ConnectionRequest on two workers at once, losing the first attempt's trace spans. This was the cause of the intermittent TelemetryTest failure. Separately, NetworkManagerTest and WebServiceProxyCallTest now shut down the workers they reset instead of leaking them.
CommonTransitionsTest: pins the animation clock.
Fidelity: goldens for rows scoped to other platforms (platforms: macos) are no longer reported as missing_actual. That broke every Windows and GNOME run on DesktopSeparator.
macOS: reseeded DesktopWidgetsTheme_{dark,light} and VectorMapShapes. The diffs were the same on every master run: the widgets page moved about 2px, and the map drops one edge label.

Translator RAM ratio (0.43 to ~0.51)
This tracks the workload, not a single commit. The benchmark translates vm/JavaAPI plus the translator itself, and that grew from 341 to 427 source files since the first baseline (the translator's own sources went from 61 to 111). The ratio rose 19% over the same period. Per-arm peak bytes are not recorded in perf-results.json, so this is a correlation, not a proof.

🤖 Generated with Claude Code

…tests - perf gate: an improvement past the baseline is reported, not failed; a row tolerance only widens the policy; policy 20% time / 25% RAM. - fidelity: goldens of rows scoped to other platforms are not missing_actual (DesktopSeparator failed every Windows/GNOME run). - macOS: reseed DesktopWidgetsTheme_{dark,light} and VectorMapShapes. - NetworkManager: never run one ConnectionRequest on two workers (a retry from a response-code listener raced its own attempt); tests stop the workers they reset instead of leaking them. - CommonTransitionsTest: pin the animation clock. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

…ments Improvements no longer fail a pull request, so a win must not be giveable back unnoticed: each gate uploads perf-results-<platform>, and the nightly fold job lowers a row that every one of >=3 master runs in the last seven days beat by more than half its tolerance, to the worst of those runs. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-21T05:04:58Z

@codex review

chatgpt-codex-connector · 2026-10-21T05:05:13Z

Codex Review Summary

This comment shows the latest Codex review activity on this pull request.

Review	Status	Commit	Review trigger
📝 Code Review	✅ Completed 2026-10-21T08:36:48.765975Z	`392c9fb`	Manual request

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review" or "@codex security review".

Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings.

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 78801669bc

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…ldens the spec does not know Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

github-actions · 2026-10-21T05:56:48Z

Flutter vs Codename One

Same application, built both ways: Flutter's AOT compile of the gallery, and the identical Dart source transpiled to Java on Codename One. Lower is better for every metric, so a ratio above 1.00x means Codename One is ahead by that factor.

javascript

9 interleaved rounds; host load 2.43, 1.25, 0.52

Metric	Codename One	Flutter	Ratio	Winner
Installed size	103.8 MB	122.5 MB	1.18x	Codename One
Executable code	12.7 MB	25.2 MB	1.99x	Codename One
Download size (zipped)	76.3 MB	84.1 MB	1.10x	Codename One
Cold start to first frame on screen	--	--	--	not measured
Memory at rest	--	--	--	not measured

Compute -- the VM workloads (vm/benchmarks), run inside each app; time is the best of the app's own repetitions, higher ratio means Codename One is faster.

Workload	Codename One	Flutter	Ratio
intArithmetic	532 ms	wrong result	Flutter: wrong result
longArithmetic	2968 ms	did not run	Flutter: did not run
mathTranscendental	265 ms	did not run	Flutter: did not run
arraySequential	138 ms	60 ms	0.43x
arrayRandom	729 ms	wrong result	Flutter: wrong result
objectAllocation	23 ms	16 ms	0.70x
valueEscape	86 ms	5 ms	0.06x
hashMapChurn	592 ms	159 ms	0.27x
stringBuilding	291 ms	67 ms	0.23x
recursion	292 ms	258 ms	0.88x
quicksortBench	318 ms	wrong result	Flutter: wrong result
Geometric mean			0.31x

Gate: within tolerance against scripts/flutter-bench/baseline; BEHIND FLUTTER on Compute (geomean of the VM workloads) (reported, not gated: a loss to Flutter on the web is currently accepted).

the JavaScript adapter needs a Chrome DevTools driver; sizes are reported and timings are not
This platform's adapter has not been exercised end to end before; treat the first published run as the thing under review.

Codename One wins 3 of 3 measured metrics across 1 platform(s).

shai-almog · 2026-10-21T06:08:20Z

Compared 12 screenshots: 12 matched.
✅ JavaSE simulator integration screenshots matched stored baselines.

github-actions · 2026-10-21T06:08:35Z

Developer Guide build artifacts are available for download from this workflow run:

Developer Guide quality checks:

AsciiDoc linter: No issues found (report)
Vale: No alerts found (report)
Paragraph capitalization: No paragraph capitalization issues (report)
LanguageTool: No grammar matches (report)
Image references: No unused images detected (report)

shai-almog · 2026-10-21T06:10:39Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: da59086d93

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

github-actions · 2026-10-21T06:17:14Z

Cloudflare Preview

URL: https://pr-6068-website-preview.codenameone.pages.dev
Branch: pr-6068-website-preview

shai-almog · 2026-10-21T06:21:00Z

Native fidelity (Android, Material 3)

54 pairs compared -- median 95.6%, worst 91.3% (FlatButton_pressed_dark), 25th pct 94.9%, mean 95.7%.

Distribution -- >=99%: 2 | 95-99%: 37 | 90-95%: 15 | <90%: 0

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	Geometry
FlatButton	pressed	dark	normal	91.3%	0.899	3.10	ok
Tabs	normal	light	normal	92.3%	0.914	3.05	ok
Button	pressed	dark	normal	92.6%	0.949	4.32	ok
FlatButton	normal	dark	normal	93.2%	0.938	2.69	ok
Button	disabled	dark	normal	93.3%	0.928	2.20	ok
Button	pressed	light	normal	93.3%	0.952	3.68	ok
FlatButton	normal	light	normal	93.7%	0.941	2.29	ok
FlatButton	pressed	light	normal	93.8%	0.942	2.56	ok
FloatingActionButton	pressed	light	normal	94.4%	0.927	2.82	OFF (h 0.88)
RadioButton	normal	dark	normal	94.5%	0.963	2.19	ok
RadioButton	normal	light	normal	94.7%	0.964	1.85	ok
CheckBox	selected	dark	normal	94.7%	0.950	2.60	ok
RadioButton	selected	dark	normal	94.8%	0.963	2.42	ok
CheckBox	normal	dark	normal	94.9%	0.952	2.69	ok

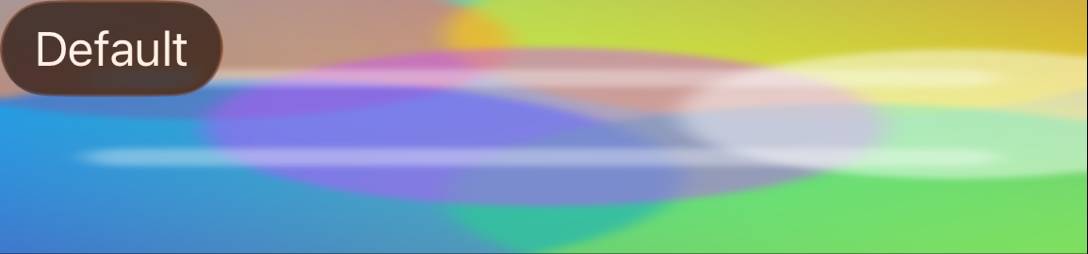

Button	normal	dark	normal	94.9%	0.949	3.16	ok
CheckBox	normal	light	normal	95.0%	0.953	2.30	ok

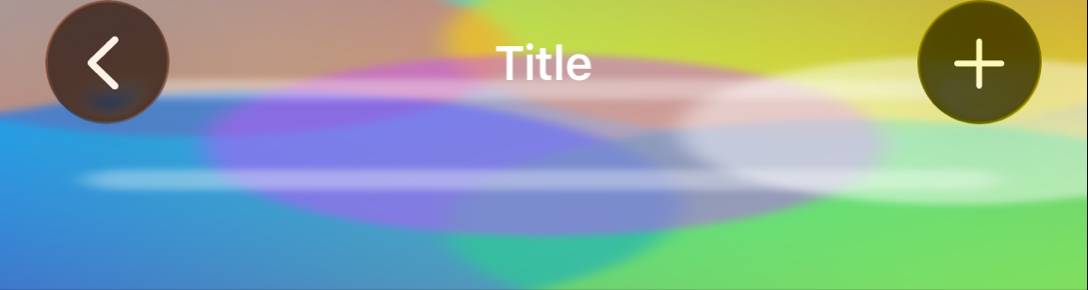

Toolbar	normal	dark	normal	95.1%	0.906	1.60	ok
RaisedButton	pressed	dark	normal	95.2%	0.950	2.39	ok
CheckBox	disabled	dark	normal	95.2%	0.954	1.47	ok
CheckBox	disabled	light	normal	95.2%	0.956	1.34	ok

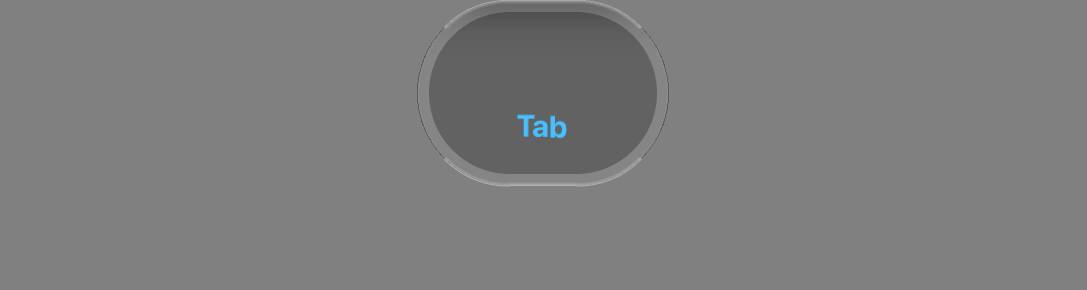

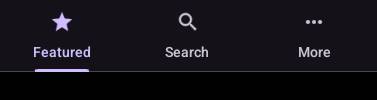

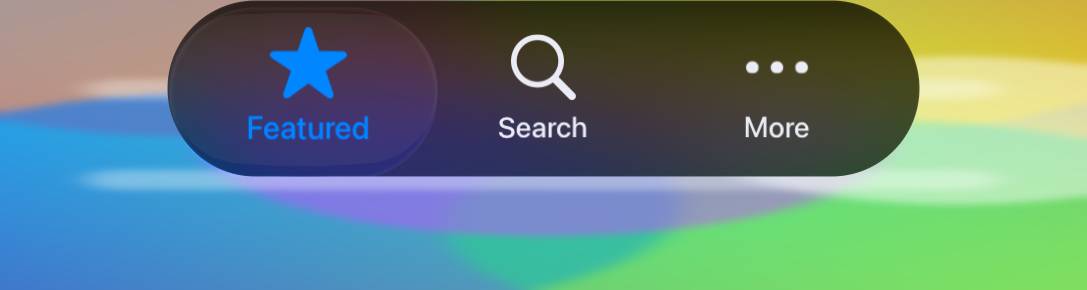

Tabs	normal	dark	normal	95.2%	0.913	3.65	ok
RadioButton	disabled	dark	normal	95.3%	0.963	1.18	ok

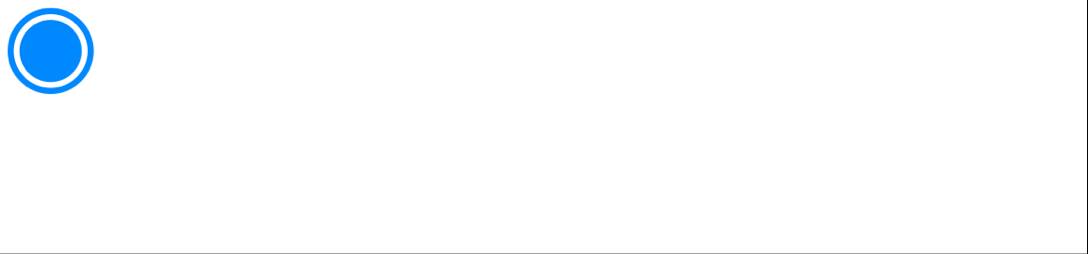

RadioButton	selected	light	normal	95.3%	0.964	1.84	ok

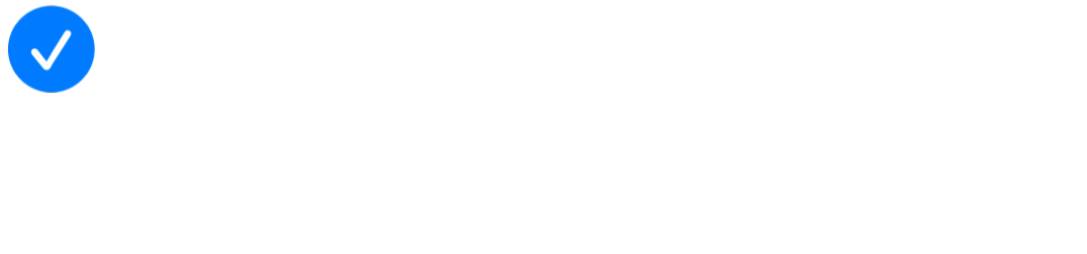

CheckBox	selected	light	normal	95.4%	0.952	2.06	ok

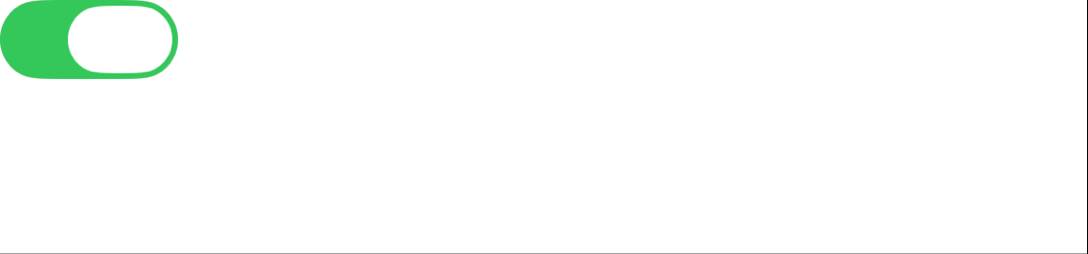

Switch	selected	light	normal	95.4%	0.966	1.59	ok

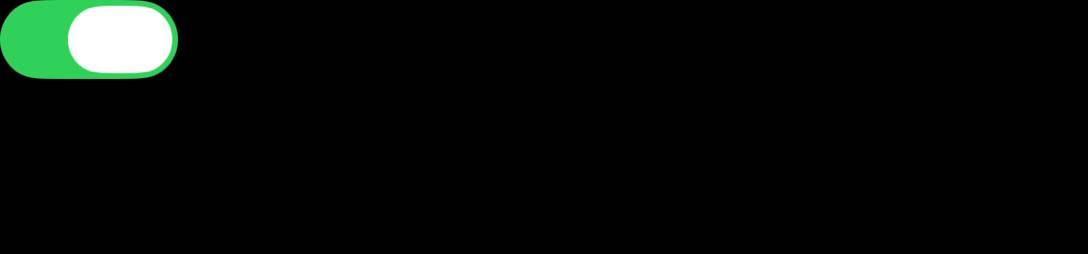

Switch	selected	dark	normal	95.5%	0.966	1.86	ok

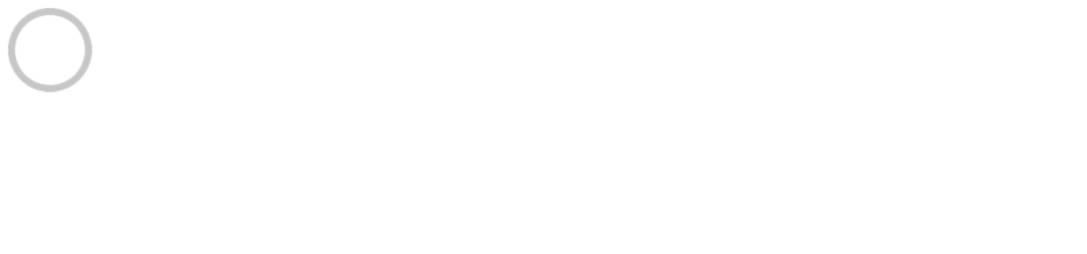

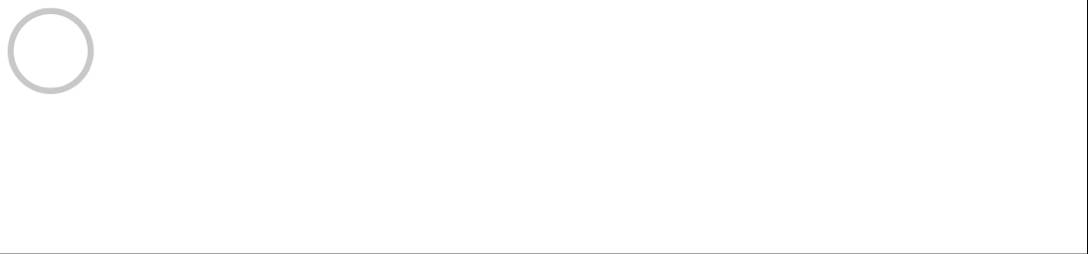

RadioButton	disabled	light	normal	95.5%	0.966	1.08	ok
Switch	disabled	dark	normal	95.6%	0.961	0.85	ok

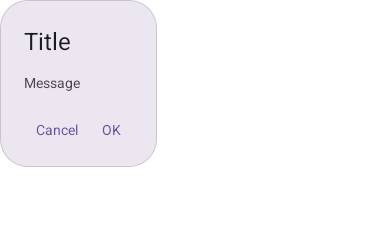

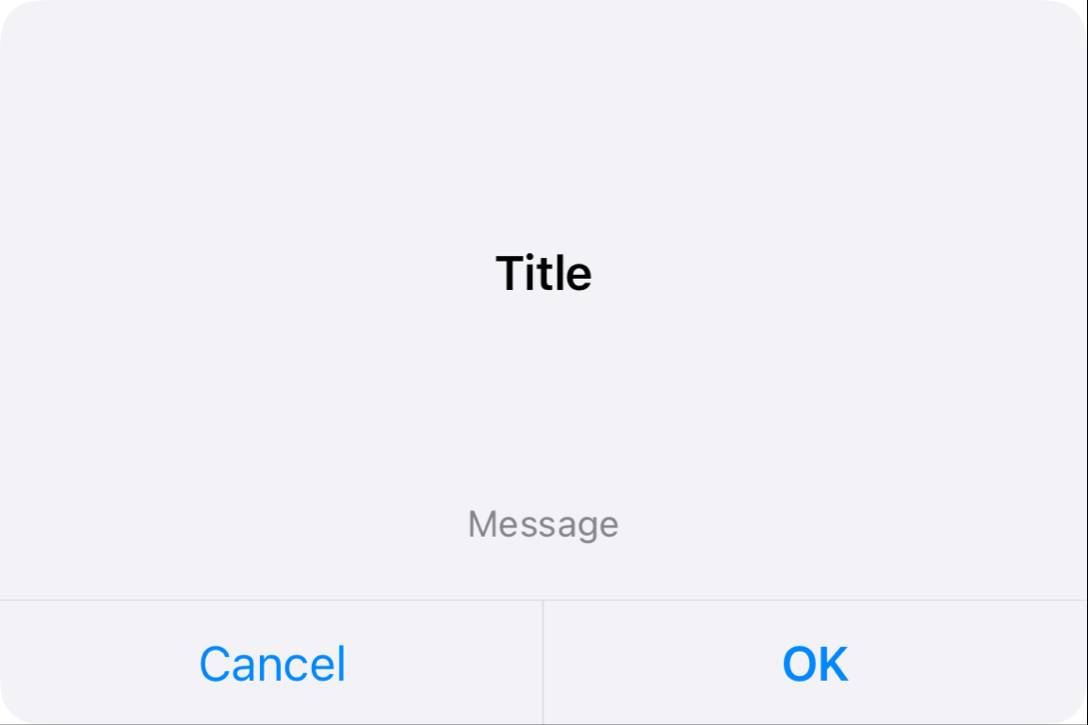

Dialog	normal	light	normal	95.7%	0.930	2.30	ok

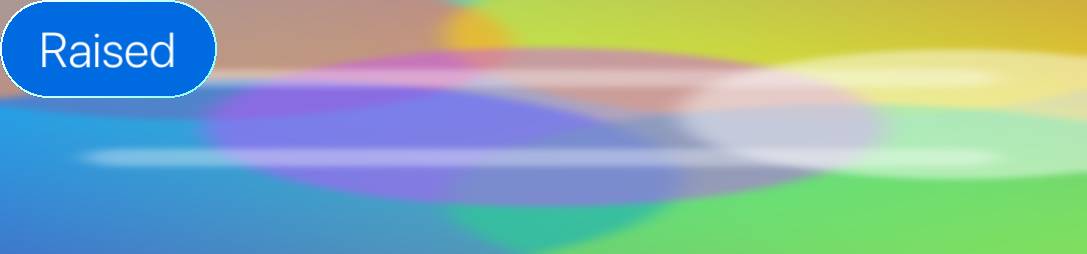

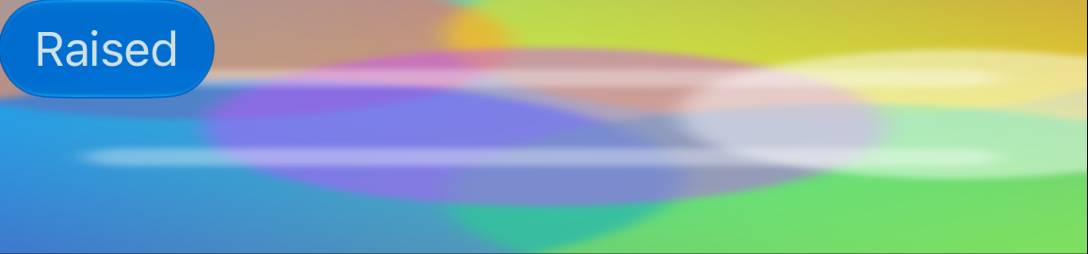

RaisedButton	pressed	light	normal	95.8%	0.958	2.16	ok

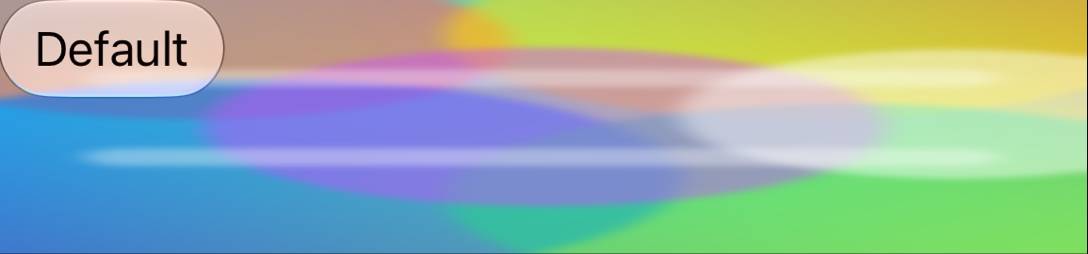

Button	normal	light	normal	95.8%	0.953	2.46	ok

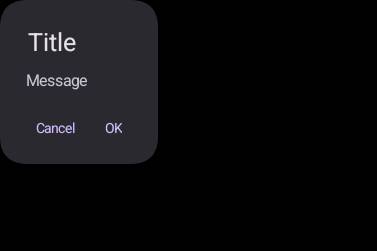

Dialog	normal	dark	normal	95.8%	0.932	2.30	ok
Switch	normal	light	normal	96.0%	0.961	1.45	ok
FloatingActionButton	normal	light	normal	96.1%	0.937	1.14	ok
FloatingActionButton	pressed	dark	normal	96.2%	0.951	2.45	ok
Switch	normal	dark	normal	96.2%	0.962	1.39	ok
TextField	disabled	dark	normal	96.2%	0.965	0.76	ok
RaisedButton	normal	dark	normal	96.4%	0.952	1.78	ok

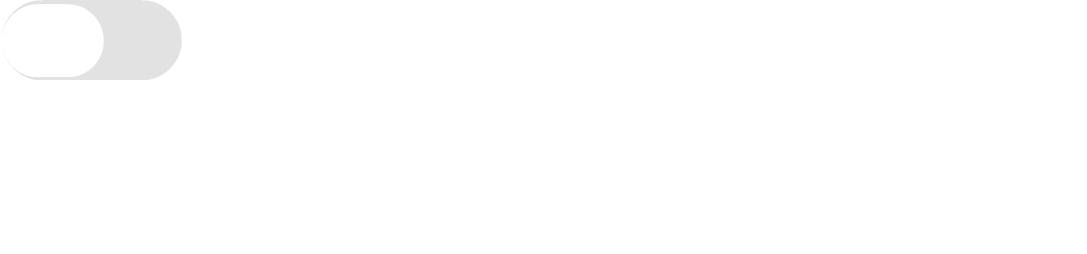

Switch	disabled	light	normal	96.4%	0.970	0.61	ok

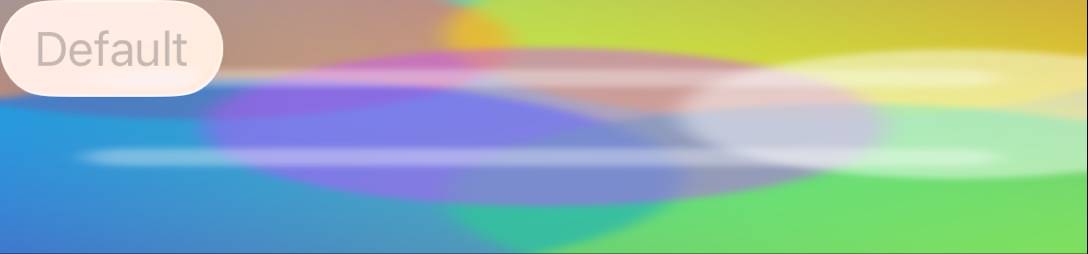

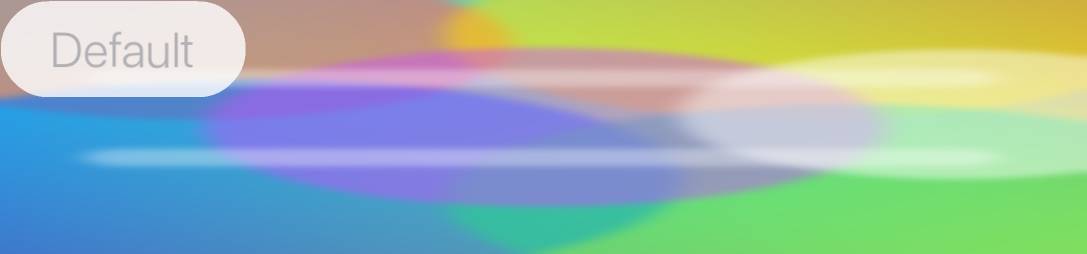

Button	disabled	light	normal	96.8%	0.960	1.06	ok

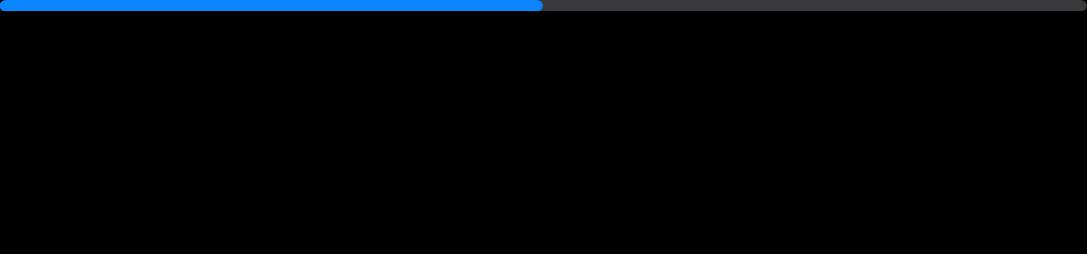

ProgressBar	normal	dark	normal	96.9%	0.967	2.03	OFF (h 1.50)

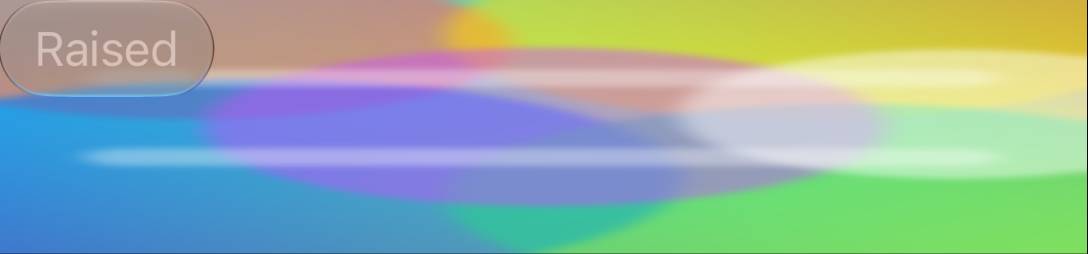

RaisedButton	disabled	dark	normal	97.0%	0.955	0.89	ok
FloatingActionButton	normal	dark	normal	97.1%	0.952	1.43	ok

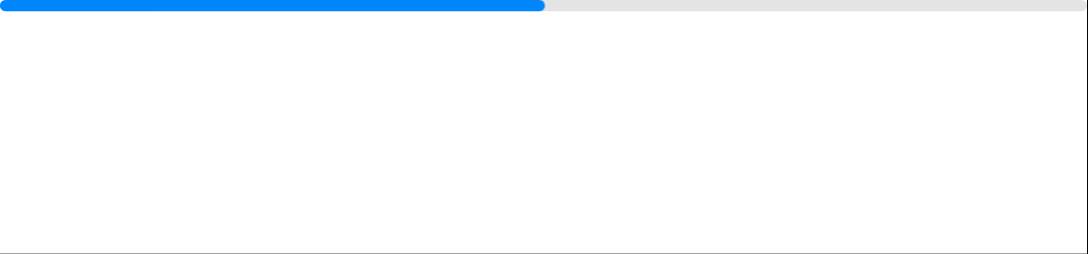

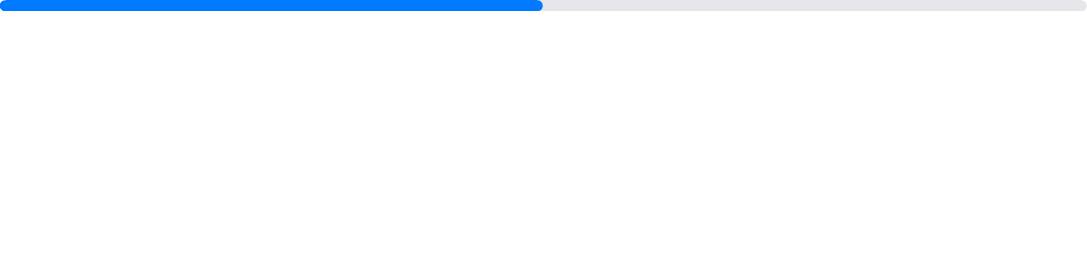

ProgressBar	normal	light	normal	97.3%	0.974	1.53	OFF (h 1.50)

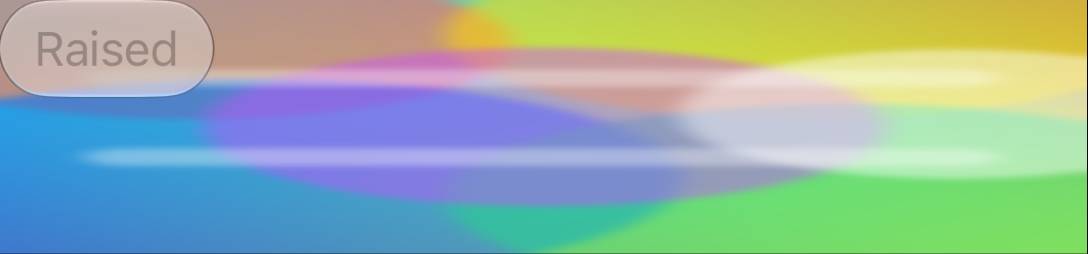

RaisedButton	disabled	light	normal	97.3%	0.961	0.79	ok

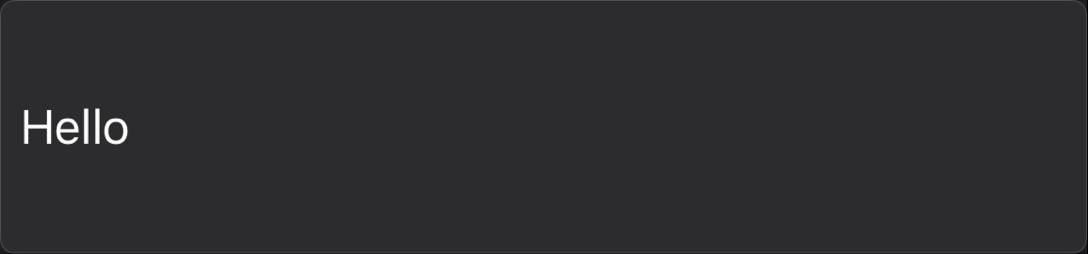

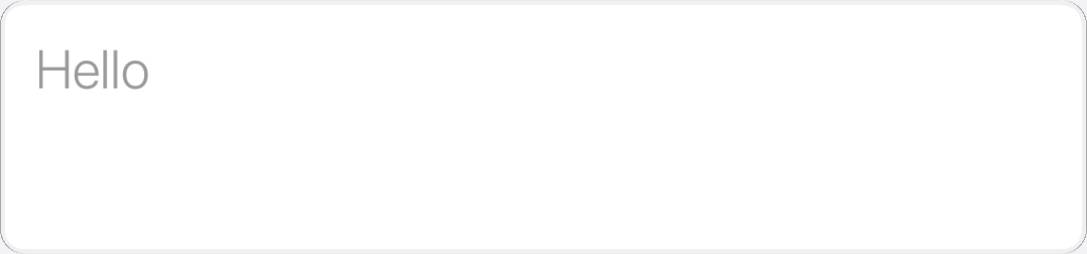

TextField	disabled	light	normal	97.3%	0.965	0.79	ok

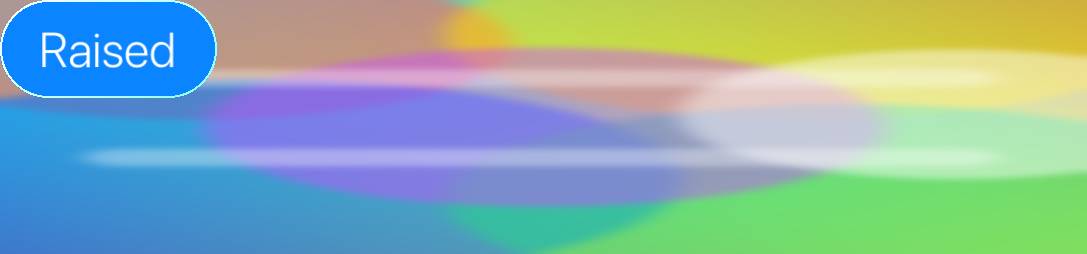

RaisedButton	normal	light	normal	97.3%	0.961	1.40	ok

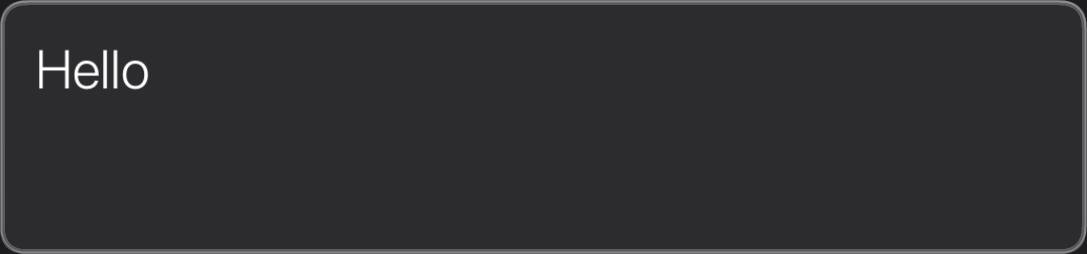

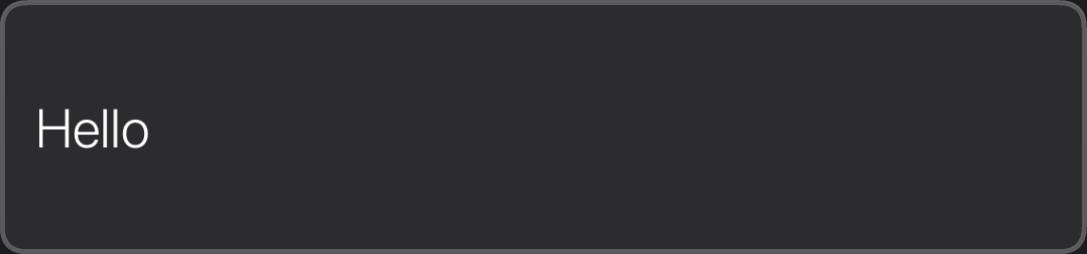

TextField	normal	dark	normal	97.6%	0.958	1.83	ok

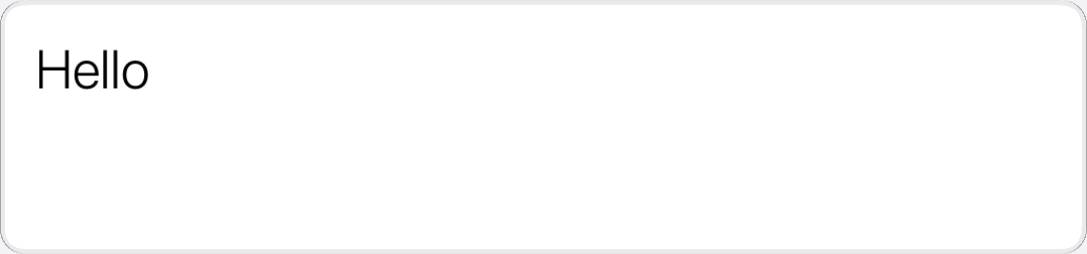

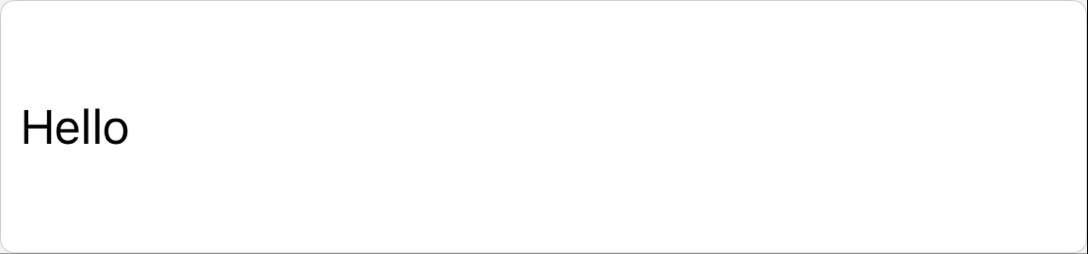

TextField	normal	light	normal	97.6%	0.958	1.63	ok

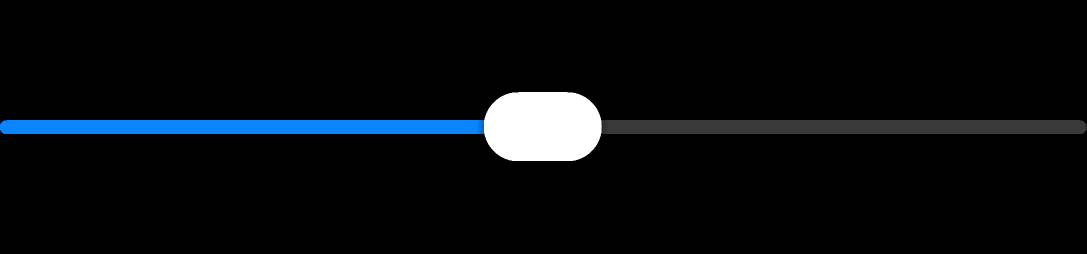

Slider	normal	dark	normal	98.4%	0.990	0.87	ok

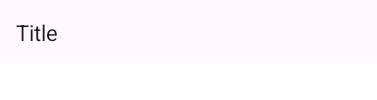

Toolbar	normal	light	normal	98.7%	0.974	1.28	ok

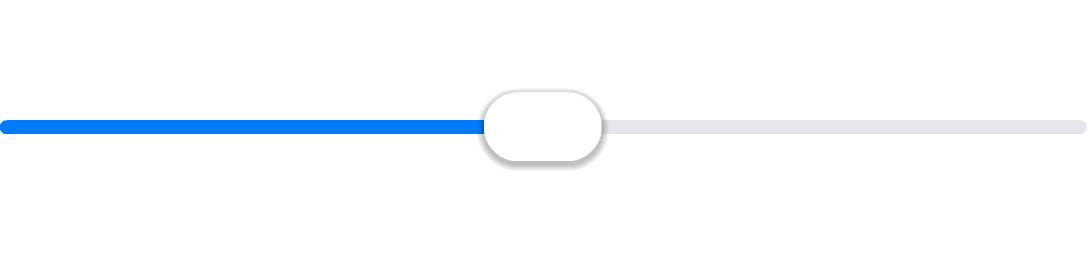

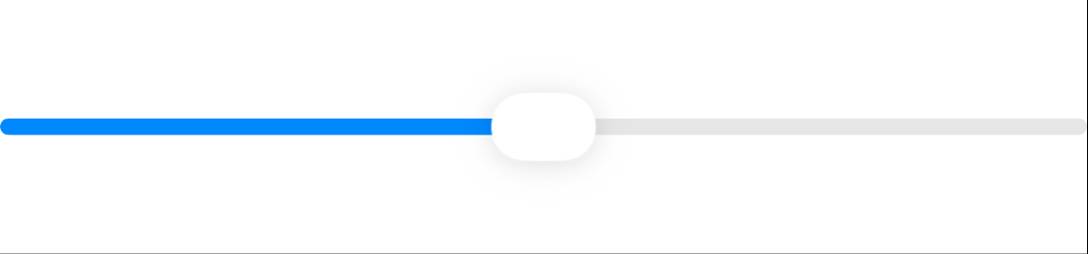

Slider	normal	light	normal	99.0%	0.991	0.47	ok

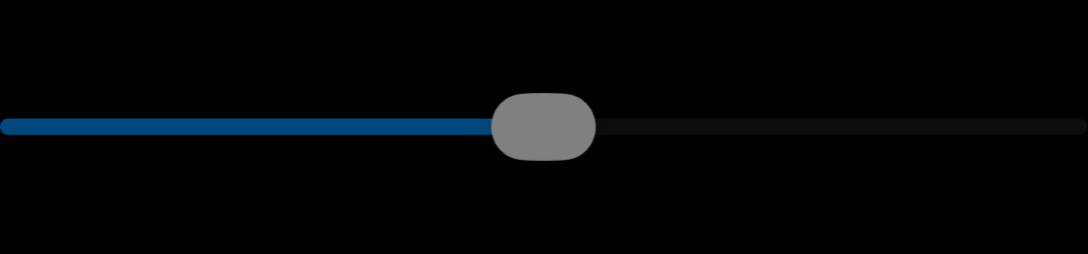

Slider	disabled	dark	normal	99.6%	0.993	0.22	ok

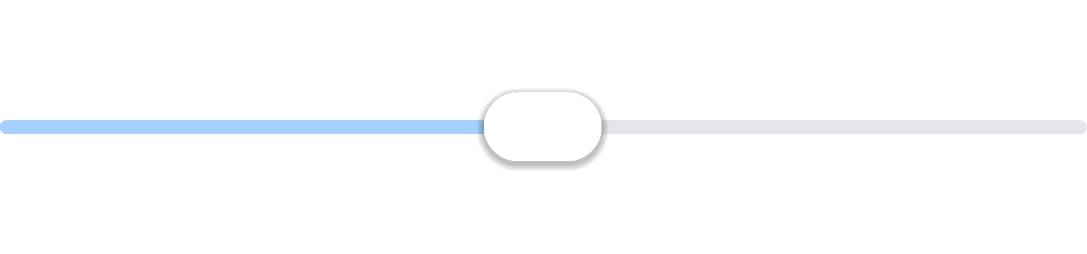

Slider	disabled	light	normal	99.6%	0.993	0.18	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
FloatingActionButton	pressed	light	+0,+0	0.929	0.881	4.0	-
FloatingActionButton	normal	light	+0,+0	0.946	0.912	2.9	-
Button	pressed	dark	+0,+0	0.947	0.975	2.6	-
Button	disabled	dark	+0,+0	0.947	0.975	2.6	-
Button	pressed	light	+0,+0	0.947	0.975	2.6	-
Button	normal	dark	+0,+0	0.947	0.975	2.6	-
RaisedButton	pressed	dark	+0,+0	0.945	0.975	2.6	-
RaisedButton	pressed	light	+0,+0	0.945	0.975	2.6	-

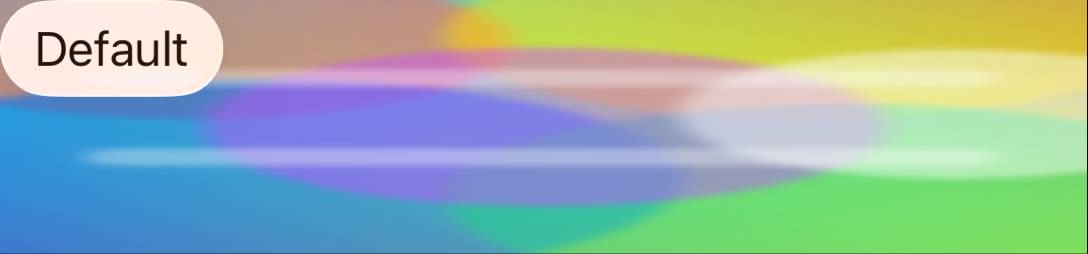

Button	normal	light	+0,+0	0.947	0.975	2.6	-
RaisedButton	normal	dark	+0,+0	0.945	0.975	2.6	-
Button	disabled	light	+0,+0	0.947	0.975	2.6	-
RaisedButton	disabled	dark	+0,+0	0.945	0.975	2.6	-
RaisedButton	disabled	light	+0,+0	0.945	0.975	2.6	-
RaisedButton	normal	light	+0,+0	0.945	0.975	2.6	-
RadioButton	normal	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	normal	light	+1,+1	1.029	1.000	2.2	-
RadioButton	selected	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	disabled	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	selected	light	+1,+1	1.029	1.000	2.2	-
Switch	selected	light	+0,+0	1.080	1.063	2.2	-
RadioButton	disabled	light	+1,+1	1.029	1.000	2.2	-
CheckBox	selected	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	normal	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	normal	light	+1,+1	1.013	1.000	1.8	-
CheckBox	disabled	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	disabled	light	+1,+1	1.013	1.000	1.8	-
CheckBox	selected	light	+1,+1	1.013	1.000	1.8	-
Switch	selected	dark	+0,+0	1.060	1.031	1.6	-
Switch	disabled	dark	+0,-1	1.060	1.031	1.6	-
Dialog	normal	light	+0,+0	1.007	0.982	1.6	-

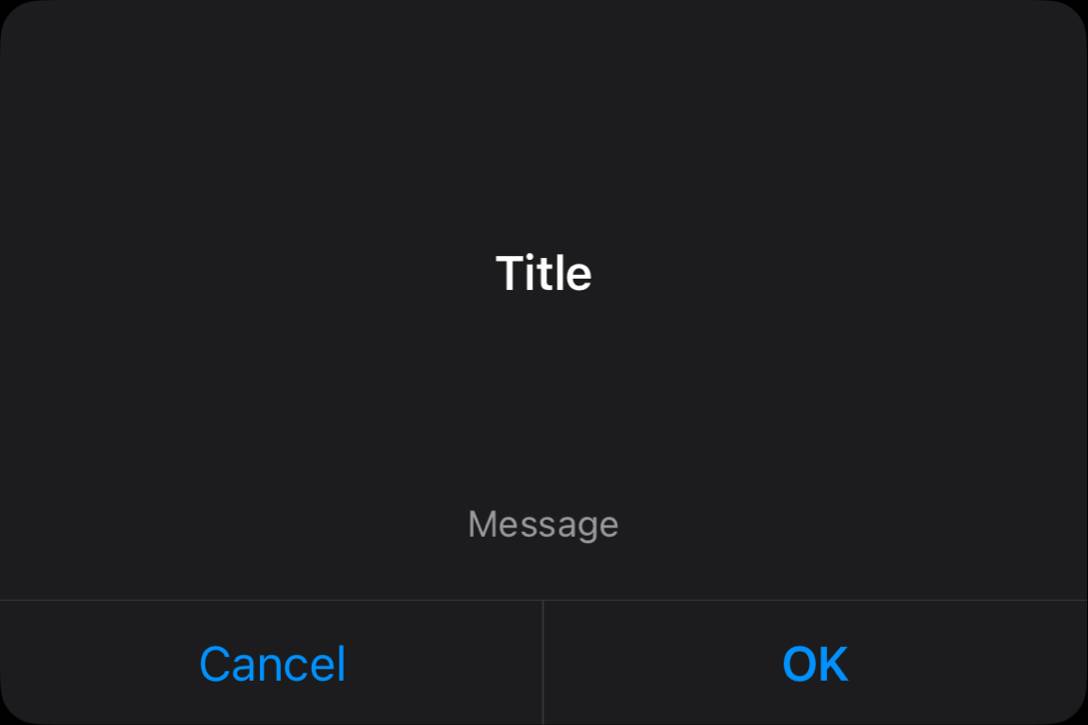

Dialog	normal	dark	+0,+0	1.007	0.982	1.6	-

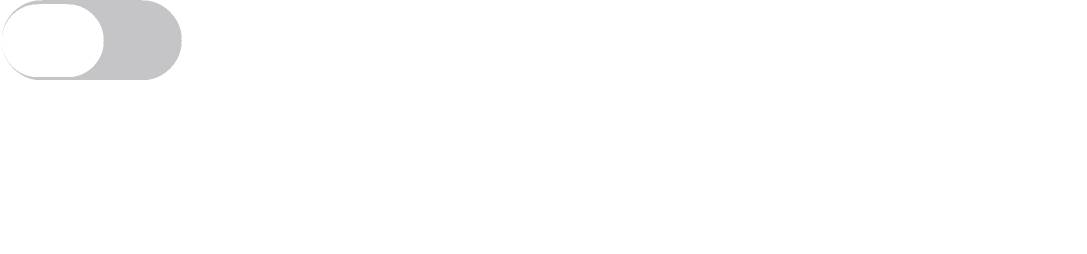

Switch	normal	light	+0,-1	1.060	1.031	1.6	-
Switch	normal	dark	+0,-1	1.060	1.031	1.6	-
Switch	disabled	light	+0,-1	1.060	1.031	1.6	-
FloatingActionButton	pressed	dark	+0,+0	0.963	0.963	1.4	-
FloatingActionButton	normal	dark	+0,+0	0.963	0.963	1.4	-

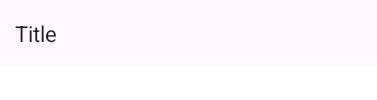

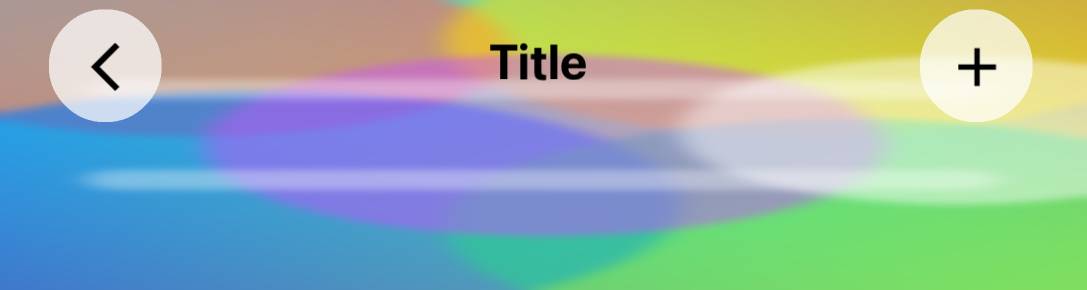

Toolbar	normal	light	-1,+1	1.000	1.000	1.4	-
FlatButton	pressed	dark	+0,+0	0.977	0.975	1.1	-
FlatButton	normal	dark	+0,+0	0.977	0.975	1.1	-
FlatButton	normal	light	+0,+0	0.977	0.975	1.1	-
FlatButton	pressed	light	+0,+0	0.977	0.975	1.1	-
TextField	normal	dark	+0,+0	1.015	1.036	1.1	-

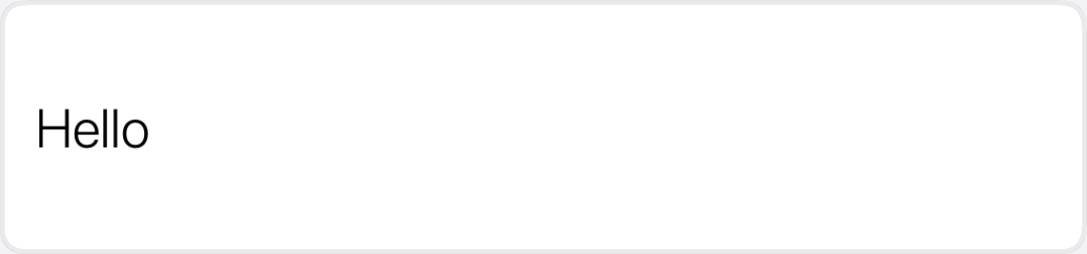

TextField	normal	light	+0,+0	1.015	1.036	1.1	-

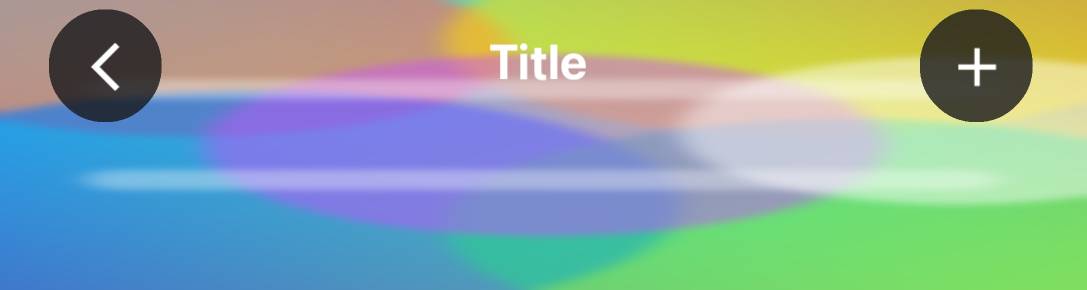

Toolbar	normal	dark	+0,+0	1.000	1.032	1.0	-

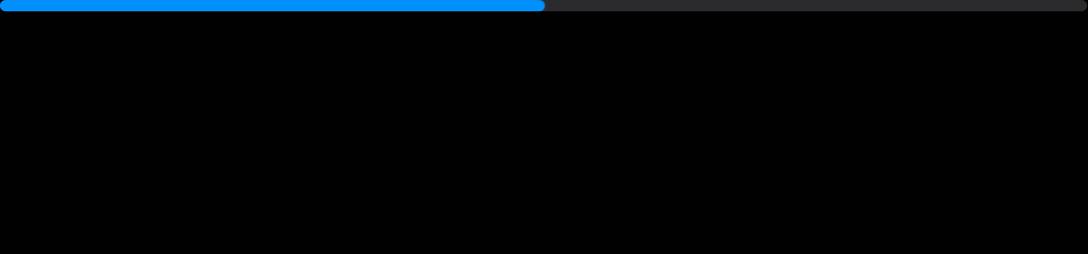

ProgressBar	normal	dark	+0,+0	1.000	1.500	1.0	-
ProgressBar	normal	light	+0,+0	1.000	1.500	1.0	-
TextField	disabled	dark	+0,+0	1.015	1.018	0.7	-
TextField	disabled	light	+0,+0	1.015	1.018	0.7	-

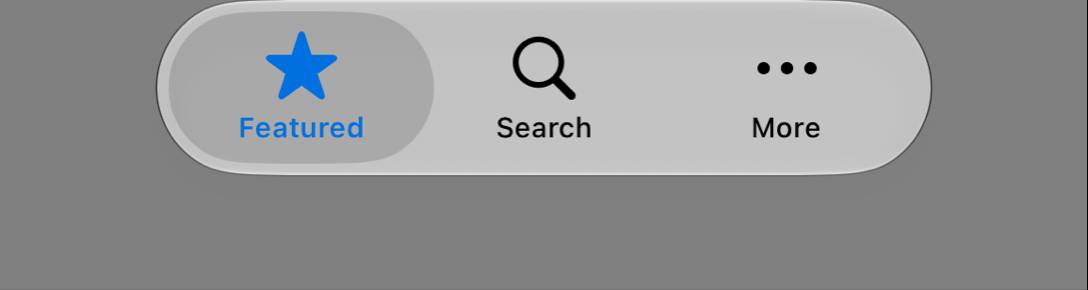

Tabs	normal	light	+0,+1	1.000	0.984	0.5	-
Slider	normal	dark	+1,+0	0.996	1.000	0.5	-
Slider	normal	light	+1,+0	0.996	1.000	0.5	-

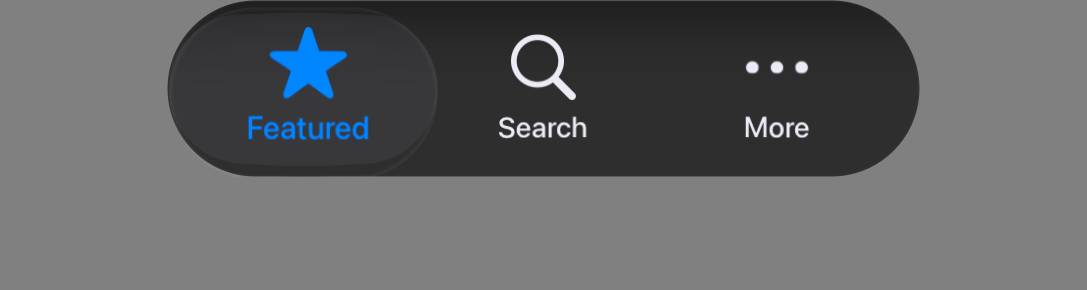

Tabs	normal	dark	+0,+0	1.000	1.000	0.0	-
Slider	disabled	dark	+0,+0	1.000	1.000	0.0	-

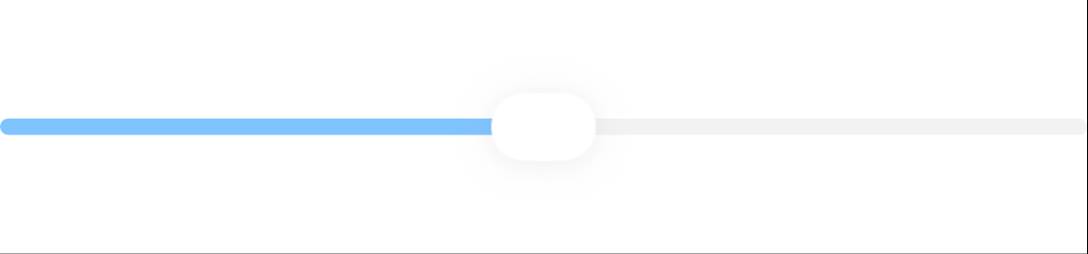

Slider	disabled	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

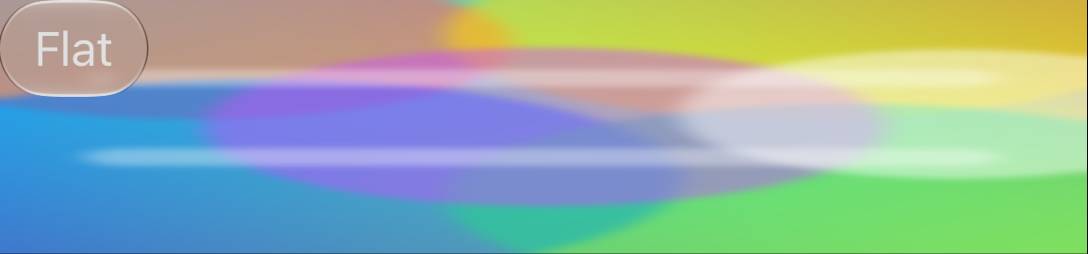

FlatButton_pressed_dark -- 91.25% fidelity (SSIM 0.8985) (no change)

Left: native widget. Right: Codename One render.

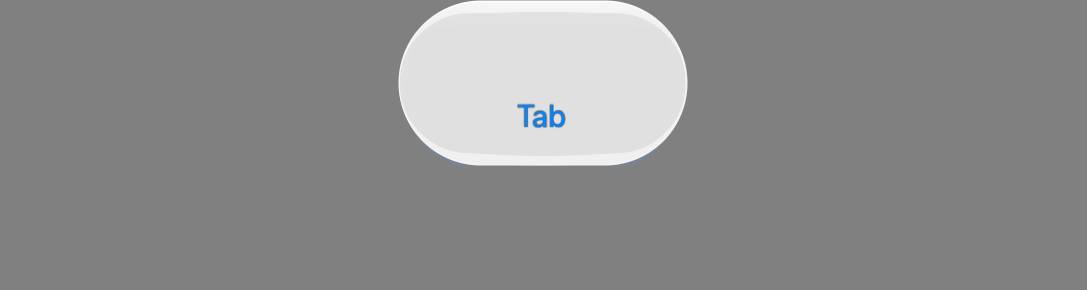

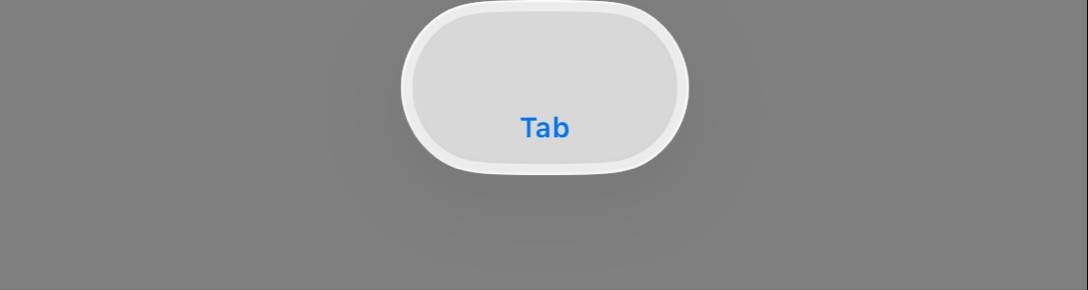

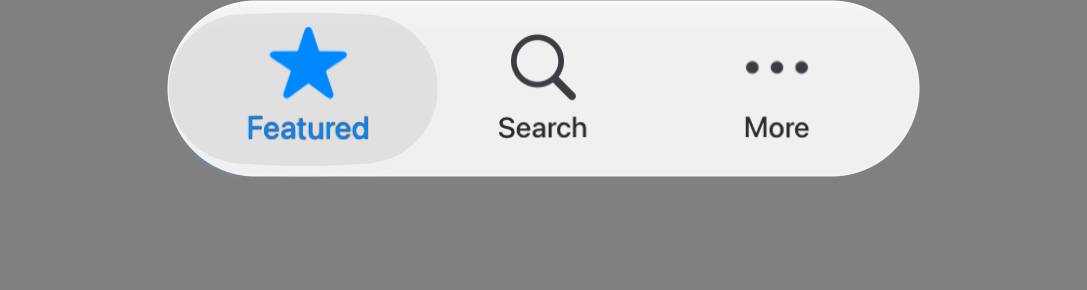

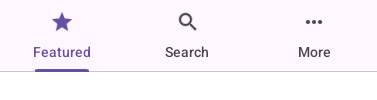

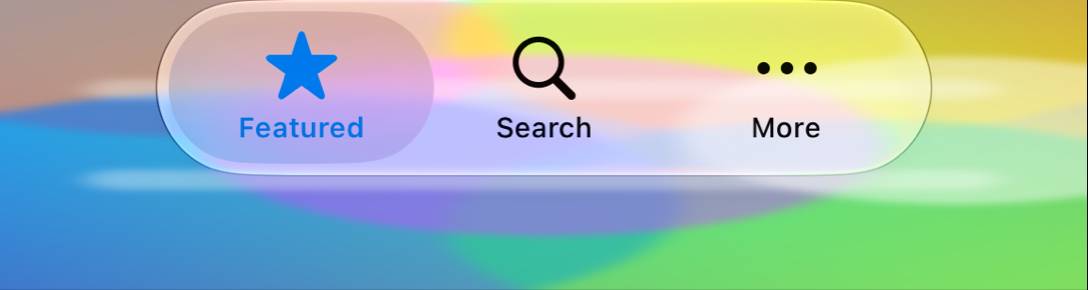

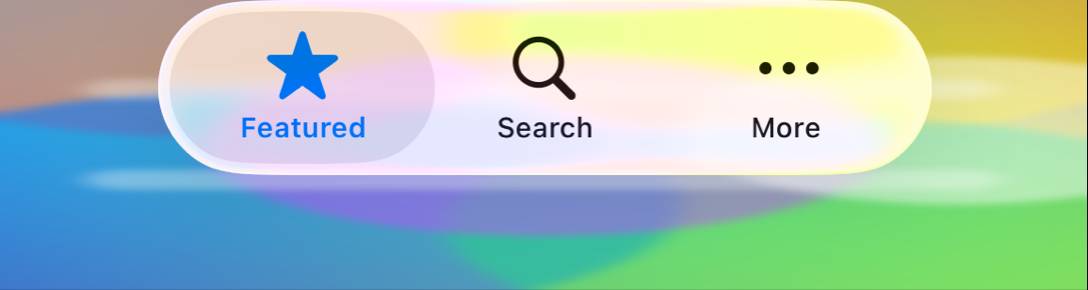

Tabs_normal_light -- 92.28% fidelity (SSIM 0.9140) (no change)

Left: native widget. Right: Codename One render.

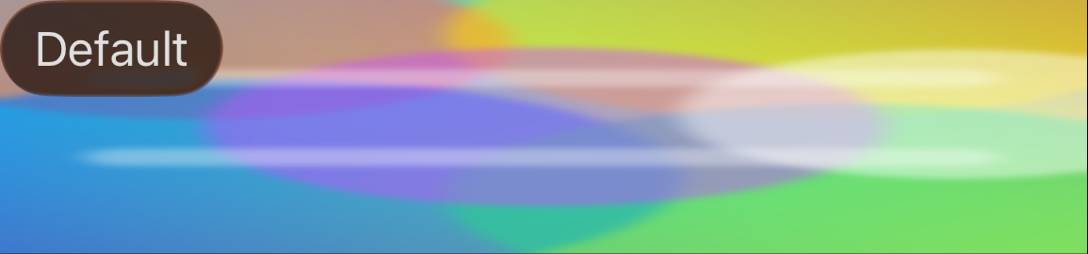

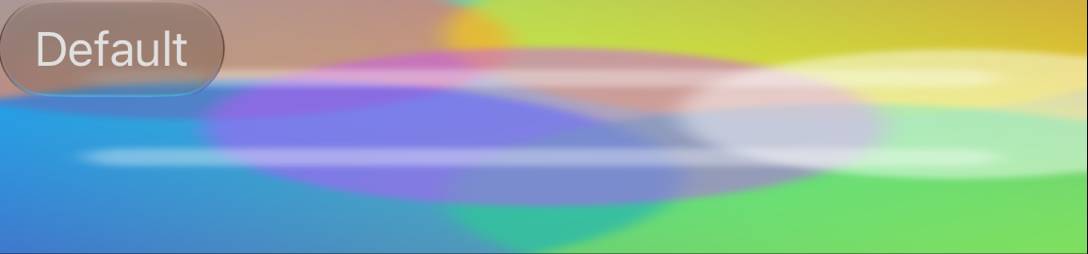

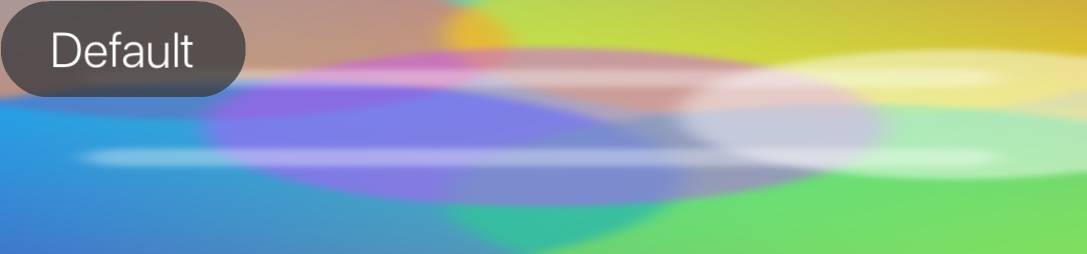

Button_pressed_dark -- 92.61% fidelity (SSIM 0.9485) (no change)

Left: native widget. Right: Codename One render.

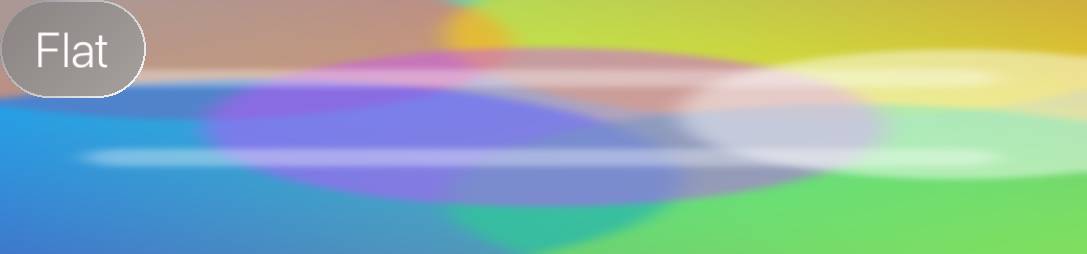

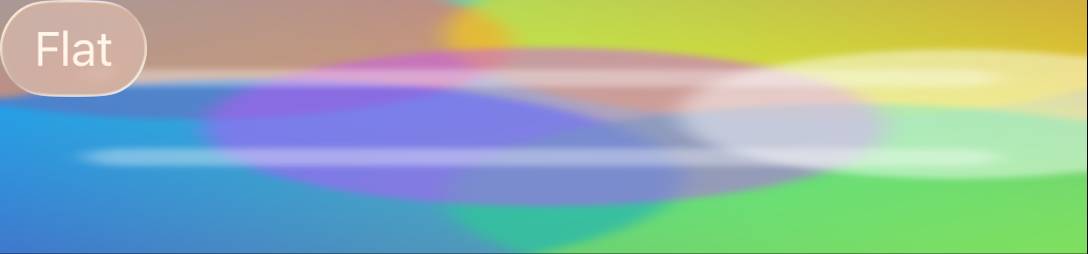

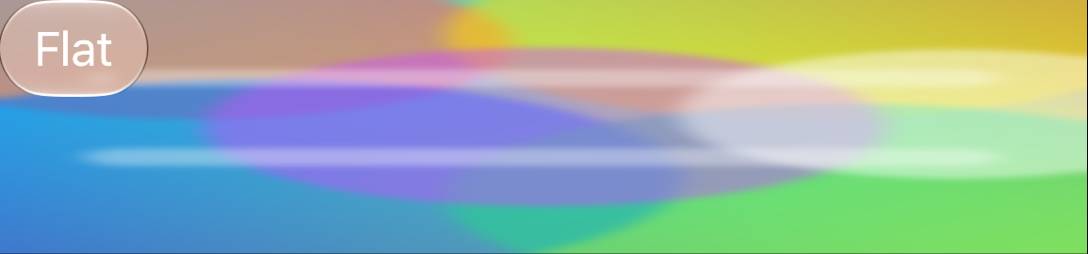

FlatButton_normal_dark -- 93.24% fidelity (SSIM 0.9381) (no change)

Left: native widget. Right: Codename One render.

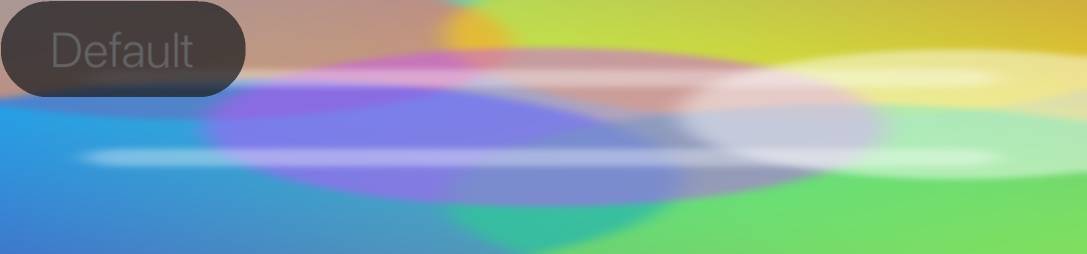

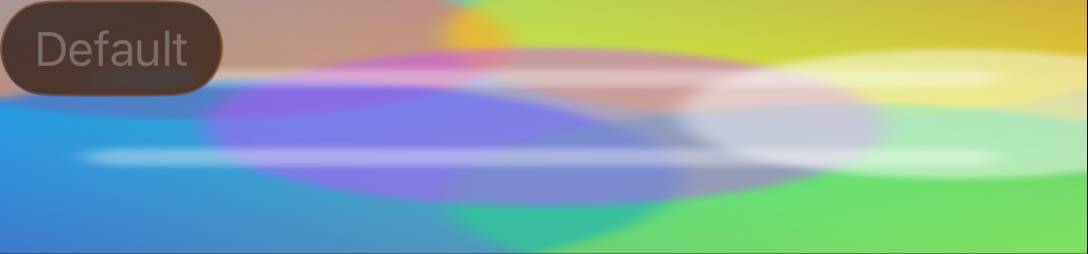

Button_disabled_dark -- 93.26% fidelity (SSIM 0.9278) (no change)

Left: native widget. Right: Codename One render.

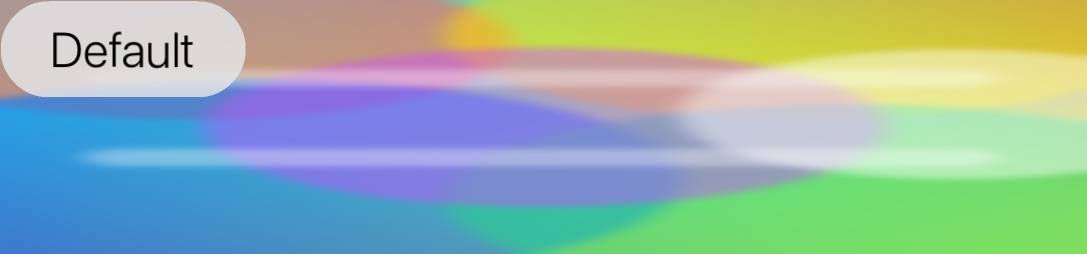

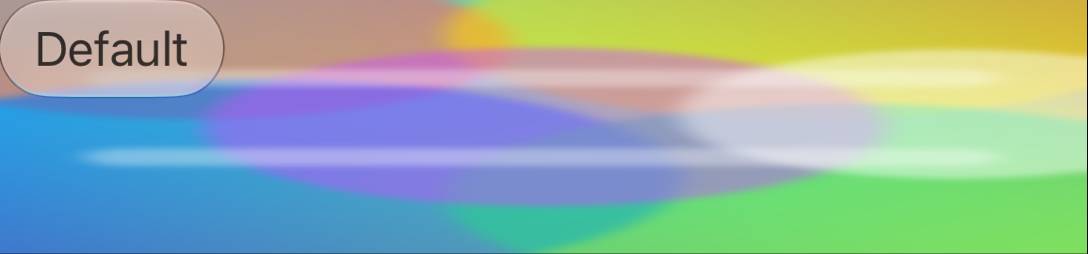

Button_pressed_light -- 93.34% fidelity (SSIM 0.9521) (no change)

Left: native widget. Right: Codename One render.

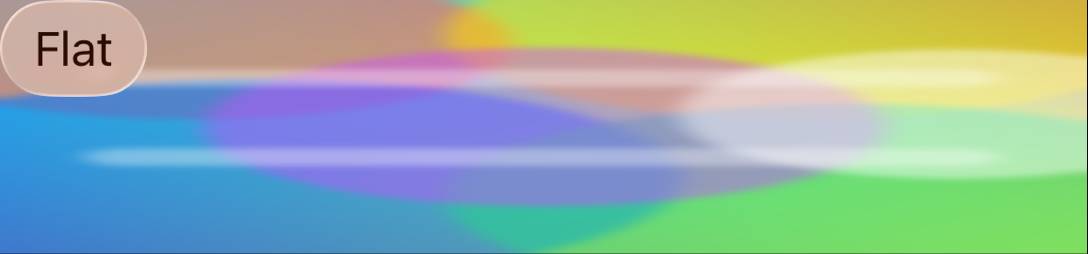

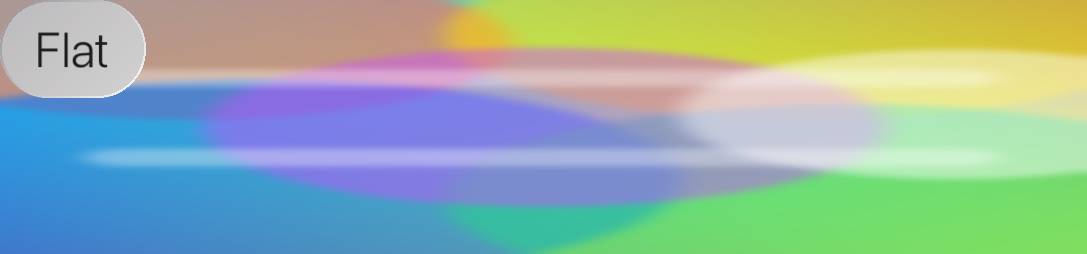

FlatButton_normal_light -- 93.72% fidelity (SSIM 0.9410) (no change)

Left: native widget. Right: Codename One render.

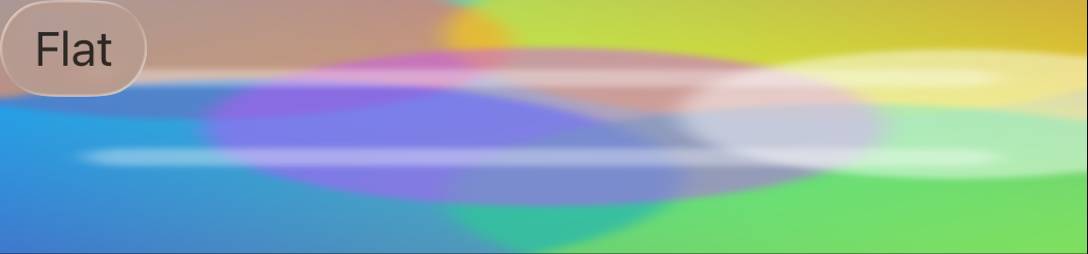

FlatButton_pressed_light -- 93.77% fidelity (SSIM 0.9424) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_pressed_light -- 94.44% fidelity (SSIM 0.9273) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 94.46% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.

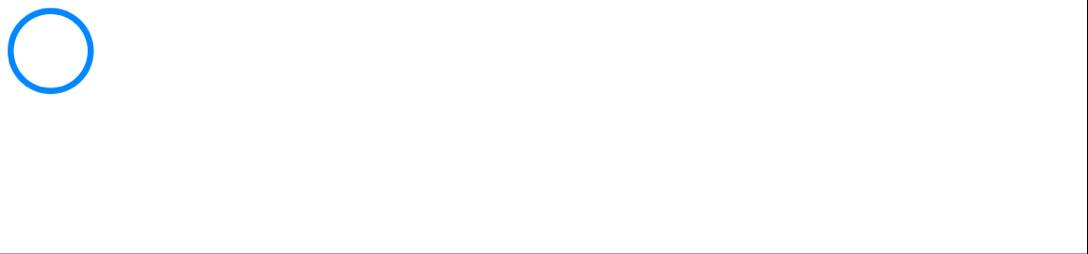

RadioButton_normal_light -- 94.69% fidelity (SSIM 0.9643) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 94.71% fidelity (SSIM 0.9502) (no change)

Left: native widget. Right: Codename One render.

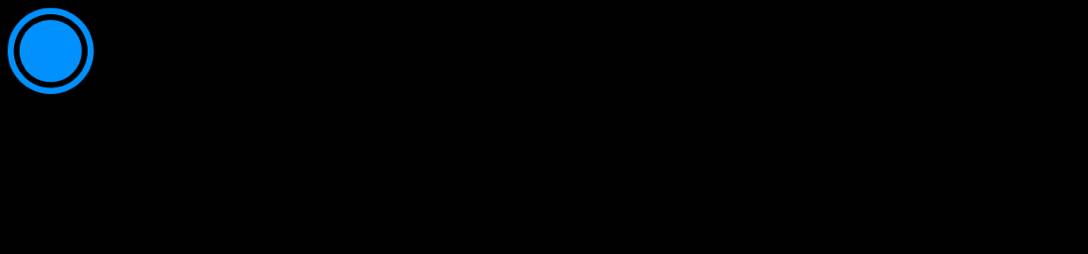

RadioButton_selected_dark -- 94.79% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.

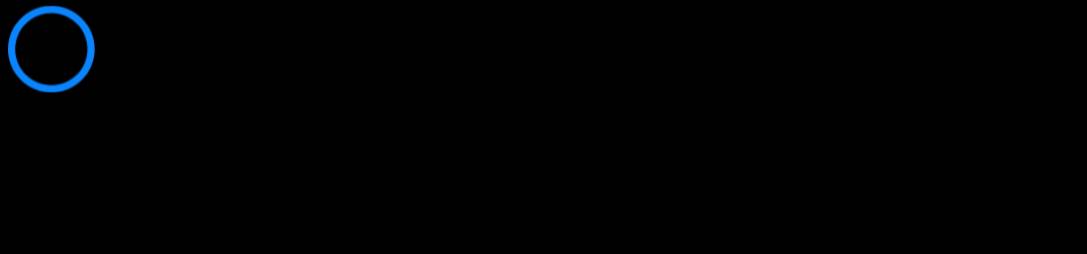

CheckBox_normal_dark -- 94.93% fidelity (SSIM 0.9516) (no change)

Left: native widget. Right: Codename One render.

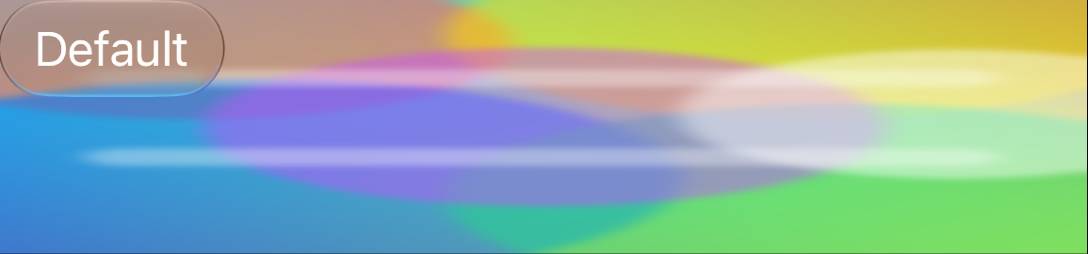

Button_normal_dark -- 94.94% fidelity (SSIM 0.9491) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 95.03% fidelity (SSIM 0.9531) (no change)

Left: native widget. Right: Codename One render.

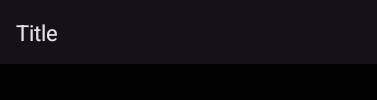

Toolbar_normal_dark -- 95.07% fidelity (SSIM 0.9059) (no change)

Left: native widget. Right: Codename One render.

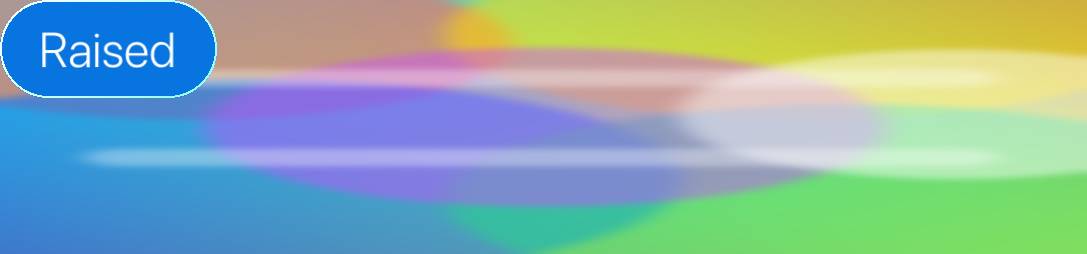

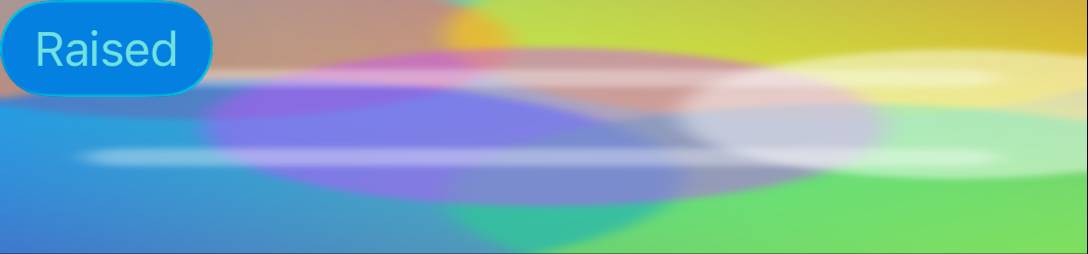

RaisedButton_pressed_dark -- 95.19% fidelity (SSIM 0.9501) (no change)

Left: native widget. Right: Codename One render.

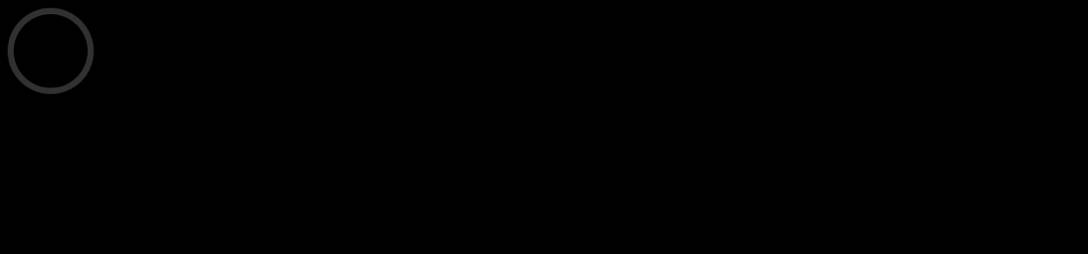

CheckBox_disabled_dark -- 95.20% fidelity (SSIM 0.9538) (no change)

Left: native widget. Right: Codename One render.

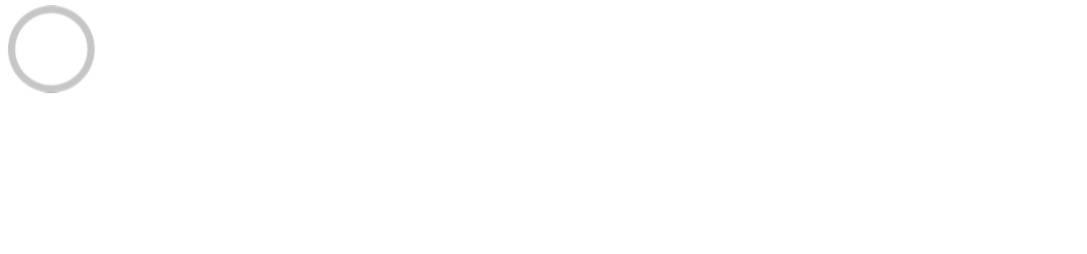

CheckBox_disabled_light -- 95.21% fidelity (SSIM 0.9562) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_dark -- 95.23% fidelity (SSIM 0.9125) (no change)

Left: native widget. Right: Codename One render.

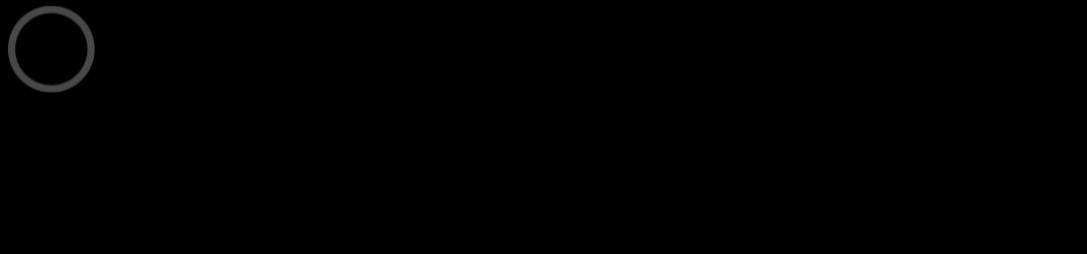

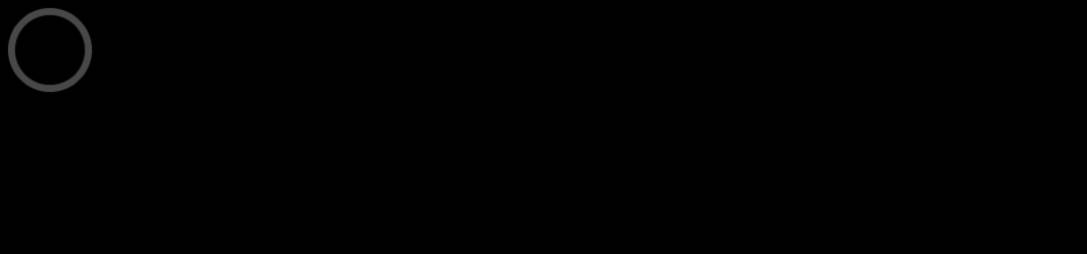

RadioButton_disabled_dark -- 95.29% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 95.33% fidelity (SSIM 0.9642) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_light -- 95.37% fidelity (SSIM 0.9524) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_light -- 95.37% fidelity (SSIM 0.9658) (no change)

Left: native widget. Right: Codename One render.

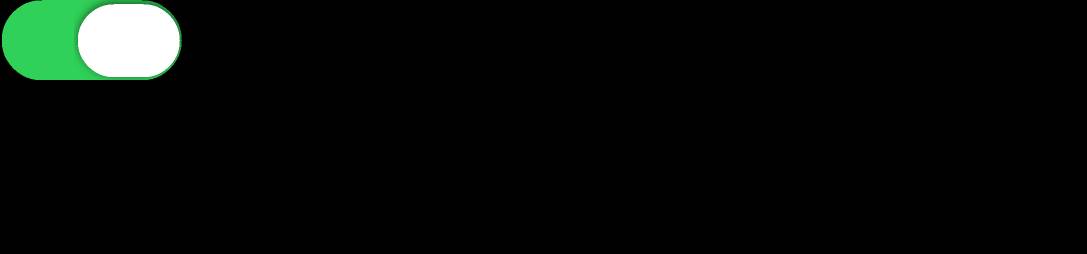

Switch_selected_dark -- 95.45% fidelity (SSIM 0.9656) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 95.46% fidelity (SSIM 0.9657) (no change)

Left: native widget. Right: Codename One render.

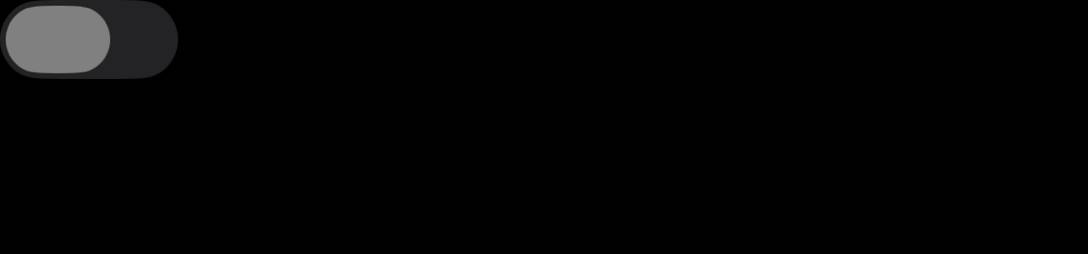

Switch_disabled_dark -- 95.57% fidelity (SSIM 0.9613) (no change)

Left: native widget. Right: Codename One render.

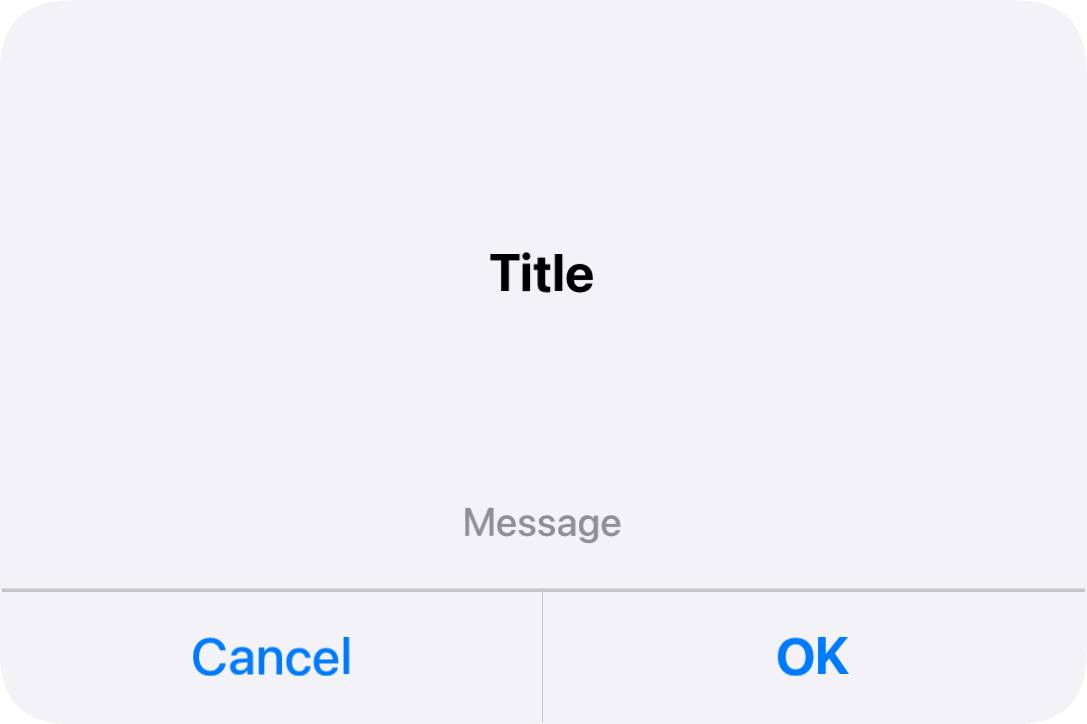

Dialog_normal_light -- 95.65% fidelity (SSIM 0.9300) (no change)

Left: native widget. Right: Codename One render.

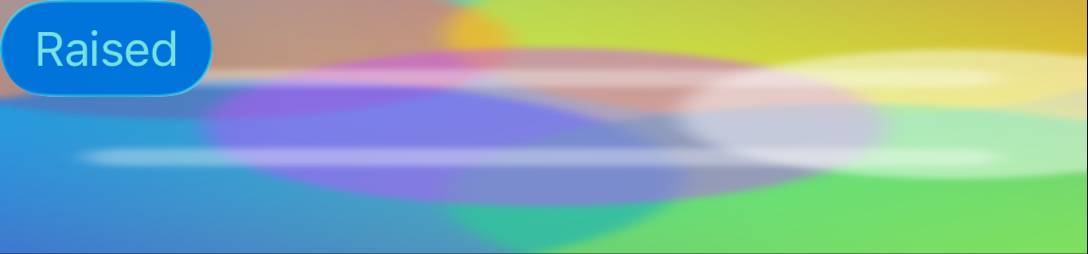

RaisedButton_pressed_light -- 95.78% fidelity (SSIM 0.9578) (no change)

Left: native widget. Right: Codename One render.

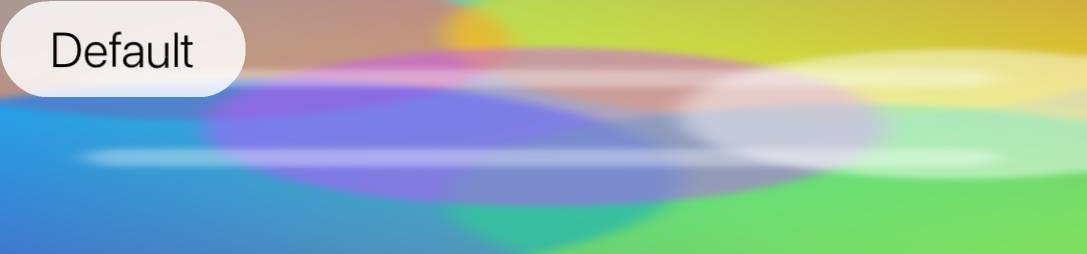

Button_normal_light -- 95.79% fidelity (SSIM 0.9528) (no change)

Left: native widget. Right: Codename One render.

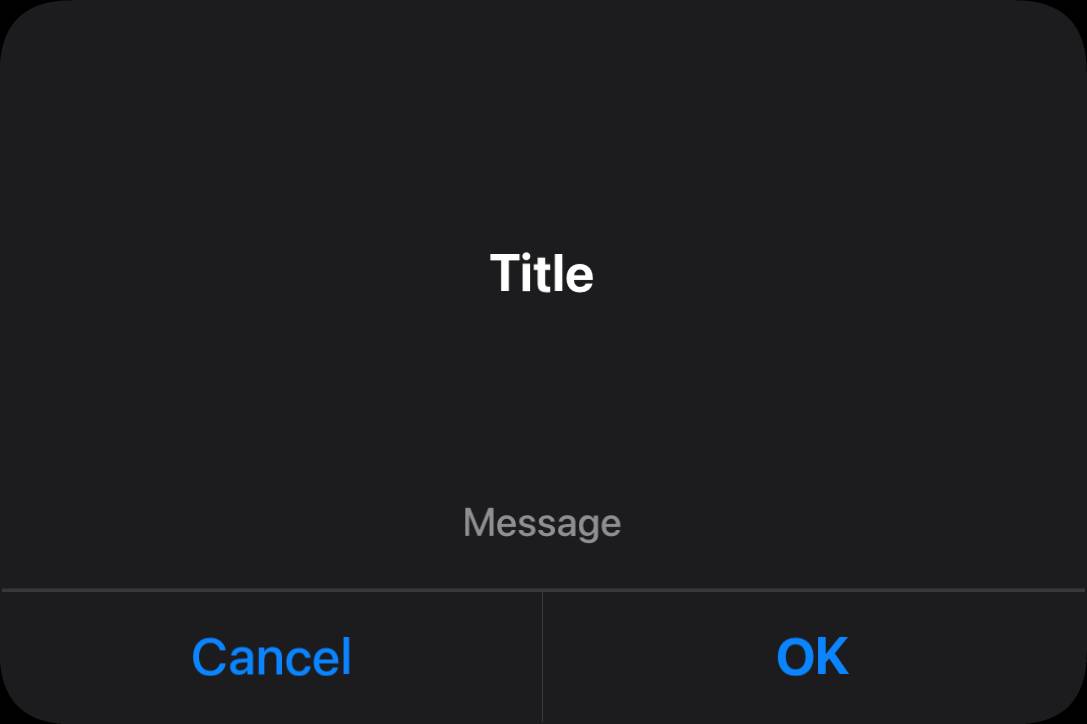

Dialog_normal_dark -- 95.79% fidelity (SSIM 0.9322) (no change)

Left: native widget. Right: Codename One render.

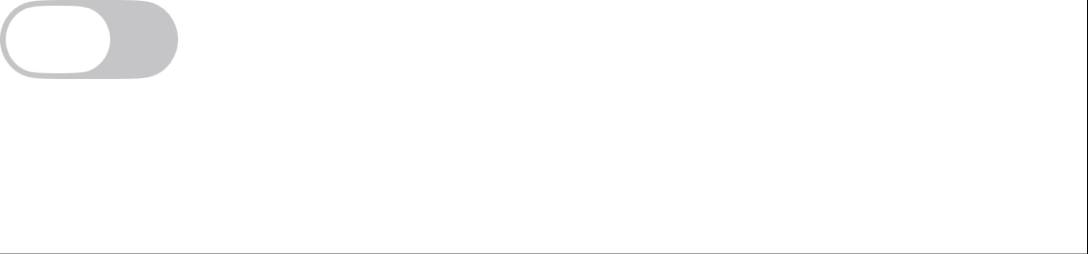

Switch_normal_light -- 95.97% fidelity (SSIM 0.9612) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_normal_light -- 96.09% fidelity (SSIM 0.9367) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_pressed_dark -- 96.16% fidelity (SSIM 0.9513) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.17% fidelity (SSIM 0.9616) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 96.21% fidelity (SSIM 0.9648) (no change)

Left: native widget. Right: Codename One render.

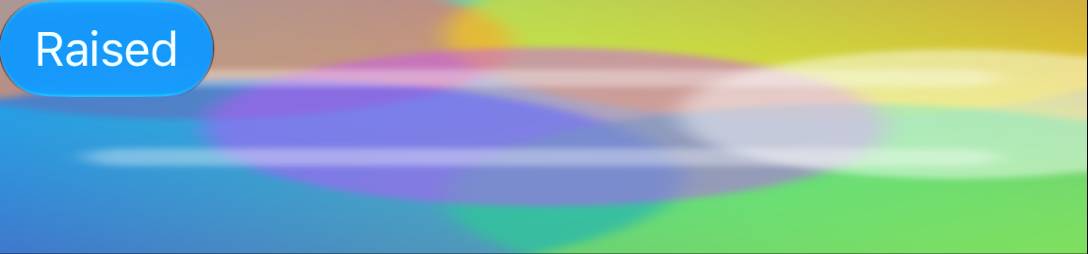

RaisedButton_normal_dark -- 96.41% fidelity (SSIM 0.9516) (no change)

Left: native widget. Right: Codename One render.

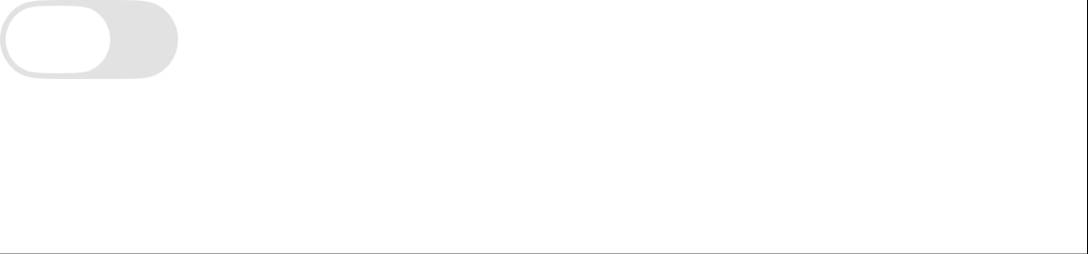

Switch_disabled_light -- 96.43% fidelity (SSIM 0.9698) (no change)

Left: native widget. Right: Codename One render.
Button_disabled_light -- 96.80% fidelity (SSIM 0.9596) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_dark -- 96.91% fidelity (SSIM 0.9669) (no change)

Left: native widget. Right: Codename One render.

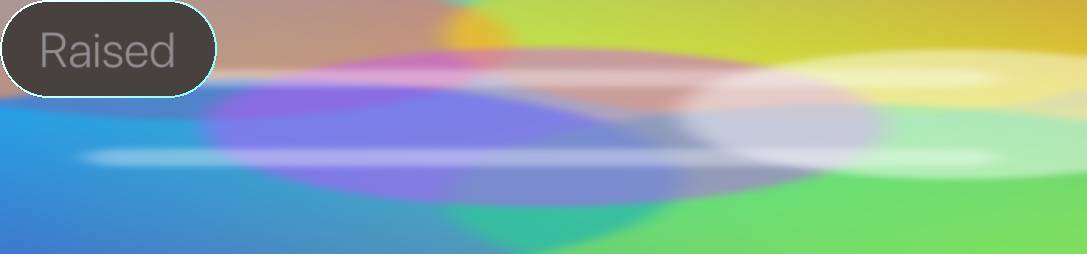

RaisedButton_disabled_dark -- 97.02% fidelity (SSIM 0.9549) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_normal_dark -- 97.07% fidelity (SSIM 0.9521) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.26% fidelity (SSIM 0.9739) (no change)

Left: native widget. Right: Codename One render.

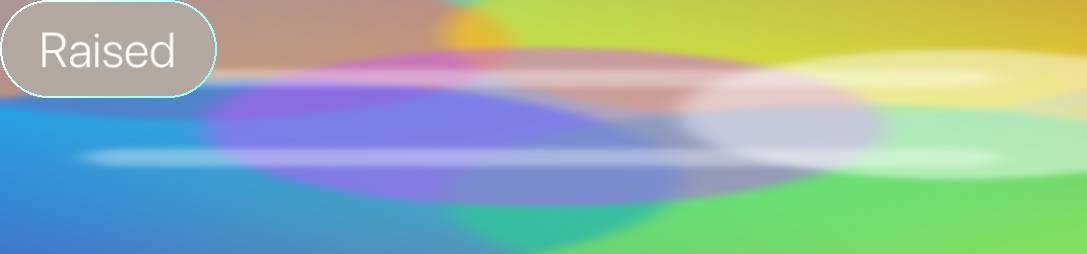

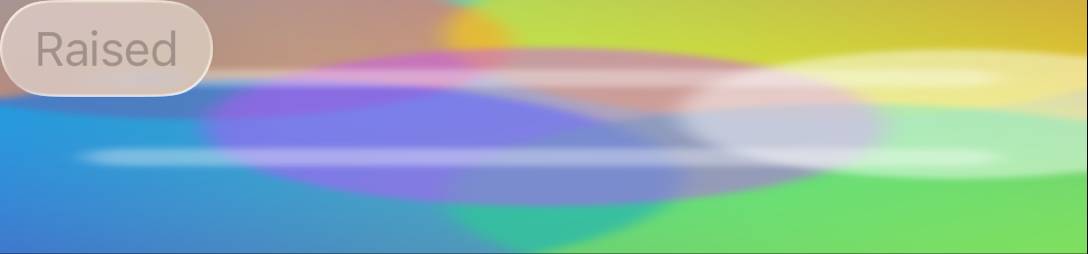

RaisedButton_disabled_light -- 97.26% fidelity (SSIM 0.9611) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 97.29% fidelity (SSIM 0.9649) (no change)

Left: native widget. Right: Codename One render.

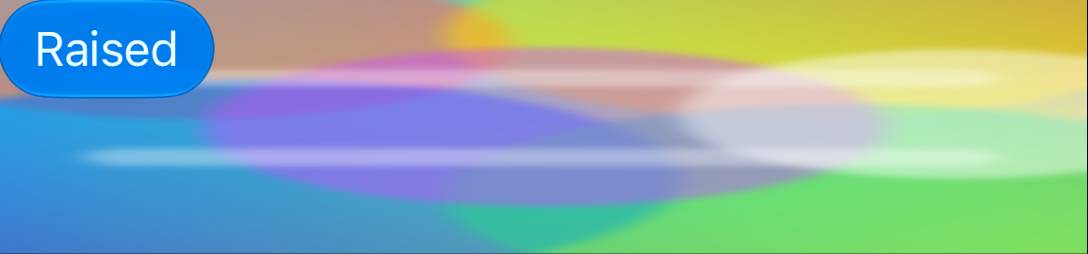

RaisedButton_normal_light -- 97.32% fidelity (SSIM 0.9613) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 97.61% fidelity (SSIM 0.9583) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 97.62% fidelity (SSIM 0.9582) (no change)

Left: native widget. Right: Codename One render.

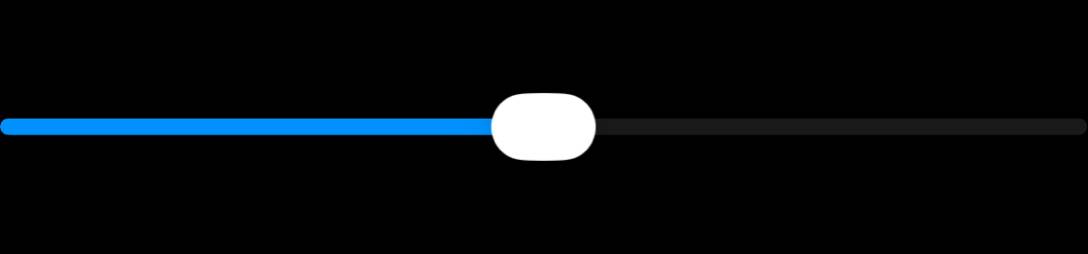

Slider_normal_dark -- 98.39% fidelity (SSIM 0.9900) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_light -- 98.69% fidelity (SSIM 0.9739) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_light -- 98.95% fidelity (SSIM 0.9908) (no change)

Left: native widget. Right: Codename One render.

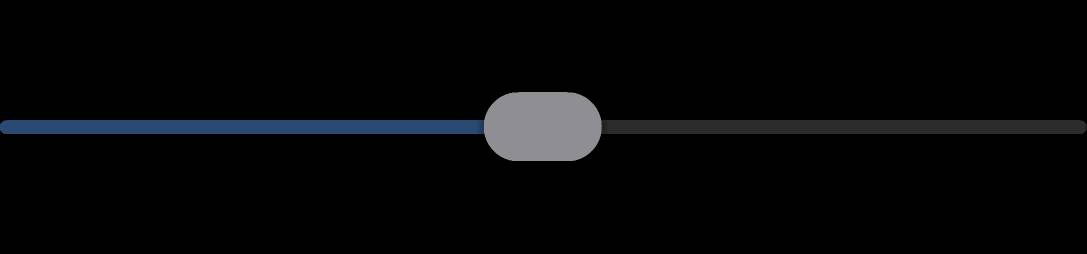

Slider_disabled_dark -- 99.56% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_light -- 99.59% fidelity (SSIM 0.9932) (no change)

Left: native widget. Right: Codename One render.

shai-almog · 2026-10-21T06:35:40Z

Compared 170 screenshots: 170 matched.

Native Android coverage

📊 Line coverage: 16.01% (26002/162390 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
- Other counters: instruction 14.37% (122147/850229), branch 9.91% (8466/85441), complexity 7.81% (6525/83503), method 11.59% (4648/40094), class 19.78% (960/4853)
- Lowest covered classes
  - kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6367 lines covered)
  - kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.ClassReader – 0.00% (0/1524 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.MethodWriter – 0.00% (0/922 lines covered)
  - kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/736 lines covered)
  - com.google.common.cache.com.google.common.cache.LocalCache$Segment – 0.00% (0/726 lines covered)
  - okio.okio.Buffer – 0.00% (0/687 lines covered)
  - kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/625 lines covered)
  - com.codename1.androidcompat.rt.com.codename1.androidcompat.rt.TextXmlPullParser – 0.00% (0/623 lines covered)
  - com.codename1.androidcompat.androidx.constraintlayout.core.widgets.com.codename1.androidcompat.androidx.constraintlayout.core.widgets.Flow – 0.00% (0/576 lines covered)

✅ Native Android screenshot tests passed.

Native Android coverage

📊 Line coverage: 16.01% (26002/162390 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
- Other counters: instruction 14.37% (122147/850229), branch 9.91% (8466/85441), complexity 7.81% (6525/83503), method 11.59% (4648/40094), class 19.78% (960/4853)
- Lowest covered classes
  - kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6367 lines covered)
  - kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.ClassReader – 0.00% (0/1524 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.MethodWriter – 0.00% (0/922 lines covered)
  - kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/736 lines covered)
  - com.google.common.cache.com.google.common.cache.LocalCache$Segment – 0.00% (0/726 lines covered)
  - okio.okio.Buffer – 0.00% (0/687 lines covered)
  - kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/625 lines covered)
  - com.codename1.androidcompat.rt.com.codename1.androidcompat.rt.TextXmlPullParser – 0.00% (0/623 lines covered)
  - com.codename1.androidcompat.androidx.constraintlayout.core.widgets.com.codename1.androidcompat.androidx.constraintlayout.core.widgets.Flow – 0.00% (0/576 lines covered)

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	scalar fallback (no native SIMD)
SIMD int-add (64K x300)	java 157ms / native 129ms = 1.2x speedup
SIMD float-mul (64K x300)	java 58ms / native 37ms = 1.5x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	38.000 ms
Base64 CN1 decode	52.000 ms
Base64 native encode	333.000 ms
Base64 encode ratio (CN1/native)	0.114x (88.6% faster)
Base64 native decode	176.000 ms
Base64 decode ratio (CN1/native)	0.295x (70.5% faster)
Image encode benchmark status	skipped (SIMD unsupported)

shai-almog · 2026-10-21T06:36:07Z

Compared 206 screenshots: 206 matched.
✅ JavaScript-port screenshot tests passed.

shai-almog · 2026-10-21T06:42:13Z

Native fidelity (ios-27-metal)

68 pairs compared -- median 94.6%, worst 74.5% (Toolbar_normal_dark), 25th pct 91.7%, mean 93.3%.

Distribution -- >=99%: 0 | 95-99%: 31 | 90-95%: 25 | <90%: 12

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	vs base	Geometry

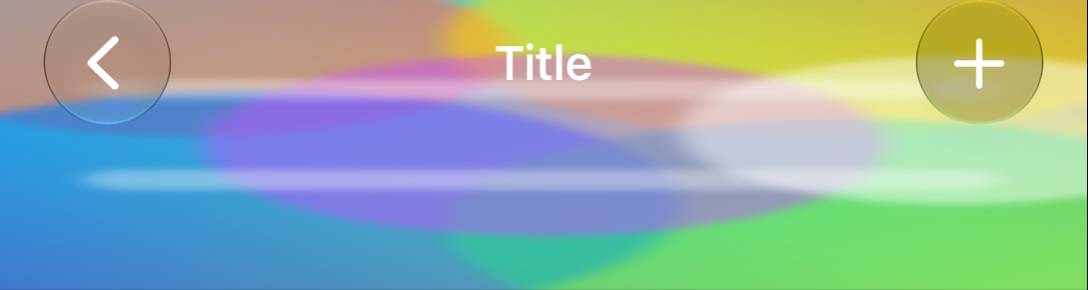

Toolbar	normal	dark	glass	74.5%	0.930	7.16	0.0	ok
Button	normal	dark	glass	79.3%	0.938	7.66	0.0	OFF (off 11px)
Button	disabled	dark	glass	79.6%	0.942	7.41	0.0	OFF (off 11px)

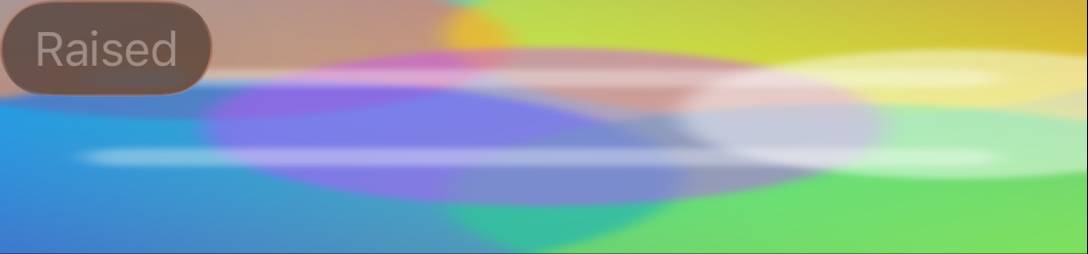

RaisedButton	disabled	dark	glass	81.2%	0.954	6.32	0.0	ok

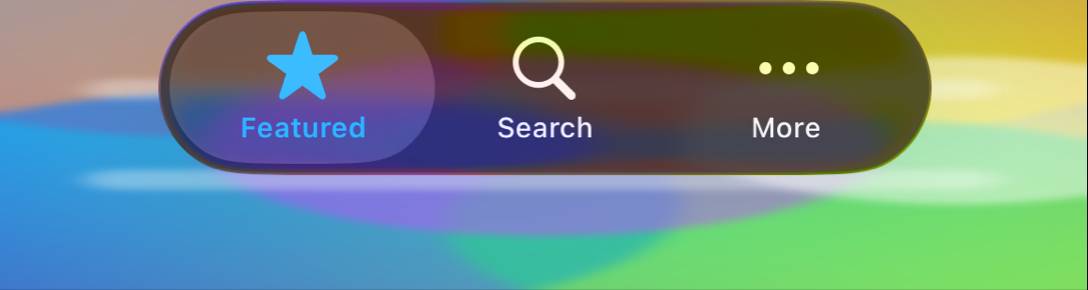

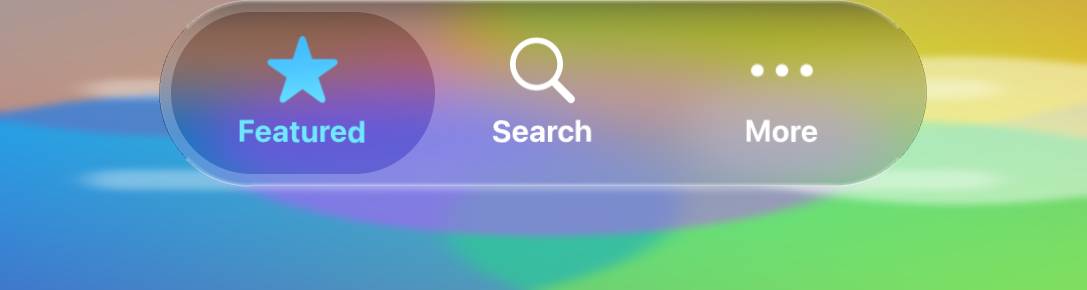

Tabs	normal	dark	glass	86.2%	0.900	6.73	+0.3	ok
Button	pressed	dark	glass	86.3%	0.948	5.27	0.0	OFF (off 11px)
Tabs	normal	light	glass	86.4%	0.895	7.61	+0.3	ok
TextField	normal	light	normal	86.5%	0.950	3.38	0.0	ok
Toolbar	normal	light	glass	86.9%	0.949	3.85	0.0	ok
TextField	disabled	light	normal	89.4%	0.954	2.56	0.0	ok
Button	normal	light	glass	89.5%	0.959	4.54	0.0	OFF (off 11px)
Button	pressed	light	glass	89.5%	0.959	4.33	0.0	OFF (off 11px)

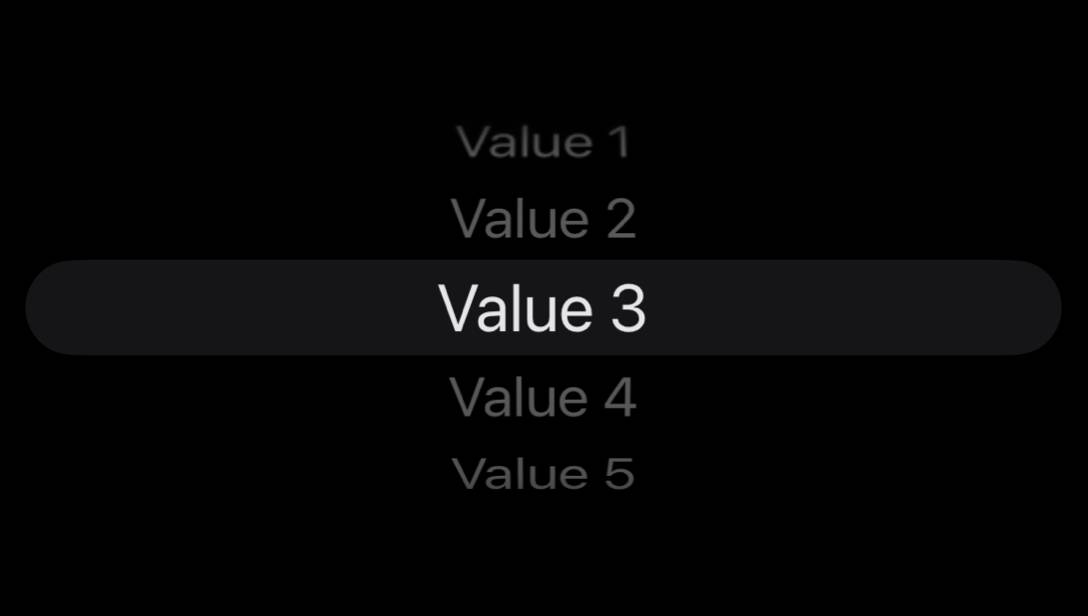

Spinner	normal	dark	normal	90.7%	0.880	3.47	0.0	ok
FlatButton	normal	dark	glass	90.9%	0.981	2.38	0.0	ok
Button	disabled	light	glass	91.6%	0.962	3.21	0.0	OFF (off 11px)

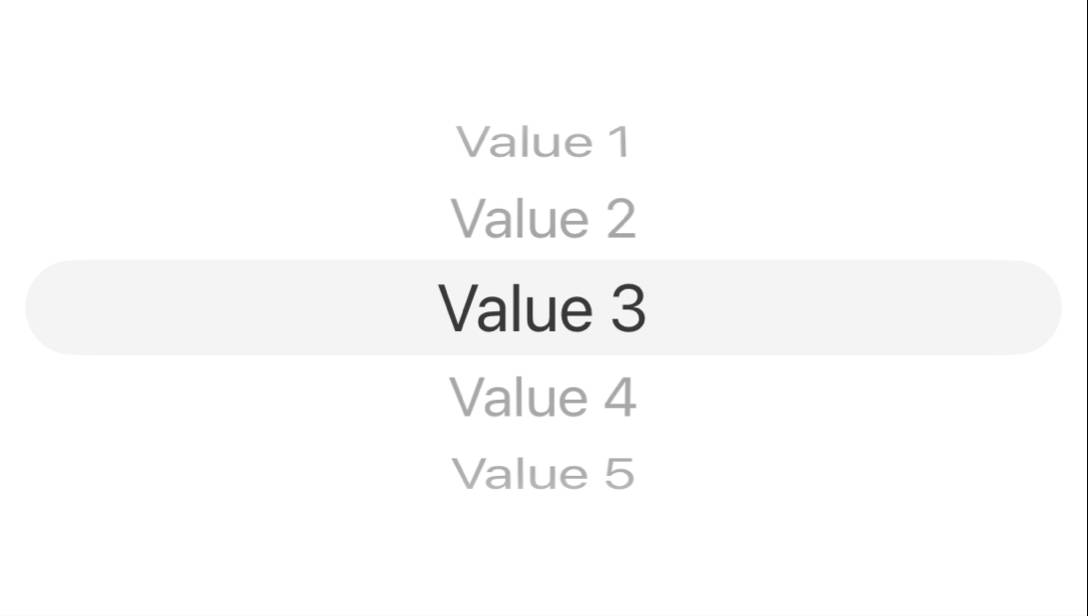

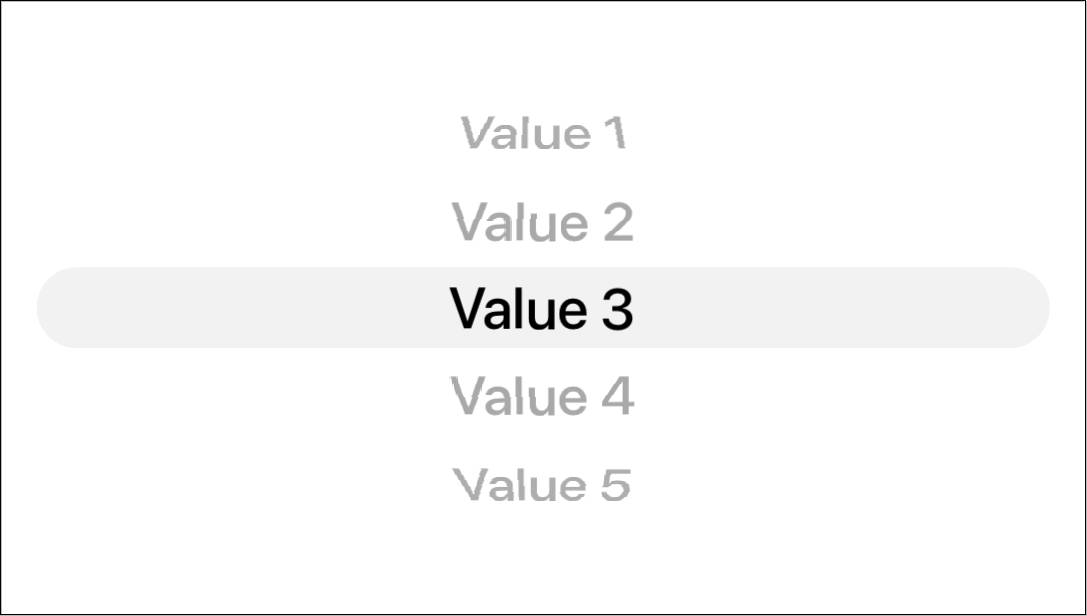

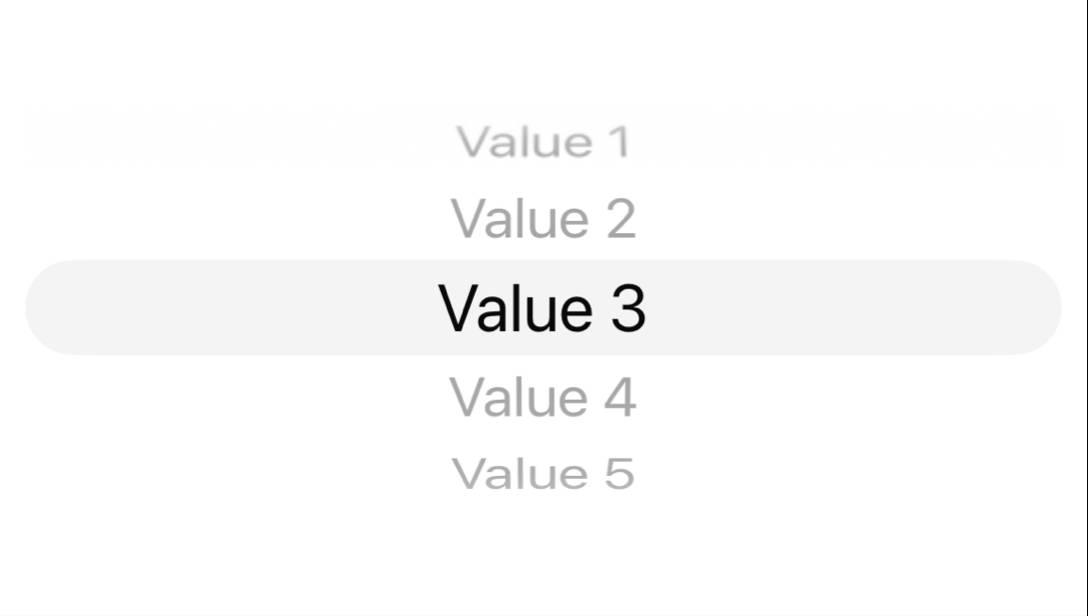

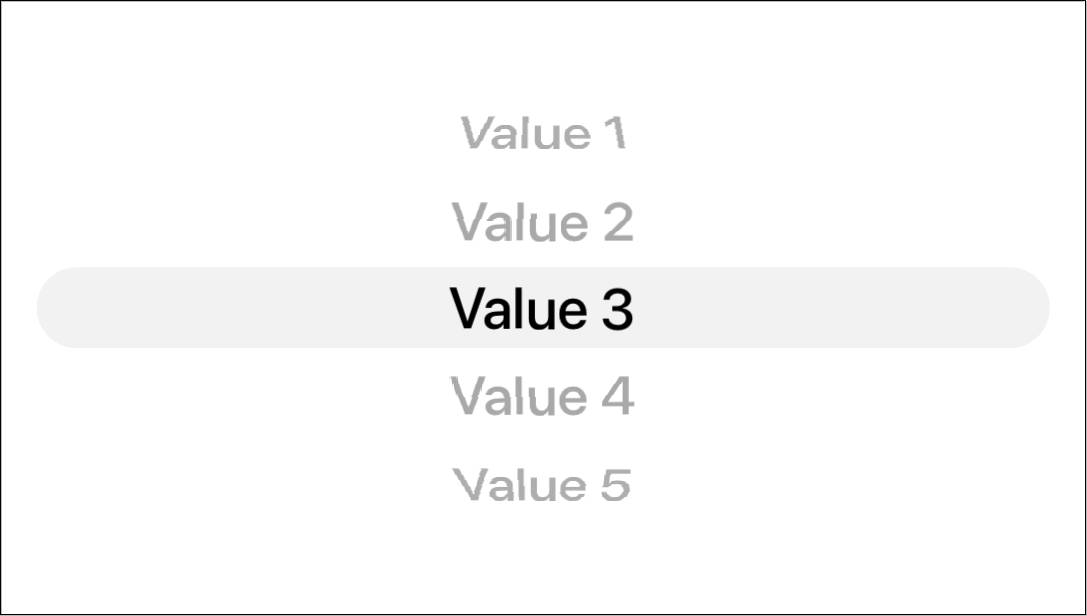

Spinner	normal	light	normal	91.6%	0.910	4.20	0.0	ok
CheckBox	normal	light	normal	91.7%	0.994	0.72	0.0	ok
RadioButton	normal	light	normal	91.7%	0.994	0.72	0.0	ok
Slider	disabled	dark	normal	92.1%	0.943	2.45	0.0	ok

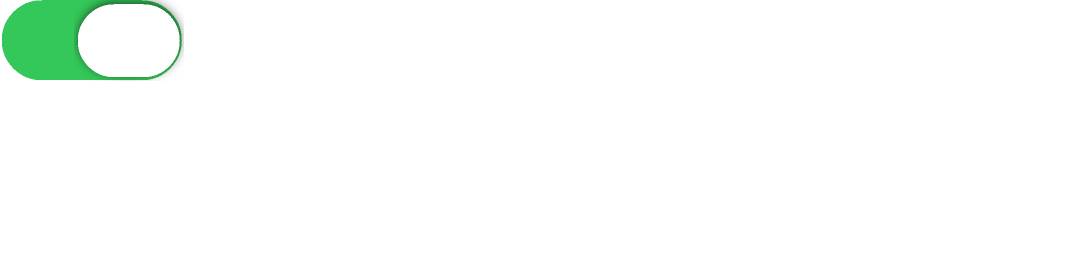

Switch	selected	light	normal	92.1%	0.981	1.47	0.0	ok
CheckBox	disabled	light	normal	92.3%	0.995	0.52	0.0	ok
RadioButton	disabled	light	normal	92.3%	0.995	0.52	0.0	ok
FlatButton	pressed	dark	glass	92.4%	0.982	1.37	0.0	ok
RaisedButton	disabled	light	glass	92.4%	0.960	2.43	0.0	ok
Slider	normal	dark	normal	92.5%	0.944	2.63	0.0	ok
TabsGeom	normal	light	normal	93.1%	0.885	6.48	+0.1	OFF (off 6px)
FlatButton	pressed	light	glass	93.3%	0.981	1.90	0.0	ok

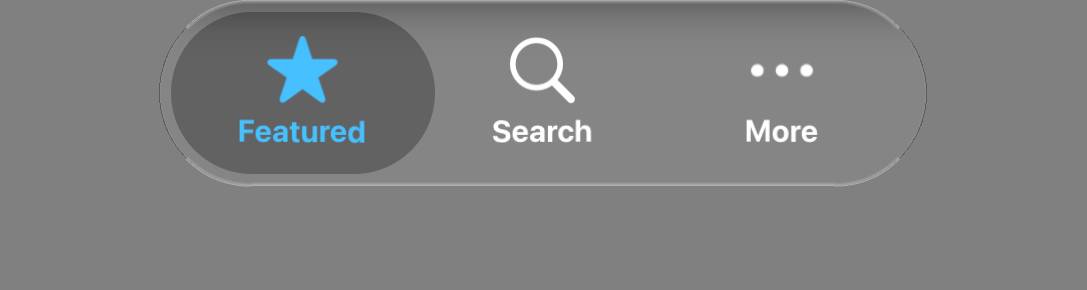

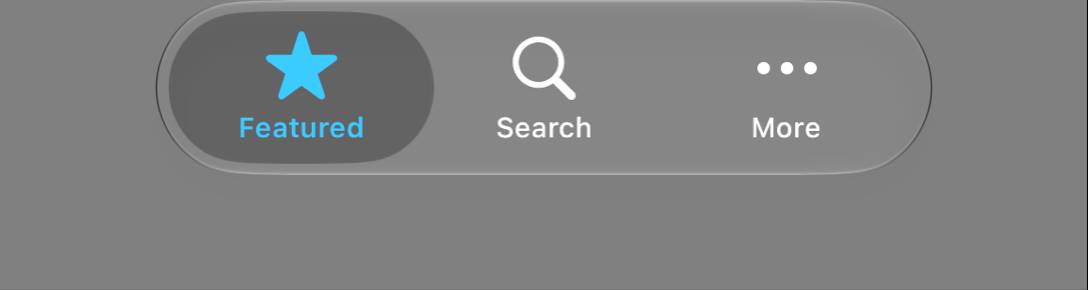

TabsGeom	normal	dark	normal	93.8%	0.893	4.47	+0.1	ok
FlatButton	normal	light	glass	93.9%	0.981	1.88	0.0	ok
Slider	disabled	light	normal	94.0%	0.963	1.75	0.0	OFF (h 4.50)
RaisedButton	pressed	dark	glass	94.1%	0.966	2.29	0.0	ok
RaisedButton	normal	dark	glass	94.1%	0.966	2.32	0.0	ok
RadioButton	selected	light	normal	94.3%	0.990	0.95	0.0	ok
RaisedButton	pressed	light	glass	94.5%	0.963	2.16	0.0	ok

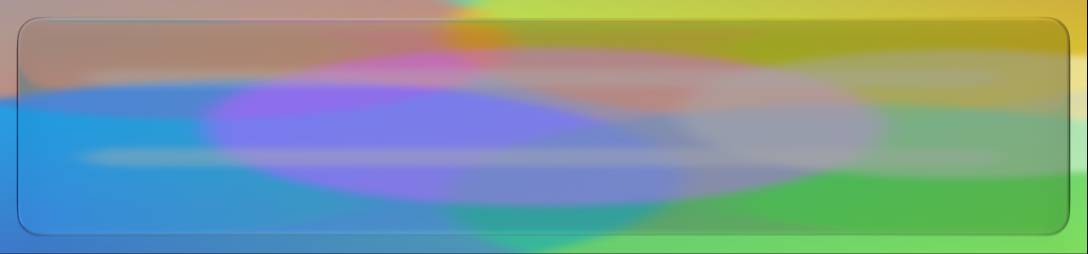

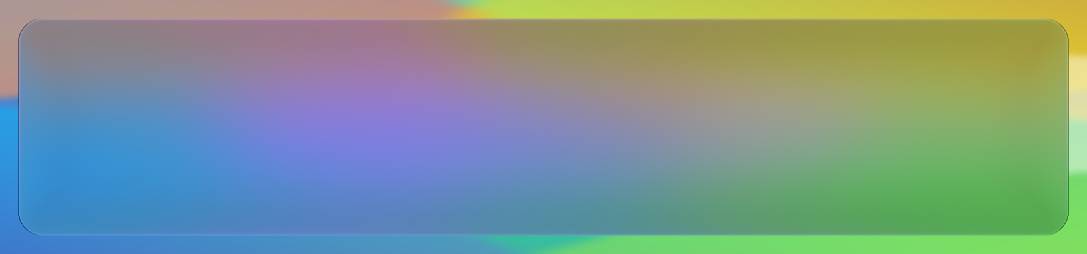

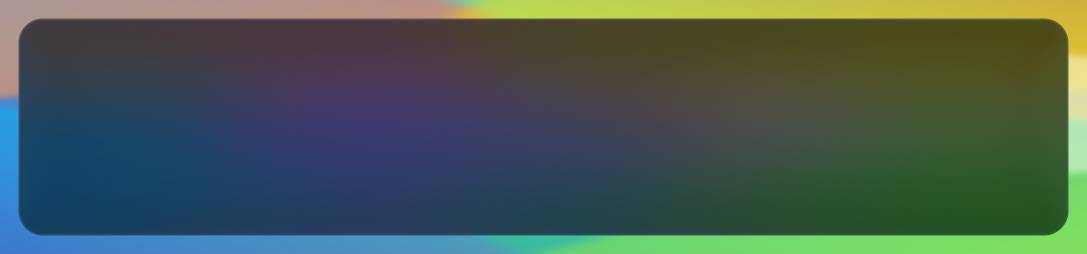

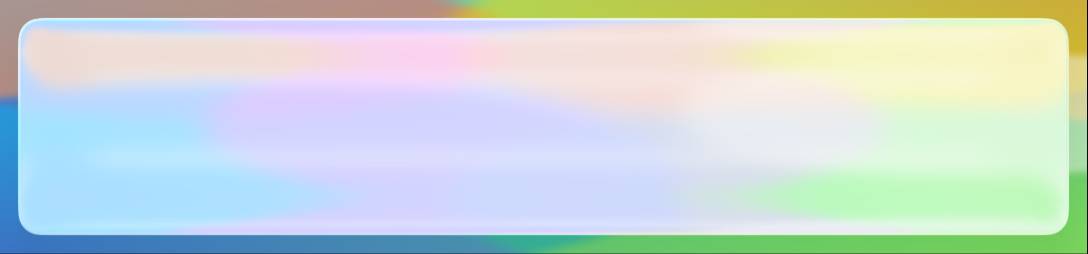

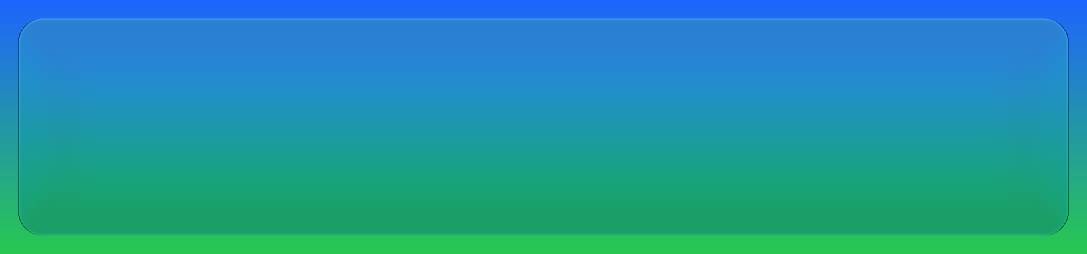

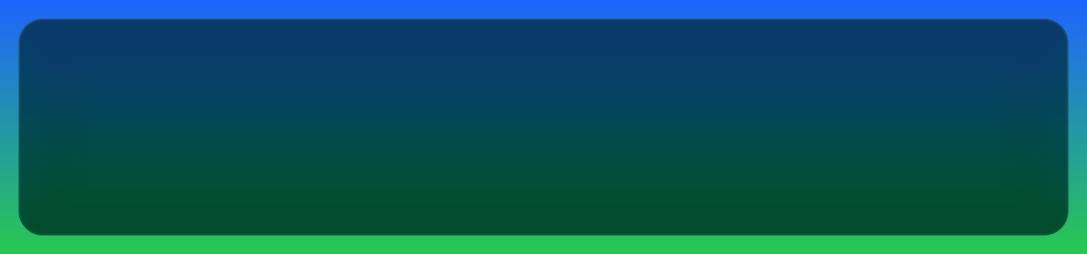

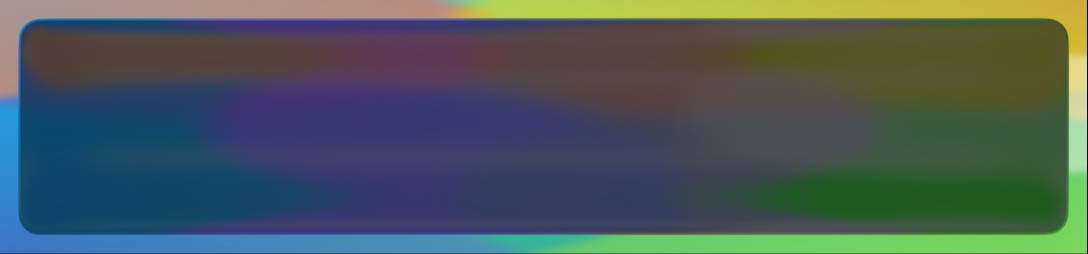

GlassPanelPhoto	normal	dark	glass	94.6%	0.951	13.16	0.0	ok
RaisedButton	normal	light	glass	94.6%	0.963	2.17	0.0	ok

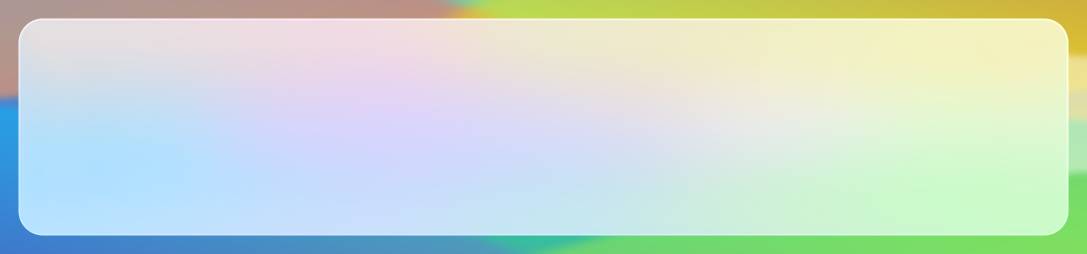

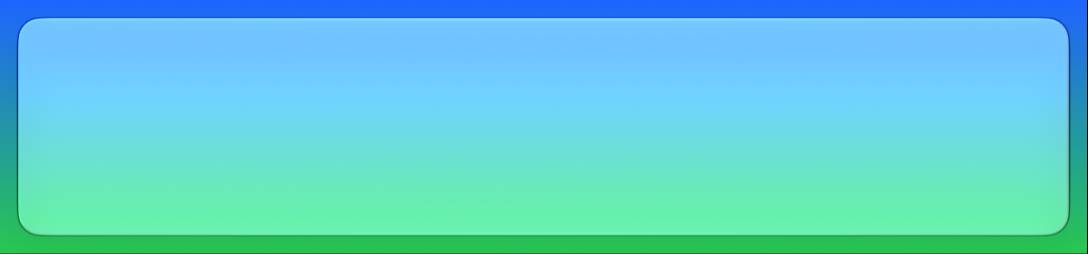

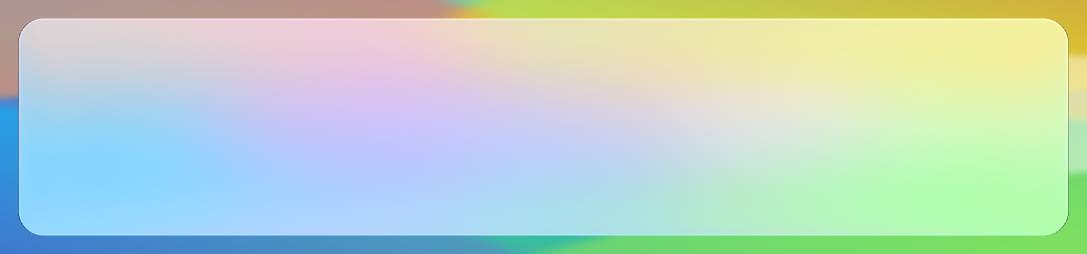

GlassPanelPhoto	normal	light	glass	94.7%	0.951	11.57	0.0	ok
Slider	normal	light	normal	95.1%	0.959	1.56	0.0	ok
CheckBox	disabled	dark	normal	95.4%	0.992	0.25	0.0	ok
RadioButton	disabled	dark	normal	95.4%	0.992	0.25	0.0	ok
Switch	normal	light	normal	95.5%	0.986	0.70	0.0	ok
CheckBox	selected	light	normal	95.8%	0.995	0.65	0.0	ok
CheckBox	normal	dark	normal	95.8%	0.992	0.39	0.0	ok
RadioButton	normal	dark	normal	95.8%	0.992	0.39	0.0	ok
Switch	selected	dark	normal	95.9%	0.985	1.02	0.0	ok
TextField	normal	dark	normal	96.0%	0.937	4.53	0.0	ok
RadioButton	selected	dark	normal	96.1%	0.989	0.67	0.0	ok
Switch	disabled	light	normal	96.4%	0.990	0.53	0.0	ok
TextField	disabled	dark	normal	96.4%	0.940	3.39	0.0	ok
Switch	normal	dark	normal	96.8%	0.986	0.82	0.0	ok

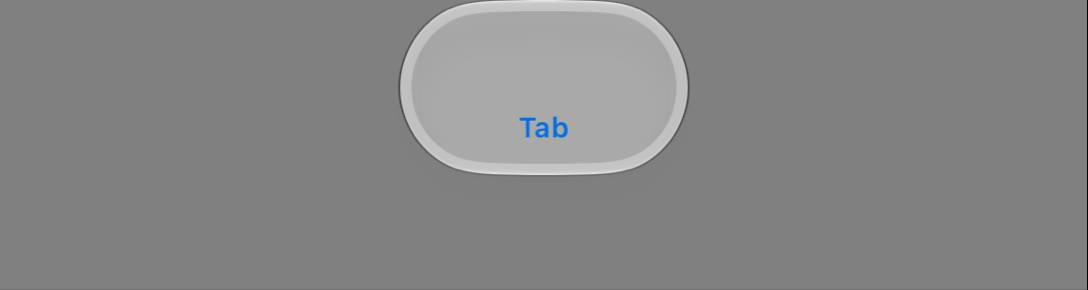

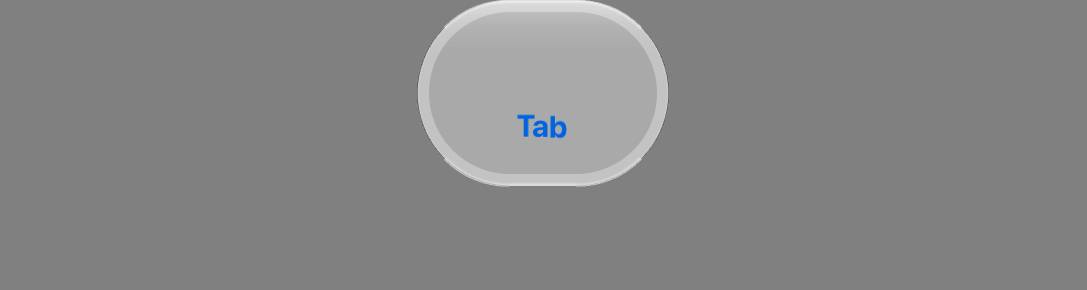

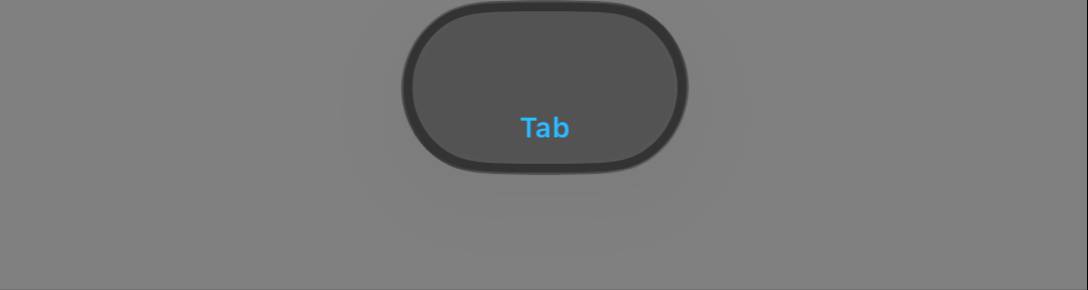

TabOne	normal	light	normal	96.9%	0.948	2.57	0.0	OFF (off 6px, w 0.86)
GlassIcon	normal	dark	normal	97.2%	0.955	3.32	0.0	ok
GlassText	normal	dark	normal	97.3%	0.956	3.27	+0.1	ok
GlassPanelGrey	normal	dark	normal	97.4%	0.959	3.41	0.0	ok
TabOne	normal	dark	normal	97.4%	0.953	1.49	0.0	OFF (w 0.86)
ProgressBar	normal	dark	normal	97.5%	0.997	0.60	0.0	ok
ProgressBar	normal	light	normal	97.6%	0.999	0.61	0.0	ok

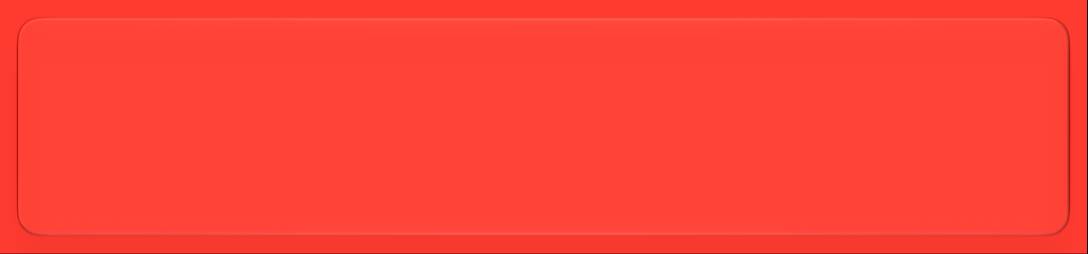

GlassPanelRed	normal	dark	normal	97.7%	0.980	6.75	0.0	ok
CheckBox	selected	dark	normal	97.9%	0.995	0.37	0.0	ok
Dialog	normal	dark	normal	97.9%	0.961	1.38	0.0	ok
GlassPanelGrad	normal	dark	normal	97.9%	0.975	4.86	0.0	ok
Dialog	normal	light	normal	98.0%	0.963	1.42	0.0	ok
Switch	disabled	dark	normal	98.0%	0.987	0.41	0.0	ok

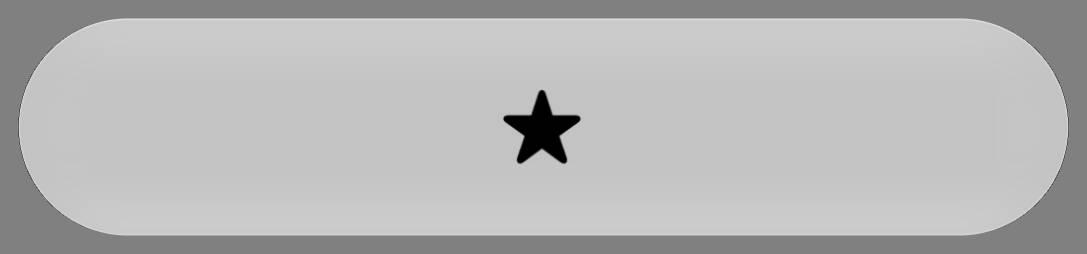

GlassIcon	normal	light	normal	98.2%	0.975	3.65	0.0	ok
GlassText	normal	light	normal	98.3%	0.978	3.58	+0.1	ok
GlassPanelGrad	normal	light	normal	98.4%	0.988	5.52	0.0	ok

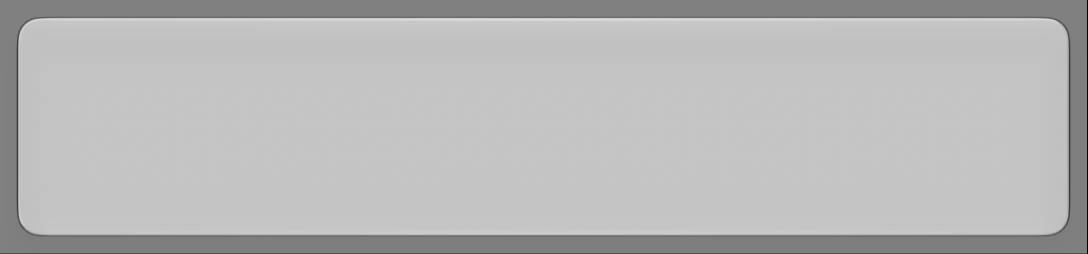

GlassPanelGrey	normal	light	normal	98.7%	0.987	3.64	0.0	ok
GlassPanelRed	normal	light	normal	98.8%	0.990	4.14	0.0	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
Button	normal	dark	+0,-6	1.094	1.067	10.9	90.5 -> 45.2
Button	disabled	dark	+0,-6	1.094	1.067	10.9	92.0 -> 45.2
Button	pressed	dark	+0,-6	1.094	1.080	10.8	79.4 -> 45.3
Button	normal	light	+0,+0	1.094	1.000	10.5	45.7 -> 45.3
Button	pressed	light	+0,+0	1.094	1.000	10.5	87.5 -> 45.4
Button	disabled	light	+0,+0	1.094	1.000	10.5	49.1 -> 45.3
TabsGeom	normal	light	+3,+0	0.990	1.069	6.1	79.8 -> 83.6
TabOne	normal	light	+19,+0	0.863	1.069	6.1	80.9 -> 83.6
TabsGeom	normal	dark	+3,+0	0.990	1.064	5.6	98.6 -> 99.1
TabOne	normal	dark	+19,+0	0.863	1.064	5.6	95.2 -> 95.6
Tabs	normal	light	+4,+0	0.988	1.064	5.5	85.9 -> 87.9
GlassIcon	normal	dark	+1,+8	0.998	0.976	5.5	102.3 -> 102.4
GlassText	normal	dark	+1,+8	0.998	0.976	5.5	102.3 -> 102.4
Tabs	normal	dark	+4,+0	0.987	1.058	5.1	92.9 -> 93.7
Toolbar	normal	dark	+6,-3	0.983	1.009	3.5	90.3 -> 55.5
Toolbar	normal	light	+6,+7	0.984	0.926	3.2	70.9 -> 56.1
RaisedButton	disabled	dark	+0,-6	1.009	1.079	2.7	89.6 -> 46.1
Switch	selected	light	+0,+0	1.028	1.026	2.7	-
Slider	disabled	light	+0,-29	1.000	4.500	2.5	-
Switch	normal	light	+0,+0	1.023	1.013	2.1	-
Switch	disabled	light	+0,+0	1.023	1.013	2.1	-
Switch	normal	dark	+0,+0	1.023	1.013	2.1	-
Switch	disabled	dark	+0,+0	1.023	1.013	2.1	-
Spinner	normal	light	+11,-8	0.978	1.052	1.6	-
RaisedButton	disabled	light	+0,+0	1.014	1.011	1.6	71.9 -> 96.6
FlatButton	normal	light	+0,+0	0.980	1.011	1.6	86.2 -> 51.8
Switch	selected	dark	+0,+0	1.017	1.013	1.6	-
Spinner	normal	dark	+12,-8	0.977	1.052	1.5	-
CheckBox	normal	light	+0,+0	0.977	0.977	1.4	-
RadioButton	normal	light	+0,+0	0.977	0.977	1.4	-
RadioButton	selected	light	+0,+0	0.977	0.977	1.4	-
CheckBox	selected	light	+0,+0	0.977	0.977	1.4	-
CheckBox	normal	dark	+0,+0	0.977	0.977	1.4	-
RadioButton	normal	dark	+0,+0	0.977	0.977	1.4	-
RadioButton	selected	dark	+0,+0	0.977	0.977	1.4	-
CheckBox	selected	dark	+0,+0	0.977	0.977	1.4	-
FlatButton	pressed	light	+1,+0	0.973	1.011	1.1	94.6 -> 65.6
RaisedButton	pressed	dark	+0,+0	1.009	1.011	1.1	44.6 -> 44.3
RaisedButton	normal	dark	+0,+0	1.009	1.011	1.1	44.5 -> 44.3
CheckBox	disabled	dark	+1,+0	0.966	0.977	1.1	-
RadioButton	disabled	dark	+1,+0	0.966	0.977	1.1	-
RaisedButton	pressed	light	+0,+0	1.009	1.000	1.0	43.3 -> 44.3
RaisedButton	normal	light	+0,+0	1.009	1.000	1.0	43.3 -> 44.1
FlatButton	normal	dark	+4,+0	0.952	1.011	0.7	86.1 -> 95.7
FlatButton	pressed	dark	+4,+0	0.952	1.011	0.7	94.7 -> 97.9
GlassPanelPhoto	normal	light	+1,+1	0.997	0.995	0.7	35.1 -> 33.5

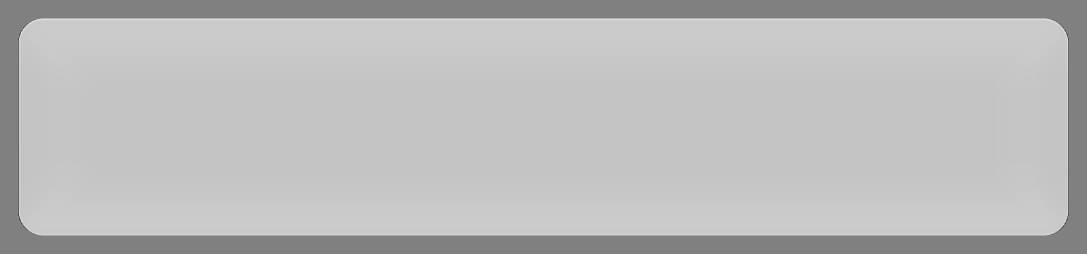

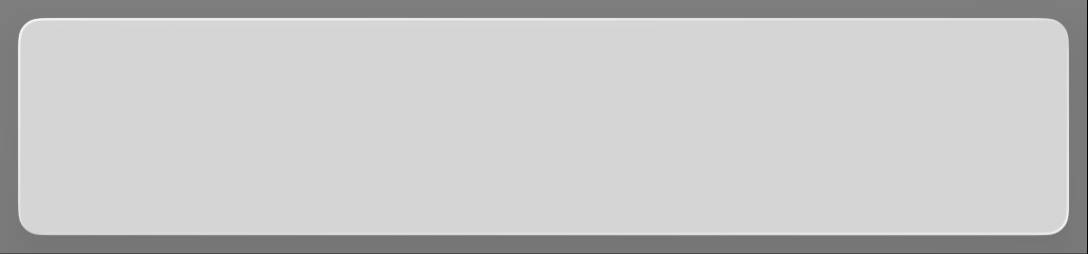

GlassPanelGrey	normal	light	+1,+1	0.997	0.995	0.7	30.0 -> 27.4
Slider	disabled	dark	+0,-1	1.000	1.015	0.5	-
CheckBox	disabled	light	+1,+0	0.977	0.988	0.5	-
RadioButton	disabled	light	+1,+0	0.977	0.988	0.5	-
Slider	normal	light	+0,+1	1.000	0.964	0.5	-
GlassPanelGrey	normal	dark	+1,+2	0.998	0.986	0.5	101.8 -> 102.4
ProgressBar	normal	dark	+0,+0	1.000	0.900	0.5	-
ProgressBar	normal	light	+0,+0	1.000	0.900	0.5	-
GlassPanelGrad	normal	dark	+1,+0	0.998	0.995	0.5	102.0 -> 102.1
GlassIcon	normal	light	+1,+0	0.998	1.005	0.5	91.7 -> 92.8

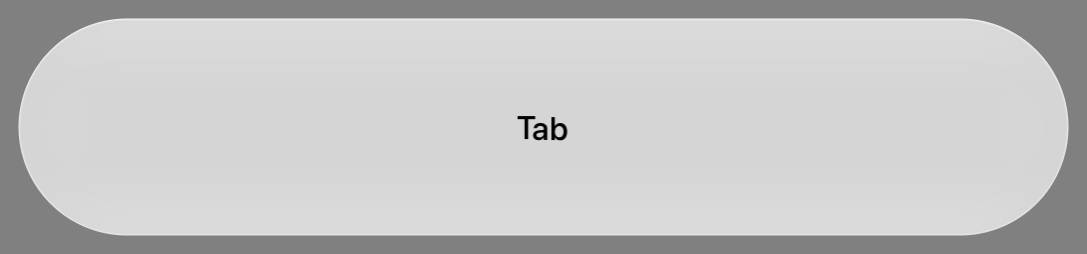

GlassText	normal	light	+1,+0	0.998	1.005	0.5	91.7 -> 92.8

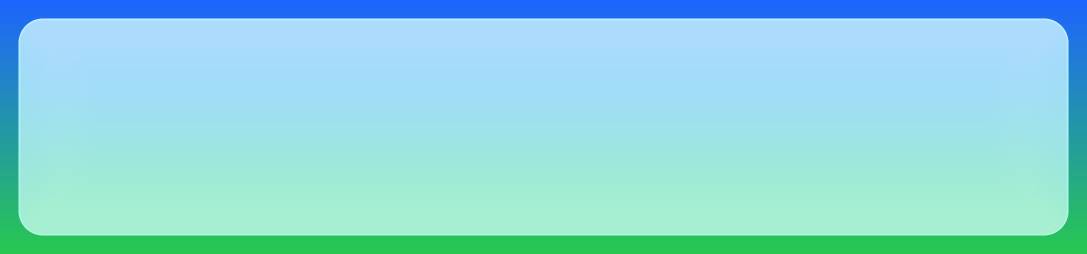

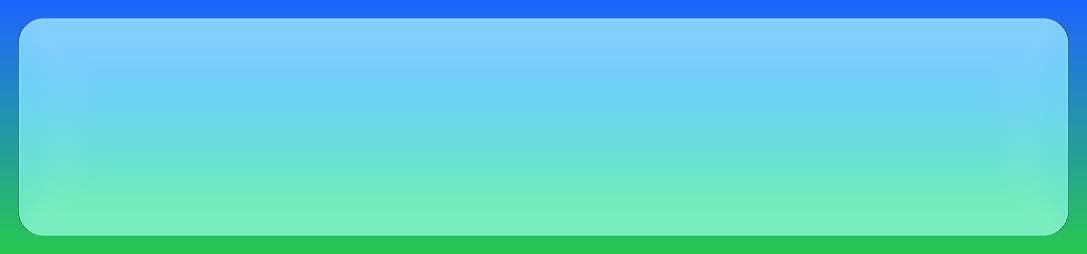

GlassPanelGrad	normal	light	+1,+0	0.998	1.005	0.5	24.3 -> 26.8

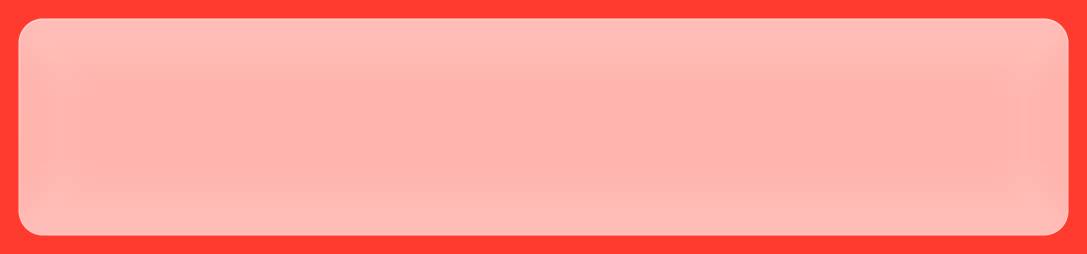

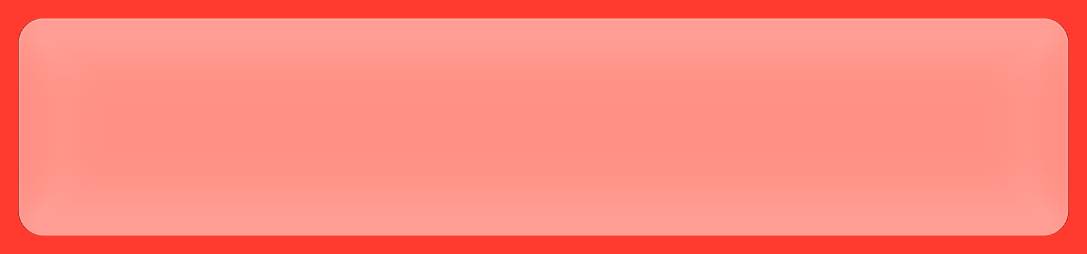

GlassPanelRed	normal	light	+1,+0	0.998	1.005	0.5	24.4 -> 25.7
TextField	normal	light	+0,+0	1.000	1.000	0.0	13.4 -> 40.0
TextField	disabled	light	+0,+0	1.000	1.000	0.0	13.9 -> 40.4
Slider	normal	dark	+0,+0	1.000	1.000	0.0	-
GlassPanelPhoto	normal	dark	+2,+1	0.996	0.991	0.0	67.3 -> 67.5
TextField	normal	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.1
TextField	disabled	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.9
GlassPanelRed	normal	dark	+1,-2	0.998	1.020	0.0	102.2 -> 102.5
Dialog	normal	dark	+0,+0	1.000	1.000	0.0	-
Dialog	normal	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

Toolbar_normal_dark -- 74.49% fidelity (SSIM 0.9295) (no change)

Left: native widget. Right: Codename One render.
Button_normal_dark -- 79.28% fidelity (SSIM 0.9380) (no change)

Left: native widget. Right: Codename One render.
Button_disabled_dark -- 79.63% fidelity (SSIM 0.9423) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_dark -- 81.15% fidelity (SSIM 0.9544) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_dark -- 86.22% fidelity (SSIM 0.8999) (+0.33 vs baseline)

Left: native widget. Right: Codename One render.
Button_pressed_dark -- 86.28% fidelity (SSIM 0.9483) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_light -- 86.43% fidelity (SSIM 0.8954) (+0.31 vs baseline)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 86.49% fidelity (SSIM 0.9502) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_light -- 86.94% fidelity (SSIM 0.9488) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 89.39% fidelity (SSIM 0.9540) (no change)

Left: native widget. Right: Codename One render.
Button_normal_light -- 89.45% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_light -- 89.45% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
Spinner_normal_dark -- 90.72% fidelity (SSIM 0.8800) (no change)

Left: native widget. Right: Codename One render.
FlatButton_normal_dark -- 90.88% fidelity (SSIM 0.9805) (no change)

Left: native widget. Right: Codename One render.
Button_disabled_light -- 91.57% fidelity (SSIM 0.9621) (no change)

Left: native widget. Right: Codename One render.
Spinner_normal_light -- 91.58% fidelity (SSIM 0.9097) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_dark -- 92.38% fidelity (SSIM 0.9821) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_light -- 92.40% fidelity (SSIM 0.9596) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (no change)

Left: native widget. Right: Codename One render.
TabsGeom_normal_light -- 93.13% fidelity (SSIM 0.8851) (+0.14 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_pressed_light -- 93.29% fidelity (SSIM 0.9811) (no change)

Left: native widget. Right: Codename One render.
TabsGeom_normal_dark -- 93.81% fidelity (SSIM 0.8925) (+0.14 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_normal_light -- 93.91% fidelity (SSIM 0.9811) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_dark -- 94.08% fidelity (SSIM 0.9659) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_dark -- 94.13% fidelity (SSIM 0.9660) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 94.26% fidelity (SSIM 0.9903) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_light -- 94.53% fidelity (SSIM 0.9633) (no change)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_dark -- 94.60% fidelity (SSIM 0.9505) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_light -- 94.64% fidelity (SSIM 0.9632) (no change)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_light -- 94.66% fidelity (SSIM 0.9507) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9951) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 96.00% fidelity (SSIM 0.9370) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_dark -- 96.13% fidelity (SSIM 0.9894) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 96.35% fidelity (SSIM 0.9395) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

Left: native widget. Right: Codename One render.
TabOne_normal_light -- 96.90% fidelity (SSIM 0.9480) (no change)

Left: native widget. Right: Codename One render.

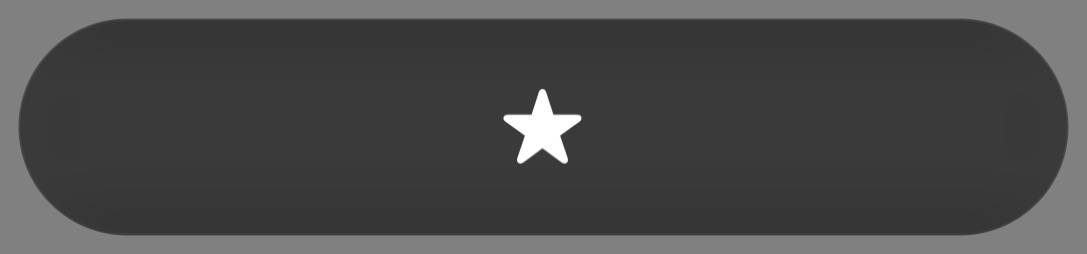

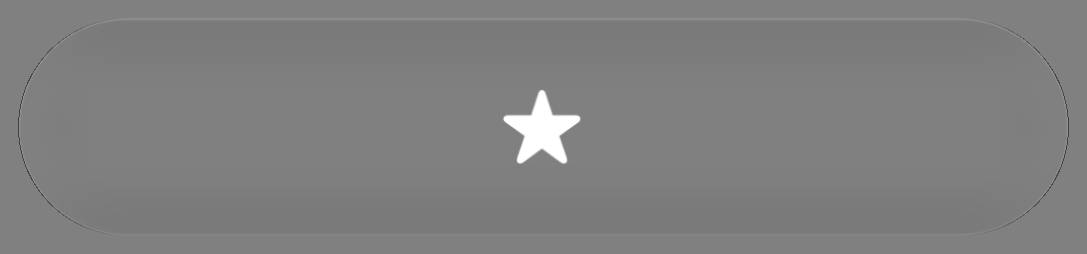

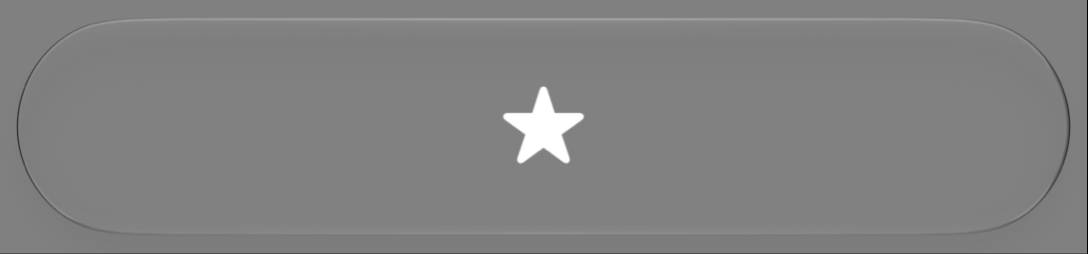

GlassIcon_normal_dark -- 97.18% fidelity (SSIM 0.9547) (no change)

Left: native widget. Right: Codename One render.

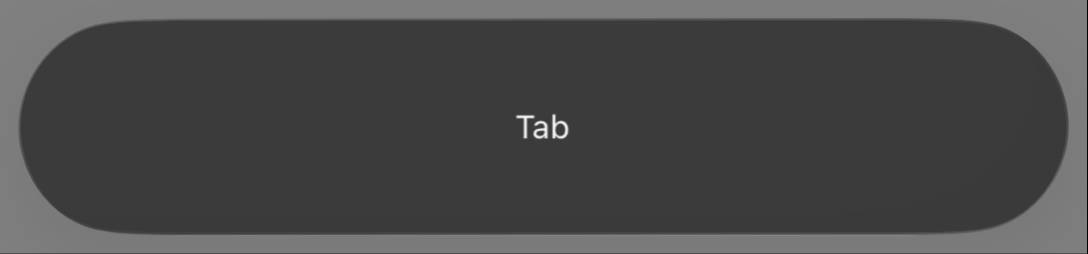

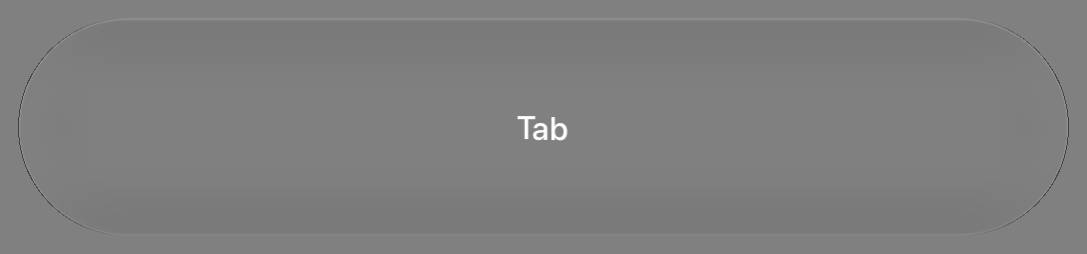

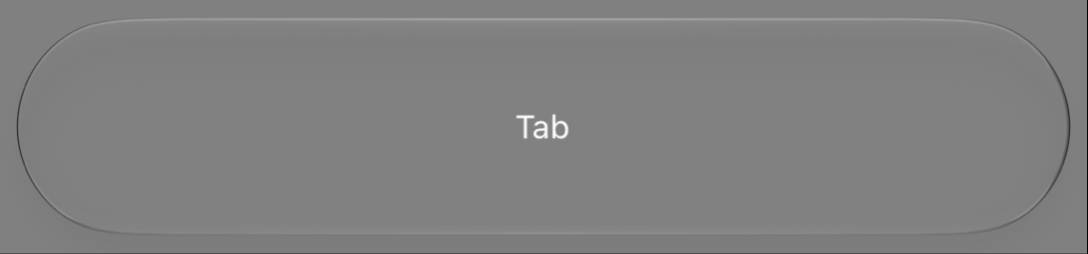

GlassText_normal_dark -- 97.27% fidelity (SSIM 0.9563) (+0.06 vs baseline)

Left: native widget. Right: Codename One render.

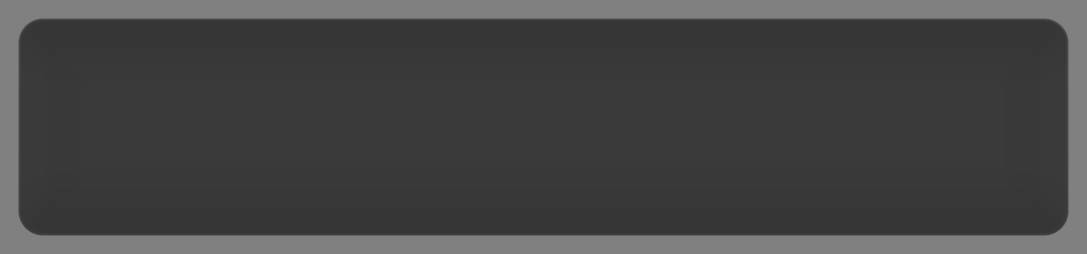

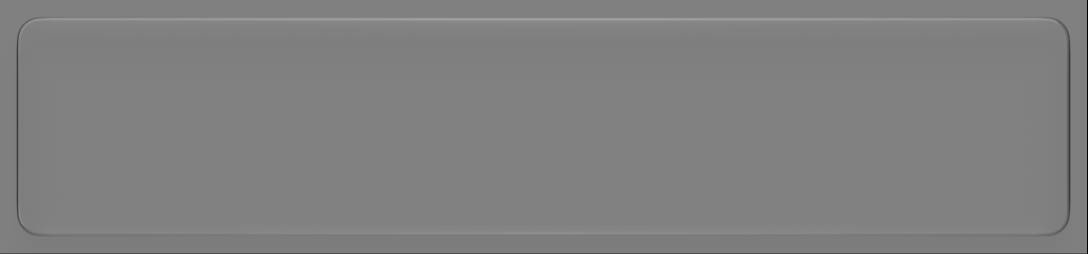

GlassPanelGrey_normal_dark -- 97.35% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
TabOne_normal_dark -- 97.36% fidelity (SSIM 0.9531) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (no change)

Left: native widget. Right: Codename One render.

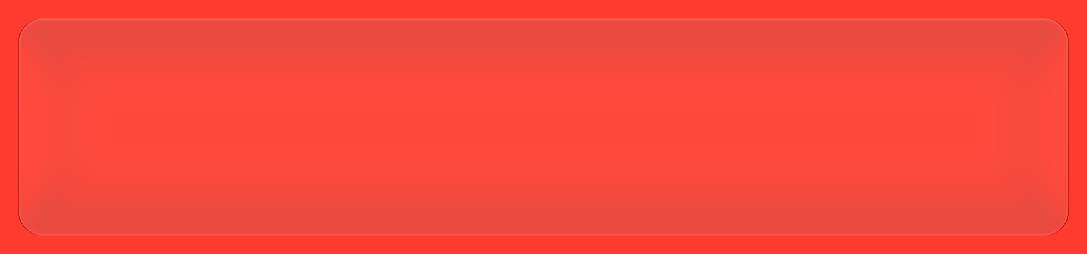

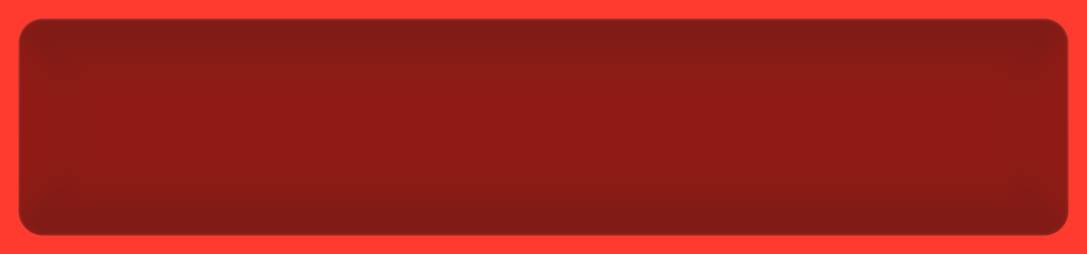

GlassPanelRed_normal_dark -- 97.73% fidelity (SSIM 0.9795) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 97.85% fidelity (SSIM 0.9945) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (no change)

Left: native widget. Right: Codename One render.

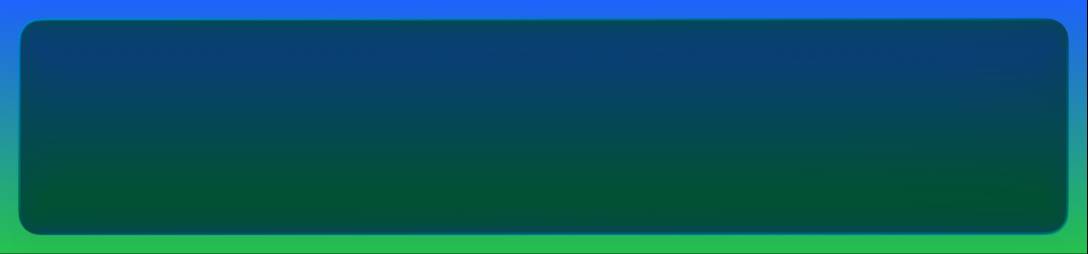

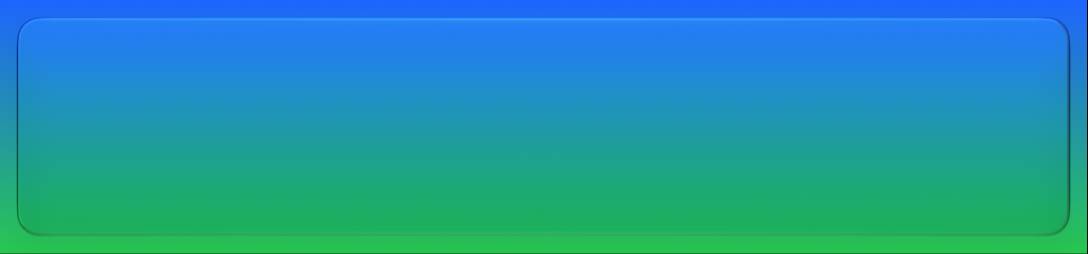

GlassPanelGrad_normal_dark -- 97.91% fidelity (SSIM 0.9752) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (no change)

Left: native widget. Right: Codename One render.

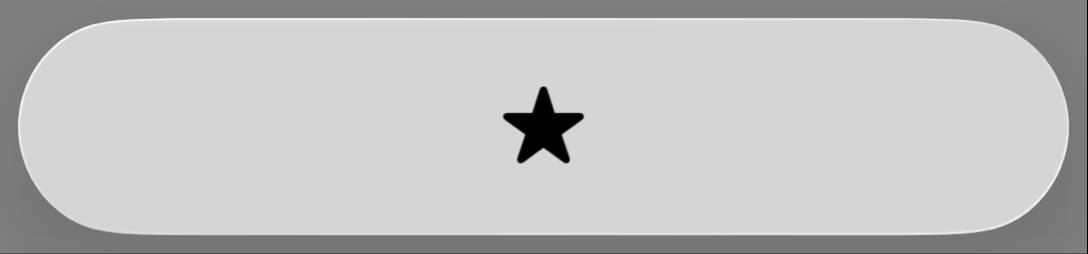

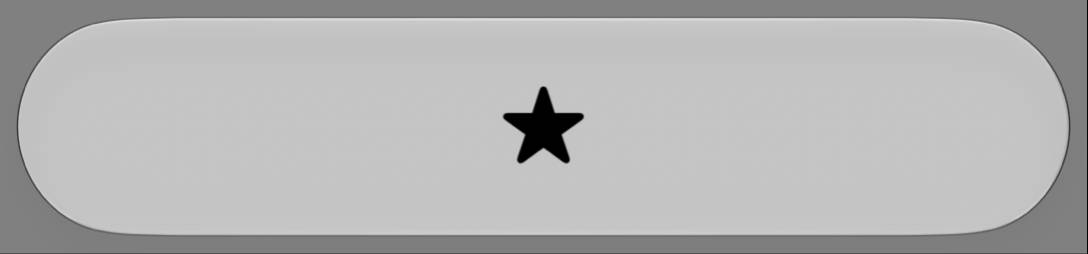

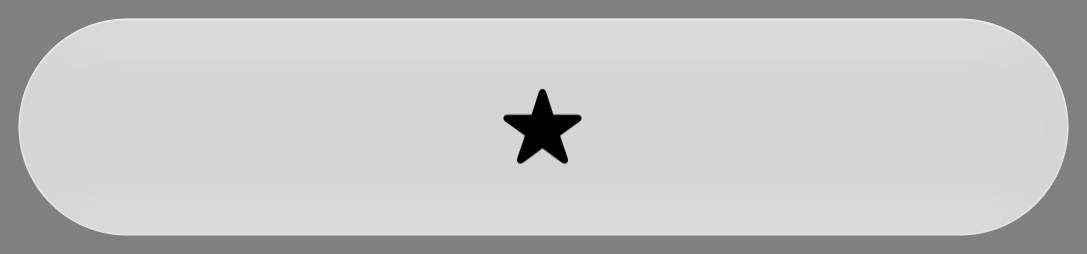

GlassIcon_normal_light -- 98.16% fidelity (SSIM 0.9750) (no change)

Left: native widget. Right: Codename One render.

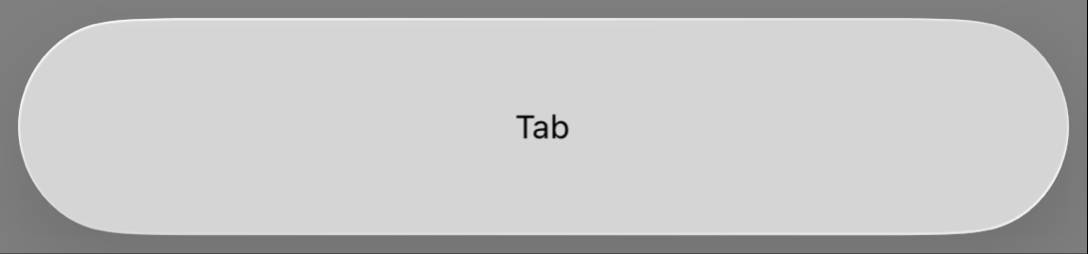

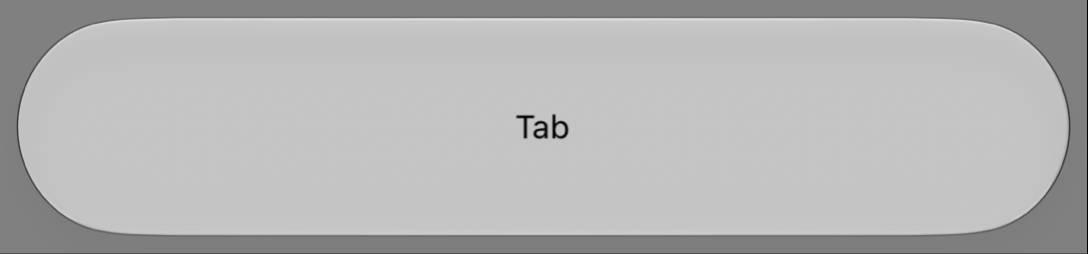

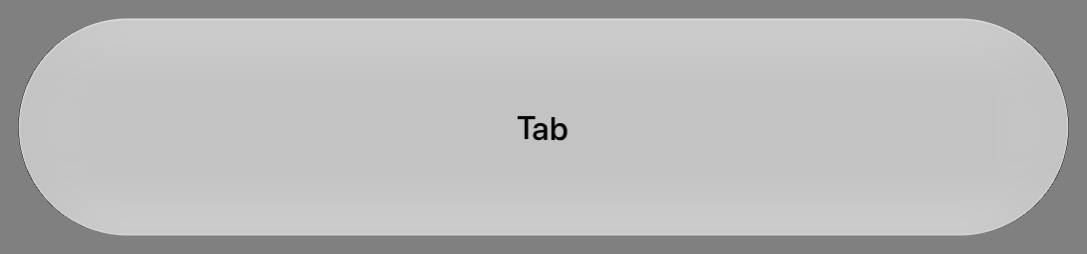

GlassText_normal_light -- 98.31% fidelity (SSIM 0.9779) (+0.06 vs baseline)

Left: native widget. Right: Codename One render.

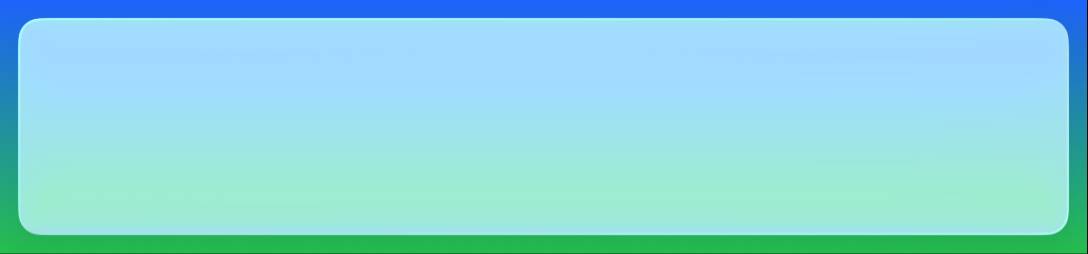

GlassPanelGrad_normal_light -- 98.41% fidelity (SSIM 0.9876) (no change)

Left: native widget. Right: Codename One render.

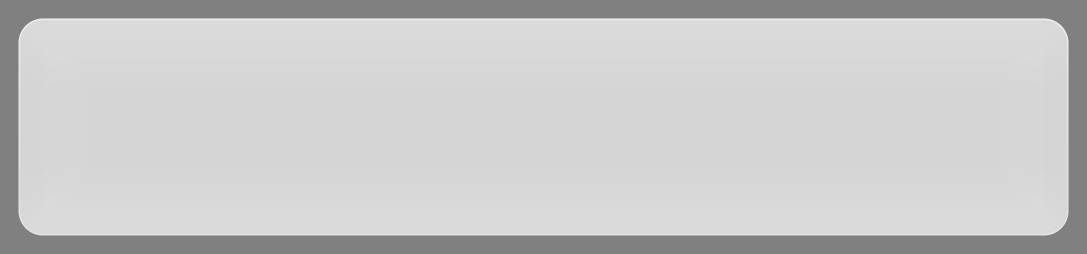

GlassPanelGrey_normal_light -- 98.70% fidelity (SSIM 0.9865) (no change)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_light -- 98.78% fidelity (SSIM 0.9900) (no change)

Left: native widget. Right: Codename One render.

shai-almog · 2026-10-21T06:43:11Z

Compared 185 screenshots: 185 matched.
Native Windows port (x64 / Intel-AMD): full hellocodenameone screenshot suite rendered offscreen with Direct2D/DirectWrite, plus the real benchmarks (base64 native/CN1/SIMD, image createMask/applyMask/modifyAlpha/PNG/JPEG, SSE2 SIMD kernels). Compared against the in-repo baseline in scripts/windows/screenshots.

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300)	java 53ms / native 4ms = 13.2x speedup
SIMD float-mul (64K x300)	java 57ms / native 4ms = 14.2x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 native bridge	unavailable (CN1 + SIMD + image benchmarks only)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	69.000 ms
Base64 CN1 decode	85.000 ms
Base64 SIMD encode	114.000 ms
Base64 encode ratio (SIMD/CN1)	1.652x (65.2% slower)
Base64 SIMD decode	90.000 ms
Base64 decode ratio (SIMD/CN1)	1.059x (5.9% slower)
Image encode benchmark iterations	100
Image createMask (SIMD off)	12.000 ms
Image createMask (SIMD on)	8.000 ms
Image createMask ratio (SIMD on/off)	0.667x (33.3% faster)
Image applyMask (SIMD off)	48.000 ms
Image applyMask (SIMD on)	39.000 ms
Image applyMask ratio (SIMD on/off)	0.813x (18.8% faster)
Image modifyAlpha (SIMD off)	100.000 ms
Image modifyAlpha (SIMD on)	9.000 ms
Image modifyAlpha ratio (SIMD on/off)	0.090x (91.0% faster)
Image modifyAlpha removeColor (SIMD off)	37.000 ms
Image modifyAlpha removeColor (SIMD on)	24.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off)	0.649x (35.1% faster)

ParparVM vs HotSpot (JDK 25): Windows x64

Runner CPU: Intel64 Family 6 Model 207 Stepping 2, GenuineIntel (baseline windows-x64@intel64-family-6-model-207-genuineintel)

1 performance regression:

recursion on all 4 CPUs: time 1.20x against a 0.94x baseline (+27.1%, tolerance 20%)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 20% (time) / 25% (RAM) above its baseline in vm/selfhost/perf-baseline/ is a regression and fails; one that far below is an improvement, reported but not failed (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (WinHelloMain)	4	1.20x (base 1.07x, +12.5%)	0.69x (base 0.86x, -18.9%)	ok
translator (self)	4	0.56x (base 0.59x, -4.7%)	0.57x (base 0.53x, +8.0%)	ok
intArithmetic	4	1.02x (base 1.02x, -0.3%)	0.06x (base 0.06x, -1.1%)	ok
longArithmetic	4	0.97x (base 0.97x, -0.5%)	0.05x (base 0.05x, +0.3%)	ok
mathTranscendental	4	0.89x (base 0.89x, +0.1%)	0.06x (base 0.06x, -0.4%)	ok
arraySequential	4	1.86x (base 1.98x, -6.1%)	0.38x (base 0.38x, +0.2%)	ok
arrayRandom	4	1.01x (base 1.01x, +0.3%)	0.23x (base 0.23x, +0.1%)	ok
objectAllocation	4	1.26x (base 1.22x, +3.4%)	0.33x (base 0.37x, -10.9%)	ok
valueEscape	4	0.13x (base 0.13x, +0.4%)	0.04x (base 0.04x, -0.7%)	ok
hashMapChurn	4	1.15x (base 1.14x, +0.7%)	0.10x (base 0.10x, +0.1%)	ok
stringBuilding	4	1.50x (base 1.42x, +5.8%)	0.27x (base 0.22x, +20.4%)	ok
recursion	4	1.20x (base 0.94x, +27.1%)	0.06x (base 0.06x, -0.1%)	REGRESSION (time +27.1%)
quicksort	4	1.06x (base 1.07x, -0.6%)	0.12x (base 0.12x, +0.0%)	ok

A change that moves performance ON PURPOSE records the new baseline in vm/selfhost/perf-baseline/pr/6068.json, with the reason, from this job's perf-results.json. The rebaseline is then part of this pull request's diff:

python3 vm/selfhost/calibrate-perf-baseline.py --pr 6068 --reason "<why these benchmarks moved>" perf-results.json

Result: performance regression

shai-almog · 2026-10-21T06:47:54Z

Compared 185 screenshots: 185 matched.
Native Windows port, REAL shipping pipeline: the hellocodenameone screenshot suite rendered by a binary CROSS-COMPILED on Linux (clang-cl + xwin, WebView2 linked) and RUN on a Windows x64 runner. Compared against the in-repo baseline in scripts/windows/screenshots.

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300)	java 26ms / native 2ms = 13.0x speedup
SIMD float-mul (64K x300)	java 27ms / native 2ms = 13.5x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 native bridge	unavailable (CN1 + SIMD + image benchmarks only)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	43.000 ms
Base64 CN1 decode	45.000 ms
Base64 SIMD encode	58.000 ms
Base64 encode ratio (SIMD/CN1)	1.349x (34.9% slower)
Base64 SIMD decode	46.000 ms
Base64 decode ratio (SIMD/CN1)	1.022x (2.2% slower)
Image encode benchmark iterations	100
Image createMask (SIMD off)	5.000 ms
Image createMask (SIMD on)	2.000 ms
Image createMask ratio (SIMD on/off)	0.400x (60.0% faster)
Image applyMask (SIMD off)	17.000 ms
Image applyMask (SIMD on)	16.000 ms
Image applyMask ratio (SIMD on/off)	0.941x (5.9% faster)
Image modifyAlpha (SIMD off)	17.000 ms
Image modifyAlpha (SIMD on)	11.000 ms
Image modifyAlpha ratio (SIMD on/off)	0.647x (35.3% faster)
Image modifyAlpha removeColor (SIMD off)	16.000 ms
Image modifyAlpha removeColor (SIMD on)	13.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off)	0.813x (18.8% faster)

github-actions · 2026-10-21T06:49:29Z

✅ Continuous Quality Report

Test & Coverage

✅ Tests: 12663 total, 0 failed, 156 skipped
📊 Line coverage: 63.97% [HTML preview] [Download]
- Lowest covered classes
  - com.codename1.io.zip.ZipArchiveOutputStream – 0.00%
  - com.codename1.gaming.level.GameSceneView – 0.00%
  - com.codename1.crash.CrashProtection – 0.00%
  - com.codename1.payment.CommerceManager – 0.00%
  - com.codename1.wearable.WearableMessage – 0.00%
  - com.codename1.ui.plaf.GlassLensBlend – 0.00%
  - com.codename1.vr.VRView – 0.00%
  - com.codename1.appreview.RatingDialog – 0.00%
  - com.codename1.db.ManagedKeys – 0.00%
  - com.codename1.calendar.DefaultCalendarHttpTransport – 0.00%

Static Analysis

SpotBugs [Report archive]
- ✅ ByteCodeTranslator: 0 findings (no issues)
- ✅ android: 0 findings (no issues)
- ✅ android-compat: 0 findings (no issues)
- ✅ android-res-compiler: 0 findings (no issues)
- ✅ backend: 0 findings (no issues)
- ✅ backend-test: 0 findings (no issues)
- ✅ build-engine: 0 findings (no issues)
- ✅ build-hint-catalog: 0 findings (no issues)
- ✅ build-hint-tools: 0 findings (no issues)
- ✅ codenameone-gradle-plugin: 0 findings (no issues)
- ✅ codenameone-maven-plugin: 0 findings (no issues)
- ✅ core-unittests: 0 findings (no issues)
- ✅ ios: 0 findings (no issues)
- ✅ javac: 0 findings (no issues)
- ✅ project-model: 0 findings (no issues)
✅ PMD: 0 findings (no issues) [Report archive]
✅ Checkstyle: 0 findings (no issues) [Report archive]

Generated automatically by the PR CI workflow.

…ack; add test headers; calibrate JS size Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-21T07:56:33Z

@codex review

shai-almog · 2026-10-21T07:56:50Z

Native fidelity (iOS Modern, Metal)

68 pairs compared -- median 95.0%, worst 83.5% (Tabs_normal_dark), 25th pct 92.5%, mean 94.6%.

Distribution -- >=99%: 3 | 95-99%: 31 | 90-95%: 29 | <90%: 5

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	vs base	Geometry
Tabs	normal	dark	glass	83.5%	0.884	11.66	0.0	ok
Tabs	normal	light	glass	86.4%	0.896	8.00	0.0	ok
Toolbar	normal	light	glass	87.6%	0.951	4.24	0.0	ok
Toolbar	normal	dark	glass	87.7%	0.950	3.69	0.0	ok
Button	pressed	dark	glass	89.9%	0.958	4.21	0.0	OFF (off 12px, w 1.10)
TextField	normal	light	normal	90.0%	0.958	2.78	-0.4	ok
Spinner	normal	dark	normal	90.8%	0.881	3.39	-0.7	ok
TextField	disabled	light	normal	91.1%	0.962	2.24	-0.2	ok
Spinner	normal	light	normal	91.6%	0.910	4.11	-0.2	ok
RaisedButton	disabled	light	glass	91.8%	0.961	3.09	+0.2	ok
Button	normal	dark	glass	91.8%	0.958	3.52	0.0	OFF (off 12px, w 1.10)
Slider	disabled	dark	normal	92.1%	0.943	2.45	-0.3	ok
Switch	selected	light	normal	92.1%	0.981	1.47	0.0	ok
CheckBox	normal	light	normal	92.2%	0.994	0.68	0.0	ok
RadioButton	normal	light	normal	92.2%	0.994	0.68	0.0	ok
FlatButton	normal	dark	glass	92.2%	0.983	2.21	+4.3	ok
Button	normal	light	glass	92.4%	0.961	3.65	0.0	OFF (off 12px, w 1.10)
Slider	normal	dark	normal	92.5%	0.944	2.63	-0.2	ok
RaisedButton	disabled	dark	glass	92.7%	0.965	2.72	+1.3	ok
CheckBox	disabled	light	normal	92.7%	0.995	0.50	0.0	ok
RadioButton	disabled	light	normal	92.7%	0.995	0.50	0.0	ok
Button	pressed	light	glass	92.9%	0.962	3.29	0.0	OFF (off 12px, w 1.10)
FlatButton	pressed	dark	glass	92.9%	0.985	1.26	+2.3	ok
TabsGeom	normal	dark	normal	93.0%	0.892	8.75	0.0	ok
TabsGeom	normal	light	normal	93.0%	0.886	7.09	0.0	ok
FlatButton	pressed	light	glass	93.2%	0.982	1.90	+4.3	ok
Button	disabled	dark	glass	93.5%	0.962	2.47	0.0	OFF (off 12px, w 1.10)
Slider	disabled	light	normal	94.0%	0.963	1.75	-0.1	OFF (h 4.50)
FlatButton	normal	light	glass	94.2%	0.983	1.79	+1.3	ok
Button	disabled	light	glass	94.4%	0.964	2.36	0.0	OFF (off 12px, w 1.10)
RaisedButton	pressed	dark	glass	94.6%	0.965	2.07	+1.5	ok
RaisedButton	normal	dark	glass	94.6%	0.966	2.08	+1.7	ok
RaisedButton	pressed	light	glass	94.8%	0.967	2.22	+2.0	ok
RadioButton	selected	light	normal	94.8%	0.992	0.86	0.0	ok
RaisedButton	normal	light	glass	95.0%	0.967	2.19	+2.4	ok
Slider	normal	light	normal	95.1%	0.959	1.56	0.0	ok
Switch	normal	light	normal	95.5%	0.986	0.70	0.0	ok
CheckBox	disabled	dark	normal	95.8%	0.993	0.25	0.0	ok
RadioButton	disabled	dark	normal	95.8%	0.993	0.25	0.0	ok
CheckBox	selected	light	normal	95.8%	0.994	0.67	0.0	ok
Switch	selected	dark	normal	95.9%	0.985	1.02	0.0	ok
Switch	disabled	light	normal	96.4%	0.990	0.53	0.0	ok
CheckBox	normal	dark	normal	96.5%	0.993	0.35	0.0	ok
RadioButton	normal	dark	normal	96.5%	0.993	0.35	0.0	ok
GlassPanelPhoto	normal	light	glass	96.7%	0.980	7.95	+0.6	ok
GlassPanelPhoto	normal	dark	glass	96.8%	0.983	8.78	+0.6	ok
TabOne	normal	dark	normal	96.8%	0.953	4.44	+0.7	ok
Switch	normal	dark	normal	96.8%	0.986	0.82	0.0	ok
RadioButton	selected	dark	normal	96.8%	0.991	0.57	0.0	ok
TextField	normal	dark	normal	96.9%	0.949	3.30	-0.2	ok
TextField	disabled	dark	normal	97.2%	0.953	2.37	-0.2	ok
ProgressBar	normal	dark	normal	97.5%	0.997	0.60	+3.0	ok
TabOne	normal	light	normal	97.5%	0.961	2.90	+1.9	ok
ProgressBar	normal	light	normal	97.6%	0.999	0.61	+2.2	ok
CheckBox	selected	dark	normal	97.8%	0.993	0.38	0.0	ok
Dialog	normal	dark	normal	97.9%	0.961	1.38	+0.9	ok
Dialog	normal	light	normal	98.0%	0.963	1.42	+0.9	ok
Switch	disabled	dark	normal	98.0%	0.987	0.41	+2.5	ok
GlassIcon	normal	dark	normal	98.6%	0.984	3.55	0.0	ok
GlassText	normal	dark	normal	98.6%	0.985	3.48	0.0	ok
GlassIcon	normal	light	normal	98.7%	0.986	3.54	0.0	ok
GlassText	normal	light	normal	98.7%	0.987	3.54	0.0	ok
GlassPanelGrad	normal	light	normal	98.9%	0.994	4.38	+0.7	ok
GlassPanelGrad	normal	dark	normal	99.0%	0.993	3.84	+0.5	ok
GlassPanelGrey	normal	dark	normal	99.0%	0.992	3.30	+0.6	ok
GlassPanelGrey	normal	light	normal	99.1%	0.994	3.29	+0.7	ok
GlassPanelRed	normal	dark	normal	99.1%	0.993	3.22	+0.5	ok
GlassPanelRed	normal	light	normal	99.1%	0.994	3.49	+0.7	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
Button	pressed	dark	+0,+0	1.104	1.000	11.5	45.4 -> 45.3
Button	normal	dark	+0,+0	1.104	1.000	11.5	45.8 -> 45.2
Button	normal	light	+0,+0	1.104	1.000	11.5	44.5 -> 45.3
Button	pressed	light	+0,+0	1.104	1.000	11.5	48.1 -> 45.4
Button	disabled	dark	+0,+0	1.104	1.000	11.5	45.1 -> 45.2
Button	disabled	light	+0,+0	1.104	1.000	11.5	44.0 -> 45.3
TabOne	normal	dark	-3,+0	1.007	0.948	4.9	80.3 -> 77.3
TabOne	normal	light	-3,+0	1.007	0.948	4.9	79.1 -> 77.0
Toolbar	normal	light	+4,+7	0.987	0.926	3.5	62.5 -> 56.1
Toolbar	normal	dark	+4,+7	0.987	0.919	3.2	60.5 -> 55.5
Switch	selected	light	+0,+0	1.028	1.026	2.7	-
RaisedButton	disabled	dark	+0,+0	1.024	1.011	2.6	49.8 -> 46.1
Slider	disabled	light	+0,-29	1.000	4.500	2.5	-
CheckBox	disabled	light	+1,-3	1.000	1.023	2.2	-
RadioButton	disabled	light	+1,-3	1.000	1.023	2.2	-
CheckBox	disabled	dark	+1,-3	1.000	1.023	2.2	-
RadioButton	disabled	dark	+1,-3	1.000	1.023	2.2	-
RaisedButton	disabled	light	+0,+0	1.019	1.011	2.1	54.1 -> 96.6
RaisedButton	pressed	dark	+0,+0	1.019	1.011	2.1	44.5 -> 44.3
RaisedButton	normal	dark	+0,+0	1.019	1.011	2.1	44.4 -> 44.3
RaisedButton	pressed	light	+0,+0	1.019	1.011	2.1	44.7 -> 44.3
RaisedButton	normal	light	+0,+0	1.019	1.011	2.1	44.5 -> 44.1
Switch	normal	light	+0,+0	1.023	1.013	2.1	-
Switch	disabled	light	+0,+0	1.023	1.013	2.1	-
Switch	normal	dark	+0,+0	1.023	1.013	2.1	-
Switch	disabled	dark	+0,+0	1.023	1.013	2.1	-
CheckBox	normal	dark	+0,-2	1.000	1.000	2.0	-
RadioButton	normal	dark	+0,-2	1.000	1.000	2.0	-
RadioButton	selected	dark	+0,-2	1.000	1.000	2.0	-
CheckBox	selected	dark	+0,-2	1.000	1.000	2.0	-
Tabs	normal	dark	+9,+0	0.973	1.012	1.8	79.7 -> 80.7
Tabs	normal	light	+9,+0	0.973	1.012	1.8	79.2 -> 80.3
TabsGeom	normal	dark	+9,+0	0.973	1.012	1.8	80.5 -> 80.9
TabsGeom	normal	light	+9,+0	0.973	1.012	1.8	79.3 -> 80.6
FlatButton	normal	dark	+4,+0	0.966	1.011	1.6	91.8 -> 95.7
FlatButton	pressed	dark	+4,+0	0.966	1.011	1.6	95.3 -> 97.9
Switch	selected	dark	+0,+0	1.017	1.013	1.6	-
CheckBox	normal	light	+0,-2	1.000	1.011	1.5	-
RadioButton	normal	light	+0,-2	1.000	1.011	1.5	-
RadioButton	selected	light	+0,-2	1.000	1.011	1.5	-
CheckBox	selected	light	+0,-2	1.000	1.011	1.5	-
Spinner	normal	light	+11,-9	0.978	1.055	1.1	-
GlassIcon	normal	dark	+0,+1	0.999	1.000	1.1	92.1 -> 91.5
GlassText	normal	dark	+0,+1	0.999	1.000	1.1	92.1 -> 91.5
Spinner	normal	dark	+12,-9	0.977	1.055	1.0	-
GlassPanelGrey	normal	dark	+0,+1	1.000	1.000	1.0	26.4 -> 26.9
TextField	disabled	light	+0,+1	0.999	0.996	0.7	13.9 -> 38.7
FlatButton	normal	light	+0,+0	0.993	1.011	0.7	91.9 -> 51.8
Slider	disabled	dark	+0,-1	1.000	1.015	0.5	-
FlatButton	pressed	light	+1,+0	0.986	1.011	0.5	95.4 -> 65.6
Slider	normal	light	+0,+1	1.000	0.964	0.5	-
GlassPanelPhoto	normal	light	+0,+0	1.000	1.005	0.5	25.6 -> 31.4
GlassPanelPhoto	normal	dark	+0,+0	1.000	1.005	0.5	23.0 -> 27.0
ProgressBar	normal	dark	+0,+0	1.000	0.900	0.5	-
ProgressBar	normal	light	+0,+0	1.000	0.900	0.5	-
GlassIcon	normal	light	+0,+0	1.000	1.005	0.5	91.6 -> 92.3
GlassText	normal	light	+0,+0	1.000	1.005	0.5	91.6 -> 92.3
GlassPanelGrad	normal	light	+0,+0	1.000	1.005	0.5	22.3 -> 25.9
GlassPanelGrad	normal	dark	+1,+1	0.998	0.995	0.5	25.7 -> 22.5
GlassPanelGrey	normal	light	+0,+0	1.000	1.005	0.5	22.4 -> 26.0
GlassPanelRed	normal	dark	+1,+1	0.998	0.995	0.5	26.6 -> 22.8
GlassPanelRed	normal	light	+0,+0	1.000	1.005	0.5	22.1 -> 26.1
TextField	normal	light	+0,+0	1.000	1.000	0.0	13.4 -> 40.5
Slider	normal	dark	+0,+0	1.000	1.000	0.0	-
TextField	normal	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.1
TextField	disabled	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.9
Dialog	normal	dark	+0,+0	1.000	1.000	0.0	-
Dialog	normal	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

Tabs_normal_dark -- 83.45% fidelity (SSIM 0.8842) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_light -- 86.44% fidelity (SSIM 0.8961) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_light -- 87.64% fidelity (SSIM 0.9511) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_dark -- 87.70% fidelity (SSIM 0.9495) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_dark -- 89.93% fidelity (SSIM 0.9576) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 90.03% fidelity (SSIM 0.9576) (-0.37 vs baseline)

Left: native widget. Right: Codename One render.
Spinner_normal_dark -- 90.78% fidelity (SSIM 0.8814) (-0.69 vs baseline)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 91.13% fidelity (SSIM 0.9619) (-0.22 vs baseline)

Left: native widget. Right: Codename One render.
Spinner_normal_light -- 91.58% fidelity (SSIM 0.9099) (-0.21 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_light -- 91.76% fidelity (SSIM 0.9613) (+0.15 vs baseline)

Left: native widget. Right: Codename One render.
Button_normal_dark -- 91.84% fidelity (SSIM 0.9583) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (-0.31 vs baseline)

Left: native widget. Right: Codename One render.
Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
FlatButton_normal_dark -- 92.21% fidelity (SSIM 0.9833) (+4.25 vs baseline)

Left: native widget. Right: Codename One render.
Button_normal_light -- 92.37% fidelity (SSIM 0.9609) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (-0.22 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_dark -- 92.65% fidelity (SSIM 0.9653) (+1.25 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_light -- 92.88% fidelity (SSIM 0.9617) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_dark -- 92.90% fidelity (SSIM 0.9849) (+2.31 vs baseline)

Left: native widget. Right: Codename One render.
TabsGeom_normal_dark -- 93.02% fidelity (SSIM 0.8921) (+0.01 vs baseline)

Left: native widget. Right: Codename One render.
TabsGeom_normal_light -- 93.02% fidelity (SSIM 0.8861) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_light -- 93.20% fidelity (SSIM 0.9819) (+4.33 vs baseline)

Left: native widget. Right: Codename One render.
Button_disabled_dark -- 93.52% fidelity (SSIM 0.9618) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (-0.05 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_normal_light -- 94.18% fidelity (SSIM 0.9825) (+1.32 vs baseline)

Left: native widget. Right: Codename One render.
Button_disabled_light -- 94.35% fidelity (SSIM 0.9636) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_dark -- 94.56% fidelity (SSIM 0.9653) (+1.46 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_normal_dark -- 94.57% fidelity (SSIM 0.9659) (+1.69 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_light -- 94.80% fidelity (SSIM 0.9665) (+2.04 vs baseline)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 94.84% fidelity (SSIM 0.9916) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_light -- 95.01% fidelity (SSIM 0.9673) (+2.40 vs baseline)

Left: native widget. Right: Codename One render.
Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (-0.04 vs baseline)

Left: native widget. Right: Codename One render.
Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (+0.04 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_light -- 96.72% fidelity (SSIM 0.9804) (+0.64 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_dark -- 96.76% fidelity (SSIM 0.9832) (+0.59 vs baseline)

Left: native widget. Right: Codename One render.
TabOne_normal_dark -- 96.77% fidelity (SSIM 0.9526) (+0.73 vs baseline)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_dark -- 96.81% fidelity (SSIM 0.9908) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 96.88% fidelity (SSIM 0.9492) (-0.20 vs baseline)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 97.19% fidelity (SSIM 0.9526) (-0.15 vs baseline)

Left: native widget. Right: Codename One render.
ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (+3.03 vs baseline)

Left: native widget. Right: Codename One render.
TabOne_normal_light -- 97.51% fidelity (SSIM 0.9608) (+1.89 vs baseline)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (+2.19 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 97.79% fidelity (SSIM 0.9932) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (+0.89 vs baseline)

Left: native widget. Right: Codename One render.
Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (+0.86 vs baseline)

Left: native widget. Right: Codename One render.
Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (+2.48 vs baseline)

Left: native widget. Right: Codename One render.
GlassIcon_normal_dark -- 98.59% fidelity (SSIM 0.9841) (no change)

Left: native widget. Right: Codename One render.
GlassText_normal_dark -- 98.64% fidelity (SSIM 0.9848) (+0.05 vs baseline)

Left: native widget. Right: Codename One render.
GlassIcon_normal_light -- 98.67% fidelity (SSIM 0.9860) (no change)

Left: native widget. Right: Codename One render.
GlassText_normal_light -- 98.74% fidelity (SSIM 0.9874) (+0.05 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_light -- 98.91% fidelity (SSIM 0.9935) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_dark -- 98.98% fidelity (SSIM 0.9928) (+0.55 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrey_normal_dark -- 98.99% fidelity (SSIM 0.9917) (+0.57 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrey_normal_light -- 99.05% fidelity (SSIM 0.9936) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_dark -- 99.09% fidelity (SSIM 0.9926) (+0.52 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_light -- 99.10% fidelity (SSIM 0.9939) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9f29350df1

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

shai-almog · 2026-10-21T08:14:26Z

Compared 185 screenshots: 185 matched.
Native Linux port (x64), GTK3/Cairo/Pango, ParparVM bytecode-to-C (no JVM): the hellocodenameone screenshot suite rendered by a native ELF built + run on the GitHub x64 runner. Baseline: scripts/linux/screenshots.

ParparVM vs HotSpot (JDK 25): Linux x64

Runner CPU: AMD EPYC 7763 64-Core Processor (baseline linux-x64@amd-epyc-7763-64-core-processor)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 20% (time) / 25% (RAM) above its baseline in vm/selfhost/perf-baseline/ is a regression and fails; one that far below is an improvement, reported but not failed (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (LinuxHelloMain)	4	0.83x (base 0.85x, -2.2%)	0.89x (base 1.02x, -13.0%)	ok
translator (self)	4	0.55x (base 0.50x, +10.1%)	0.46x (base 0.52x, -10.5%)	ok
intArithmetic	4	1.14x (base 1.12x, +2.4%)	0.07x (base 0.06x, +32.0%)	ok
longArithmetic	4	1.08x (base 1.08x, +0.0%)	0.07x (base 0.05x, +37.8%)	ok
mathTranscendental	4	1.09x (base 1.08x, +0.4%)	0.07x (base 0.07x, +0.6%)	ok
arraySequential	4	1.99x (base 2.00x, -0.5%)	0.36x (base 0.36x, -0.4%)	ok
arrayRandom	4	0.99x (base 0.91x, +9.1%)	0.22x (base 0.21x, +8.6%)	ok
objectAllocation	4	1.59x (base 1.65x, -3.6%)	0.32x (base 0.37x, -14.1%)	ok
valueEscape	4	0.10x (base 0.10x, -0.3%)	0.04x (base 0.04x, -3.1%)	ok
hashMapChurn	4	1.49x (base 1.48x, +0.2%)	0.09x (base 0.09x, -0.9%)	ok
stringBuilding	4	1.39x (base 1.39x, +0.1%)	0.26x (base 0.26x, +0.1%)	ok
recursion	4	1.19x (base 1.25x, -5.2%)	0.06x (base 0.08x, -26.4%)	ok
quicksort	4	1.11x (base 1.07x, +3.4%)	0.11x (base 0.11x, -1.6%)	ok

Result: no regression

shai-almog · 2026-10-21T08:14:32Z

Compared 185 screenshots: 185 matched.
Native Linux port (arm64), GTK3/Cairo/Pango, ParparVM bytecode-to-C (no JVM): the hellocodenameone screenshot suite rendered by a native ELF built + run on the GitHub arm64 runner. Baseline: scripts/linux/screenshots-arm.

ParparVM vs HotSpot (JDK 25): Linux arm64

Runner CPU: Neoverse-N2 (baseline linux-arm64@neoverse-n2)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 20% (time) / 25% (RAM) above its baseline in vm/selfhost/perf-baseline/ is a regression and fails; one that far below is an improvement, reported but not failed (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (LinuxHelloMain)	4	0.93x (base 1.02x, -8.9%)	0.76x (base 0.93x, -19.0%)	ok
translator (self)	4	0.70x (base 0.70x, +0.2%)	0.48x (base 0.51x, -6.1%)	ok
intArithmetic	4	1.05x (base 1.04x, +0.0%)	0.03x (base 0.03x, -1.5%)	ok
longArithmetic	4	0.79x (base 0.79x, -0.3%)	0.03x (base 0.03x, +2.6%)	ok
mathTranscendental	4	1.10x (base 1.10x, -0.1%)	0.03x (base 0.03x, +1.8%)	ok
arraySequential	4	0.34x (base 0.36x, -4.9%)	0.37x (base 0.37x, +0.2%)	ok
arrayRandom	4	0.93x (base 0.94x, -0.3%)	0.20x (base 0.20x, -0.3%)	ok
objectAllocation	4	1.86x (base 1.77x, +5.2%)	0.36x (base 0.38x, -4.0%)	ok
valueEscape	4	0.51x (base 0.51x, -0.1%)	0.03x (base 0.03x, -0.4%)	ok
hashMapChurn	4	0.85x (base 0.84x, +0.7%)	0.11x (base 0.12x, -5.6%)	ok
stringBuilding	4	1.39x (base 1.57x, -11.3%)	0.27x (base 0.26x, +1.6%)	ok
recursion	4	1.41x (base 1.43x, -1.5%)	0.03x (base 0.04x, -3.9%)	ok
quicksort	4	1.00x (base 0.99x, +0.7%)	0.09x (base 0.09x, +0.6%)	ok

Result: no regression

…ine a one-run Windows recursion row Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-21T08:34:06Z

@codex review

chatgpt-codex-connector · 2026-10-21T08:36:47Z

Codex Review: Didn't find any major issues. 🚀

Reviewed commit: 392c9fbfc9

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

shai-almog and others added 2 commits October 21, 2026 07:27

chatgpt-codex-connector Bot reviewed Oct 21, 2026

View reviewed changes

Comment thread scripts/common/java/ProcessScreenshots.java Outdated

Comment thread CodenameOne/src/com/codename1/io/NetworkManager.java

Address review: release a dead worker's request; keep backfill for go…

da59086

…ldens the spec does not know Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 21, 2026

View reviewed changes

Comment thread vm/selfhost/tighten-perf-baseline.py Outdated

Address review: tighten only when the lowered row would flag a give-b…

9f29350

…ack; add test headers; calibrate JS size Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 21, 2026

View reviewed changes

Comment thread vm/selfhost/tighten-perf-baseline.py Outdated

Address review: judge the rounded baseline before tightening; rebasel…

392c9fb

…ine a one-run Windows recursion row Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog merged commit ef7f655 into master Oct 21, 2026
41 of 61 checks passed

shai-almog deleted the ci-deflake-master branch October 21, 2026 08:41

Conversation

shai-almog commented Oct 21, 2026

Uh oh!

shai-almog commented Oct 21, 2026

Uh oh!

chatgpt-codex-connector Bot commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Codex Review Summary

Uh oh!

chatgpt-codex-connector Bot left a comment

Choose a reason for hiding this comment

💡 Codex Review

Uh oh!

Uh oh!

Uh oh!

github-actions Bot commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Flutter vs Codename One

javascript

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

github-actions Bot commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

shai-almog commented Oct 21, 2026

Uh oh!

chatgpt-codex-connector Bot left a comment

Choose a reason for hiding this comment

💡 Codex Review

Uh oh!

Uh oh!

github-actions Bot commented Oct 21, 2026

Cloudflare Preview

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native fidelity (Android, Material 3)

Side-by-side comparisons (worst first)

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native Android coverage

Native Android coverage

Benchmark Results

Detailed Performance Metrics

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native fidelity (ios-27-metal)

Side-by-side comparisons (worst first)

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Benchmark Results

Detailed Performance Metrics

ParparVM vs HotSpot (JDK 25): Windows x64

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Benchmark Results

Detailed Performance Metrics

Uh oh!

github-actions Bot commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

✅ Continuous Quality Report

Test & Coverage

Static Analysis

Uh oh!

shai-almog commented Oct 21, 2026

Uh oh!

shai-almog commented Oct 21, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native fidelity (iOS Modern, Metal)

Side-by-side comparisons (worst first)

Uh oh!

chatgpt-codex-connector Bot commented Oct 21, 2026 •

edited

Loading

github-actions Bot commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

github-actions Bot commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

github-actions Bot commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading

shai-almog commented Oct 21, 2026 •

edited

Loading
